# A journey into Convolutional Neural Network visualization
*Francesco Saverio Zuppichini*
There is one famous urban legend about computer vision. Around the 80s, the US military wanted to use neural networks to automatically detect camouflaged enemy tanks. They took a number of pictures of trees without tanks and then pictures with the same trees with tanks behind them.
The results were impressive. So impressive that the army wanted to be sure the net had correctly generalized. They took new pictures of woods with and without tanks and they showed them again to the network. This time, the model performed terribly, it was not able to discriminate between pictures with tanks behind woods and just trees.It turned out that all the pictures without tanks were taken on a cloudy day while the ones with tanks on a sunny day! In reality, the network learns to recognize the weather, not the enemy tanks.
The source code can be found [here](https://github.com/FrancescoSaverioZuppichini/A-journey-into-Convolutional-Neural-Network-visualization-).
This article is also available as an interactive [jupyter notebook](https://github.com/FrancescoSaverioZuppichini/A-journey-into-Convolutional-Neural-Network-visualization-/blob/master/notebook.ipynb)
## Nosce te ipsum
With this article, we are going to see different techniques to *understand* what it is going on inside a Convolutional Neural Network to avoid making the same US' army mistake.
We are going to use [Pytorch](https://pytorch.org/). All the code can be found [here](https://github.com/FrancescoSaverioZuppichini/A-journey-into-Convolutional-Neural-Network-visualization-). Most of the visualizations were developed from scratch, however, some inspiration and parts were taken from [here](https://github.com/utkuozbulak/pytorch-cnn-visualizations/tree/master/src).

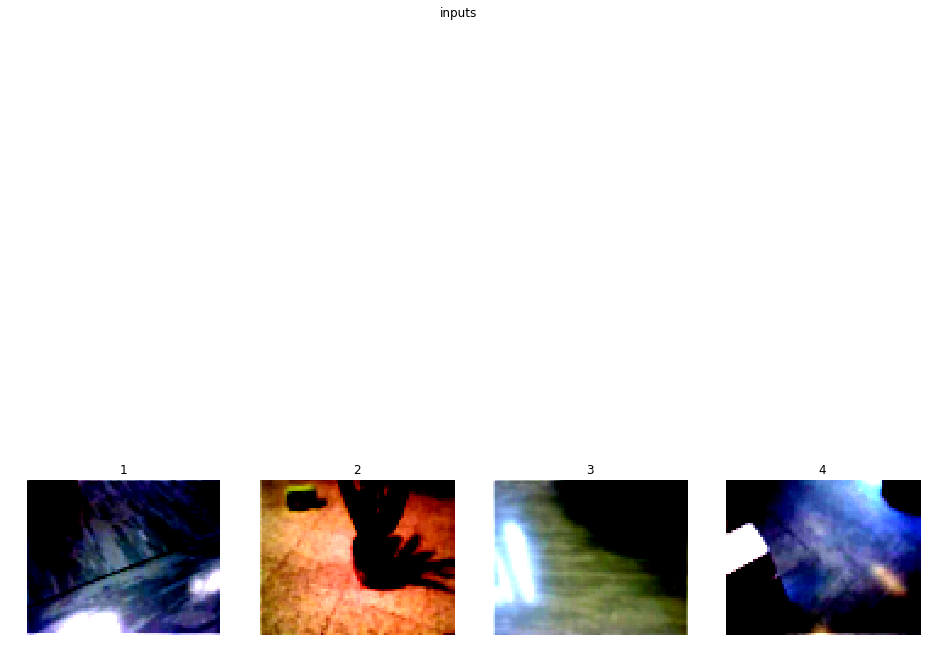

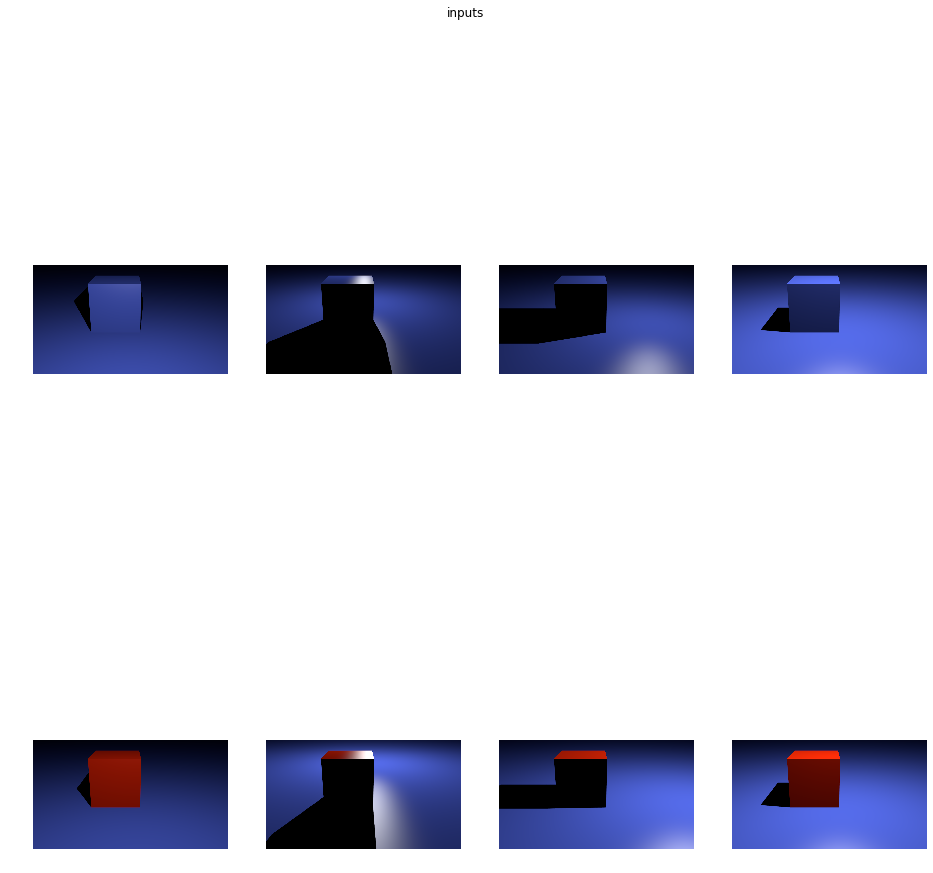

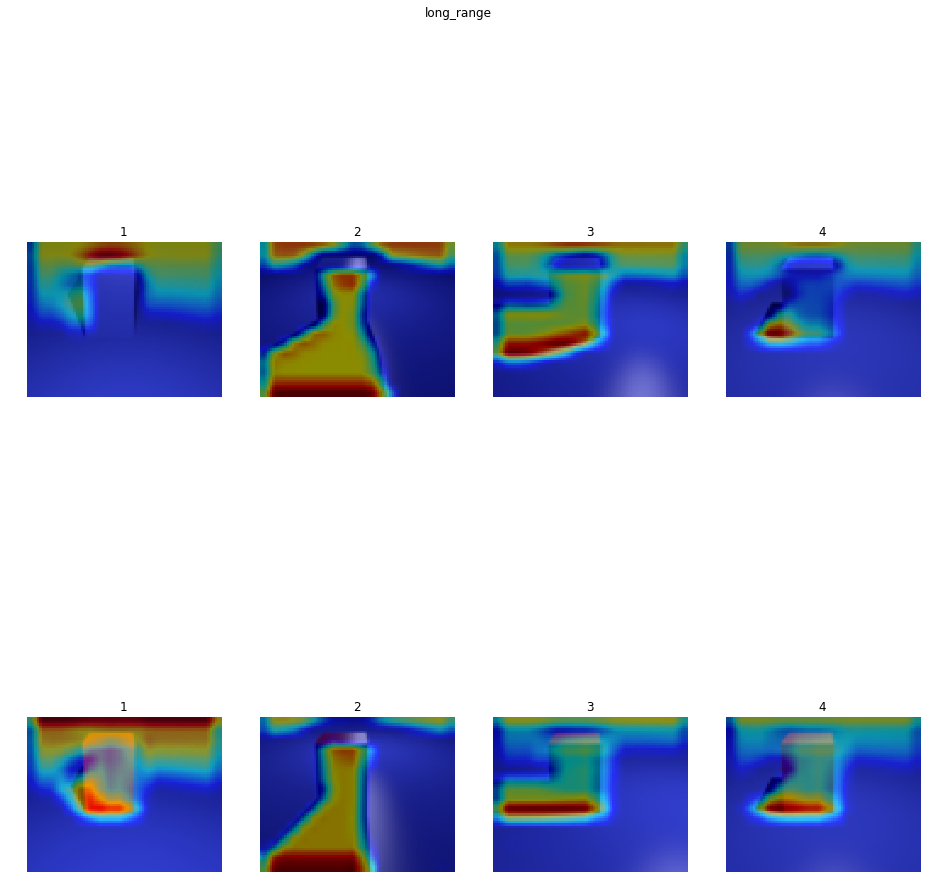

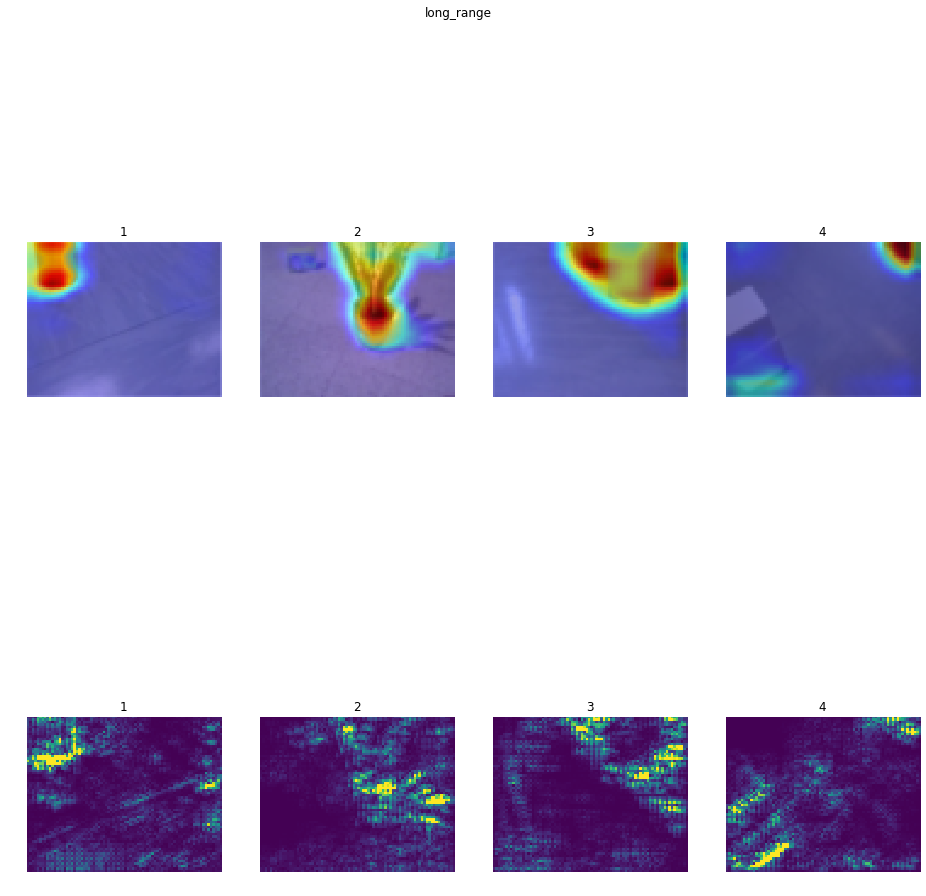

We will first introduce each technique by briefly explain it and making some example and comparison between different classic computer vision models, `alexnet`, `vgg16` and `resnet`. Then we will try to better understand a model used in robotics to predict the local distance sensor using only the frontal camera's images.
Our goal is not to explain in detail how each technique works since this is already done extremely well by each paper, but to use them to help the reader visualize different model with different inputs to better understand and highlight what and how different models react to a given input.
Later on, we show a workflow in which we utilize some of the techniques you will learn in this journey to test the robustness of a model, this is extremely useful to understand and fix its limitations.
The curious reader could further improve is understand by looking and the [source code](https://github.com/FrancescoSaverioZuppichini/A-journey-into-Convolutional-Neural-Network-visualization-/tree/master/visualization/core) for each visulization and by reading the references.
# Preambula
**Disclaimer** I am not a fan of jupyter. So apologize in advance if there are some warnings in the outputs and some figures are not well made
Let's start our journey by selecting a network. Our first model will be the old school `alexnet`. It is already available in the ` torchvision.models` package from Pytorch
```python
%load_ext autoreload
%autoreload 2
```
```python
from torchvision.models import *
from visualization.core.utils import device
model = alexnet(pretrained=True).to(device)
print(model)
```
AlexNet(
(features): Sequential(

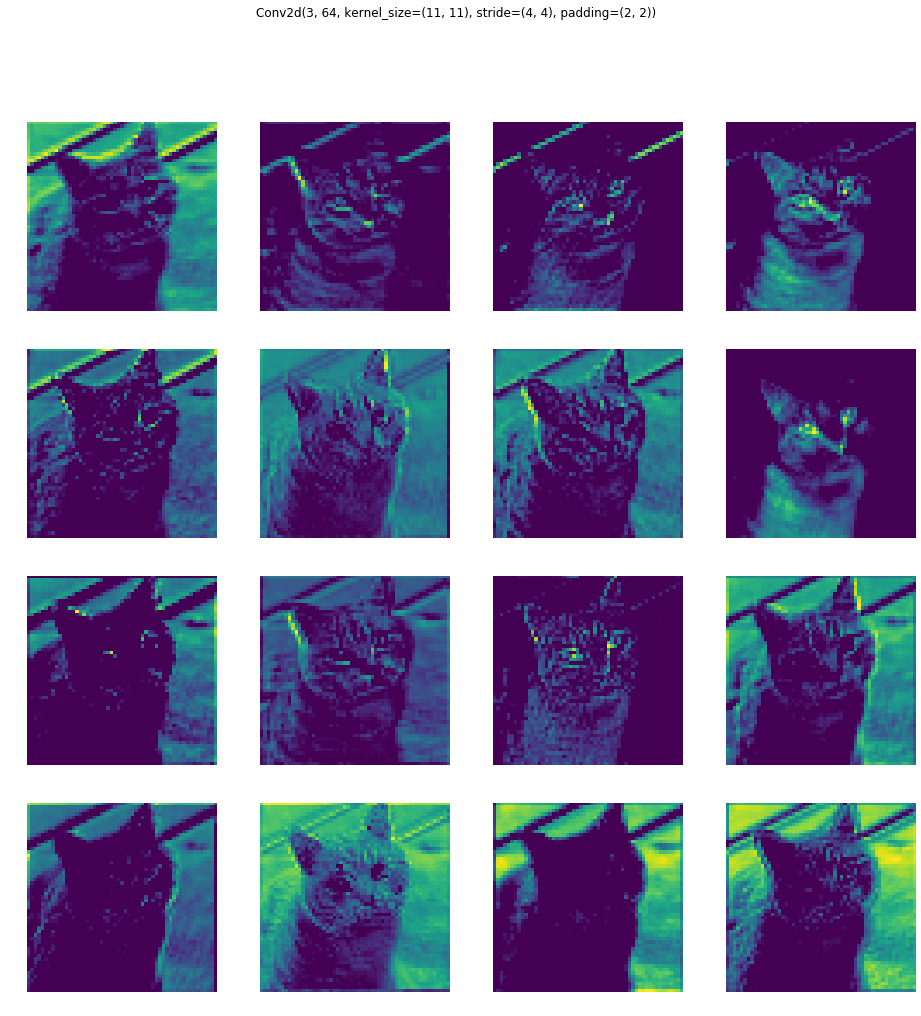

(0): Conv2d(3, 64, kernel_size=(11, 11), stride=(4, 4), padding=(2, 2))
(1): ReLU(inplace)
(2): MaxPool2d(kernel_size=3, stride=2, padding=0, dilation=1, ceil_mode=False)
(3): Conv2d(64, 192, kernel_size=(5, 5), stride=(1, 1), padding=(2, 2))
(4): ReLU(inplace)
(5): MaxPool2d(kernel_size=3, stride=2, padding=0, dilation=1, ceil_mode=False)

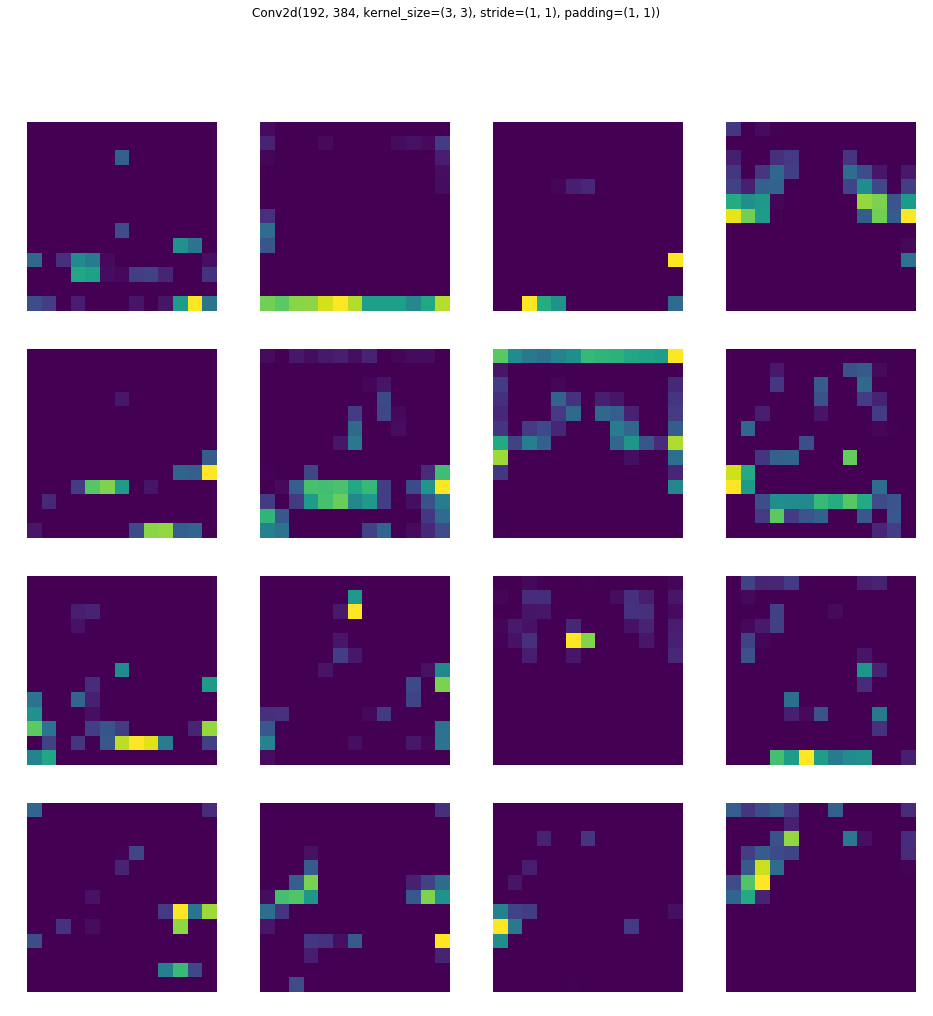

(6): Conv2d(192, 384, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(7): RExcerpt of 37,306 characters
