From the README

Open-source meeting copilot: dual-stream capture, local echo cancellation, BYOK transcription and AI.

During the call — dual-stream capture and an overlay that suggests what to say, invisible to screen share.
After the call — auto notes, structured action items, a follow-up email draft, talk ratio, export, and Ask across your meetings.
Yours — recordings and notes stay in local SQLite; transcription and AI use your API keys. Nothing goes to a Raven server.

Raven is an Electron desktop app. It captures microphone and system audio, cancels echo on your machine, transcribes You and Them on two parallel streams, and answers from the live transcript. You bring your own API keys. This build has no Raven account, no hosted backend, and no cloud session sync.

Capture, echo cancellation, SQLite history, and document RAG run locally. Microphone/system audio goes to Deepgram or AssemblyAI. Assist prompts (transcript excerpts, chat, optional screenshot, retrieved docs) go to Anthropic or OpenAI.

Download | Releases | Docs | Issues

If Raven helps you, star the repo — it's how open source travels.

Download

Prebuilt installers are on the latest GitHub Release. Enter your own API keys in Settings on first launch.

Platform	Installer
Windows 10/11 (x64)	Raven-Windows-2.4.3-Setup.exe
macOS 12+ (Apple Silicon)	Raven-Mac-2.4.3-Installer.dmg

Windows: run the setup executable. SmartScreen may warn on an unsigned OSS build — choose More info → Run anyway.

macOS: open the DMG, drag Raven to Applications, then open it. Intel Macs are not in this DMG — build from source below.

Installed copies check GitHub Releases for updates (latest.yml on Windows, latest-mac.yml on macOS). From 2.4.1, macOS self-updates in-app like Windows — Update now downloads and Restart & update installs (Macs on 2.4.0 update via the DMG one last time). The updater only offers a build when the published version is newer than the one you have. Maintainers: publishing a GitHub Release notarizes and attaches the Mac DMG — see Releasing.

Screenshots

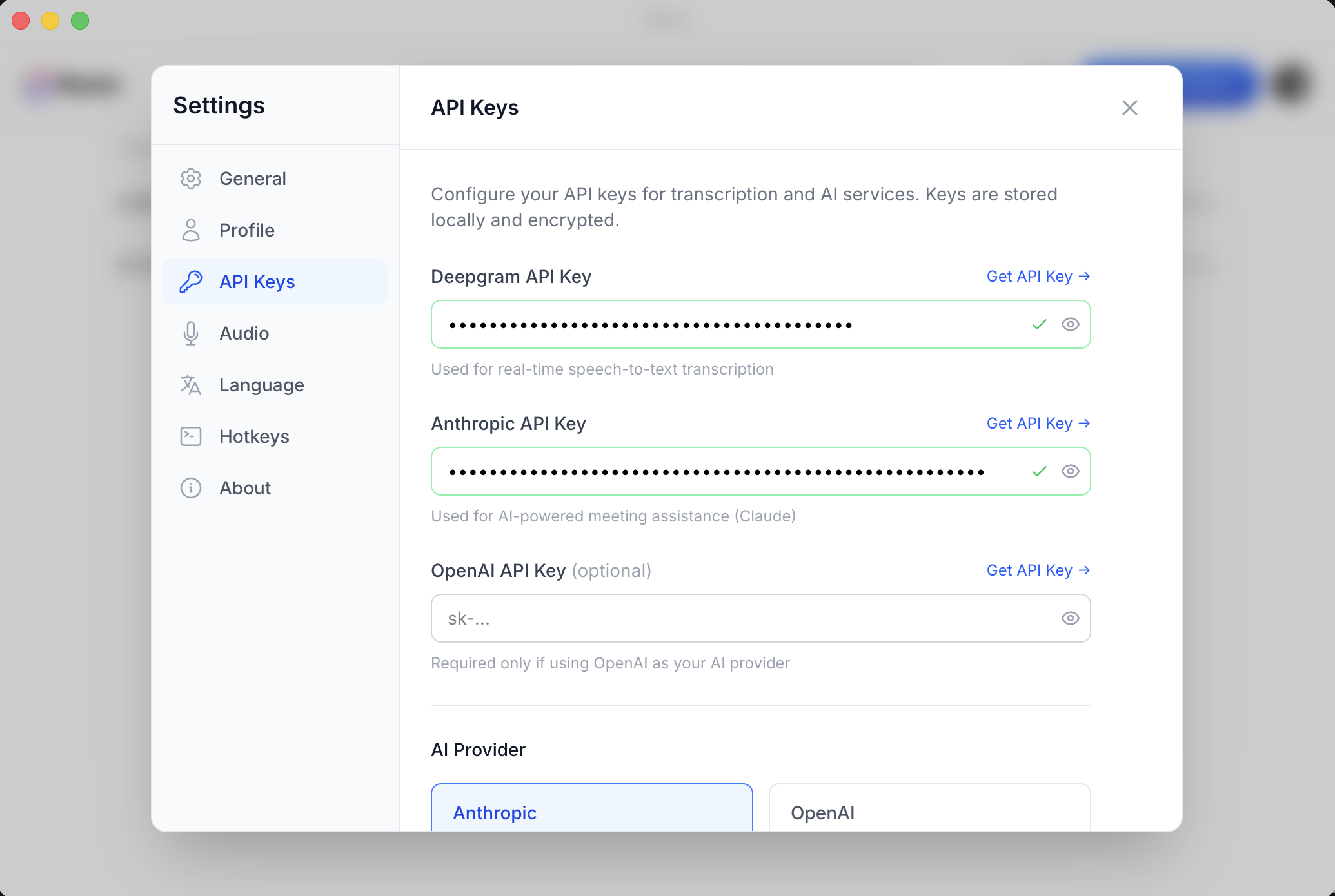

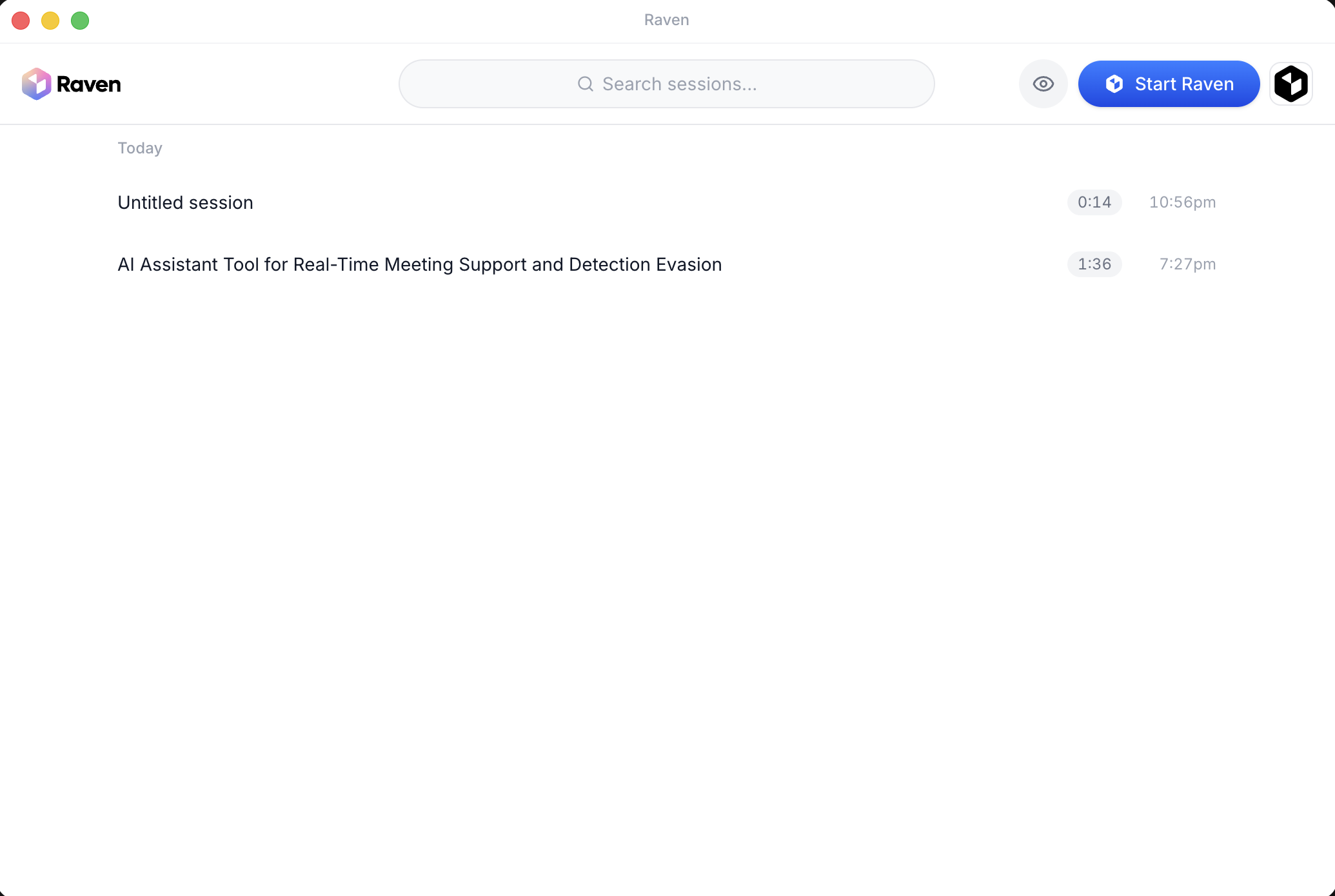

Dashboard — Session History	Settings — API Keys

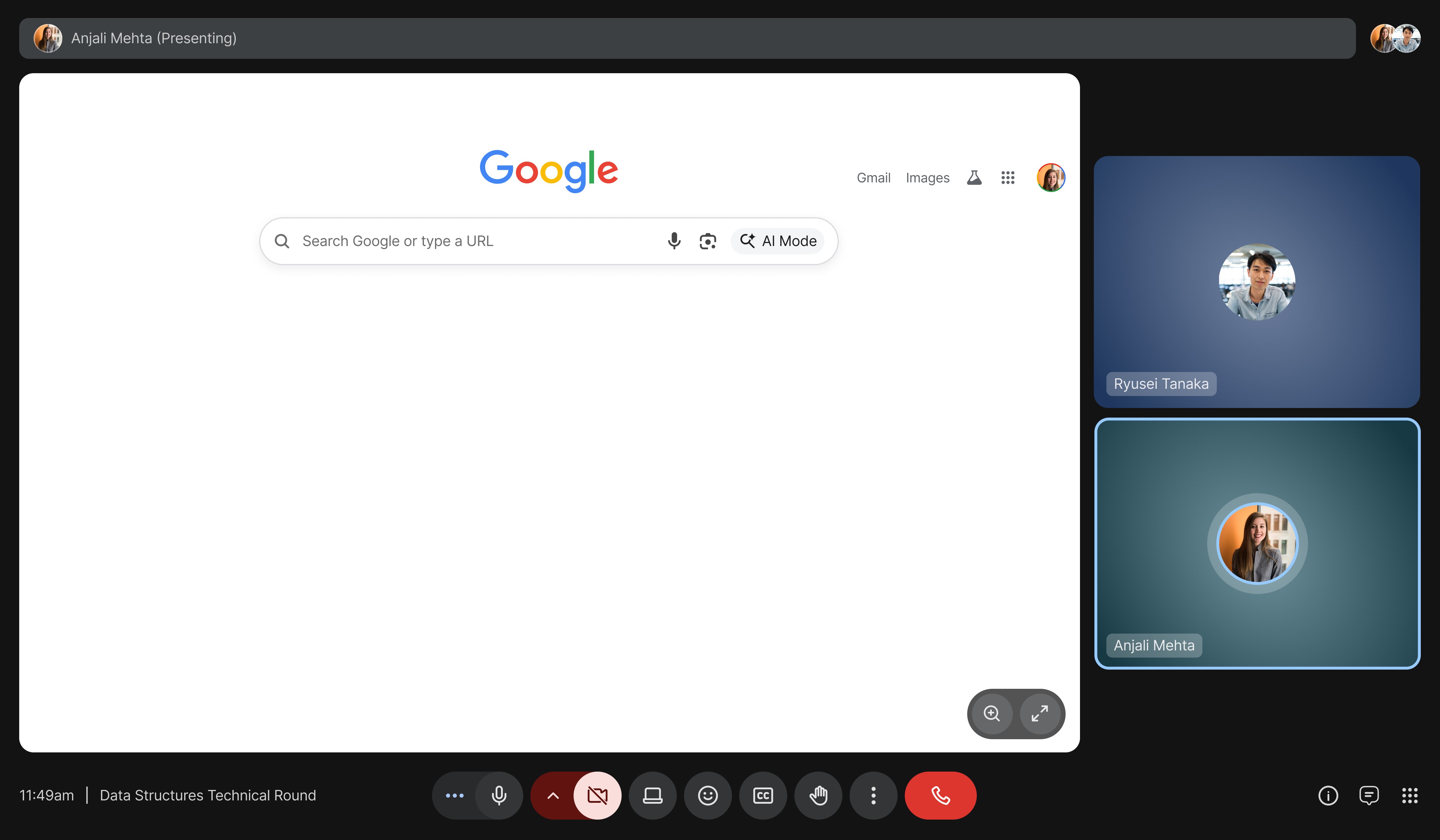

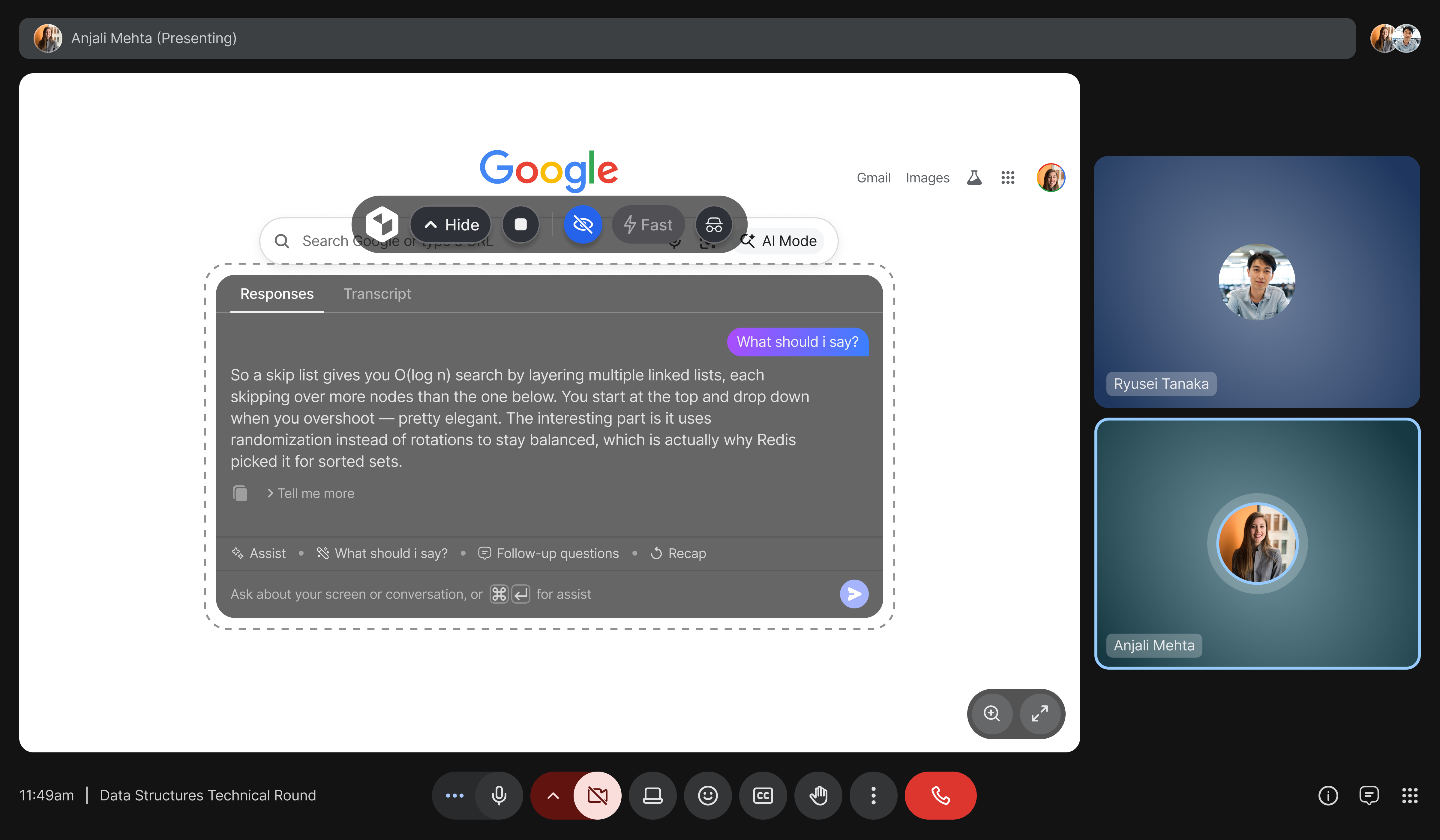

Stealth Mode OFF — Overlay visible to screen share	Stealth Mode ON — Overlay invisible to screen share

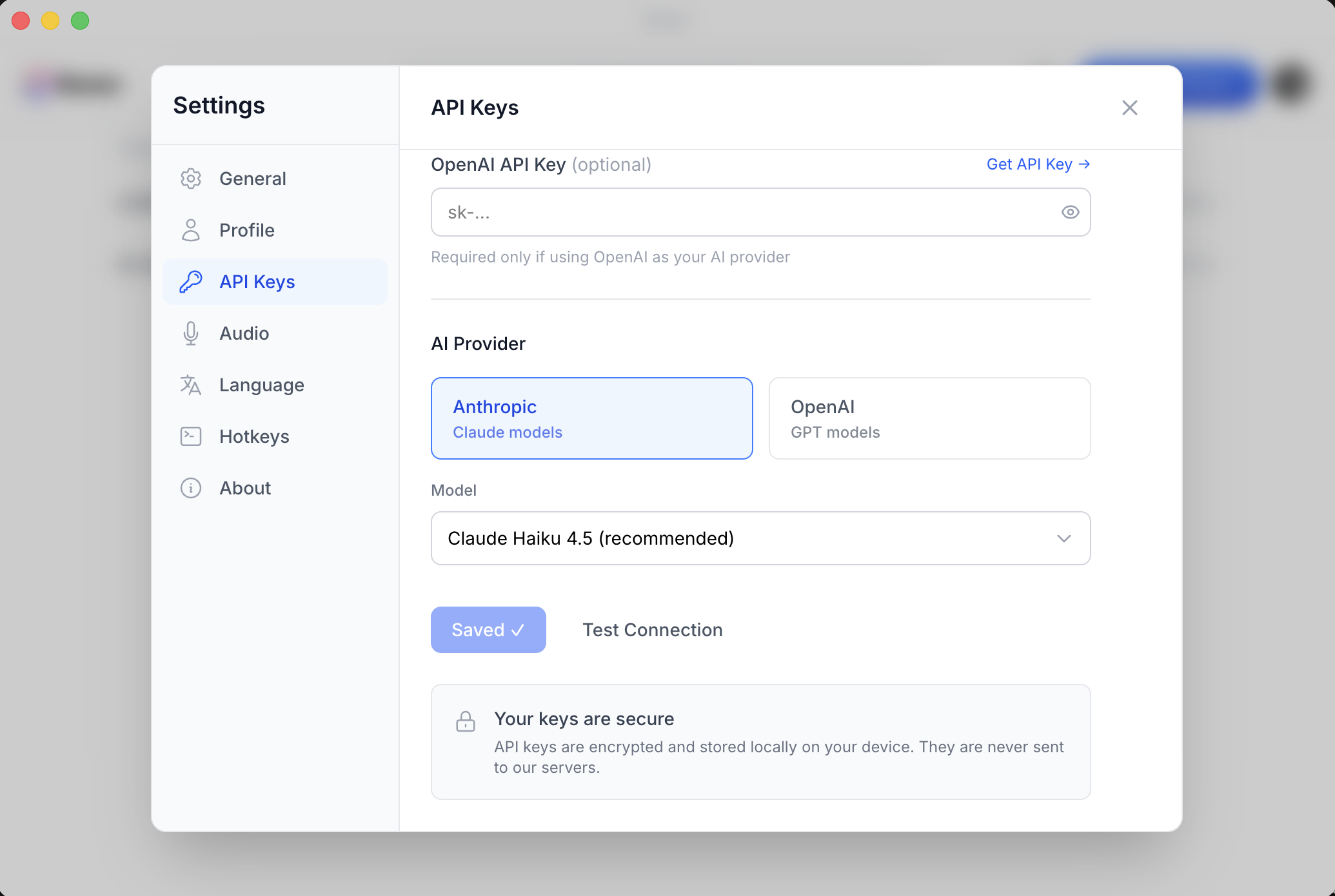

Settings — Model Selection	Onboarding — Overlay Tour

Full onboarding flow (6 steps)

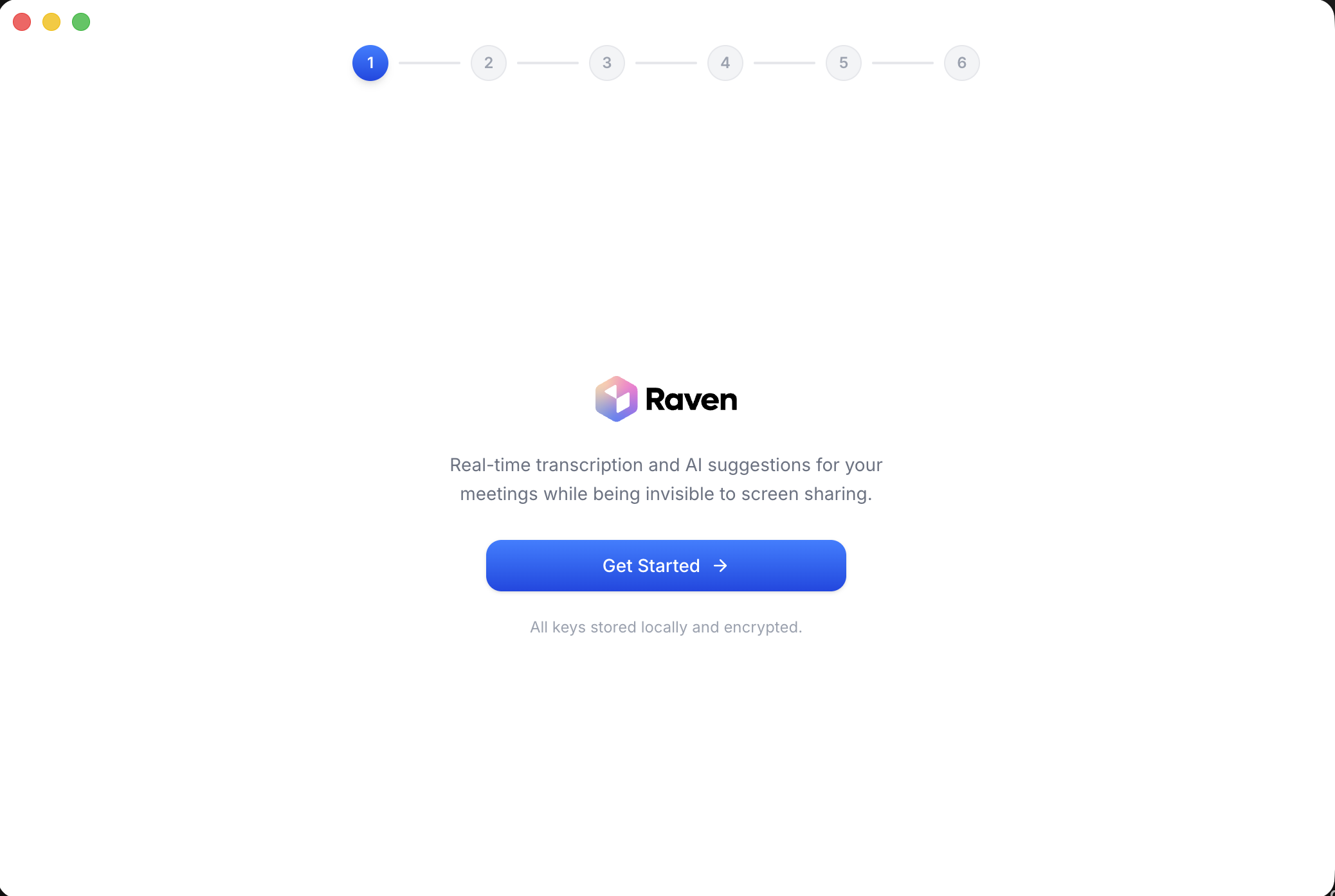

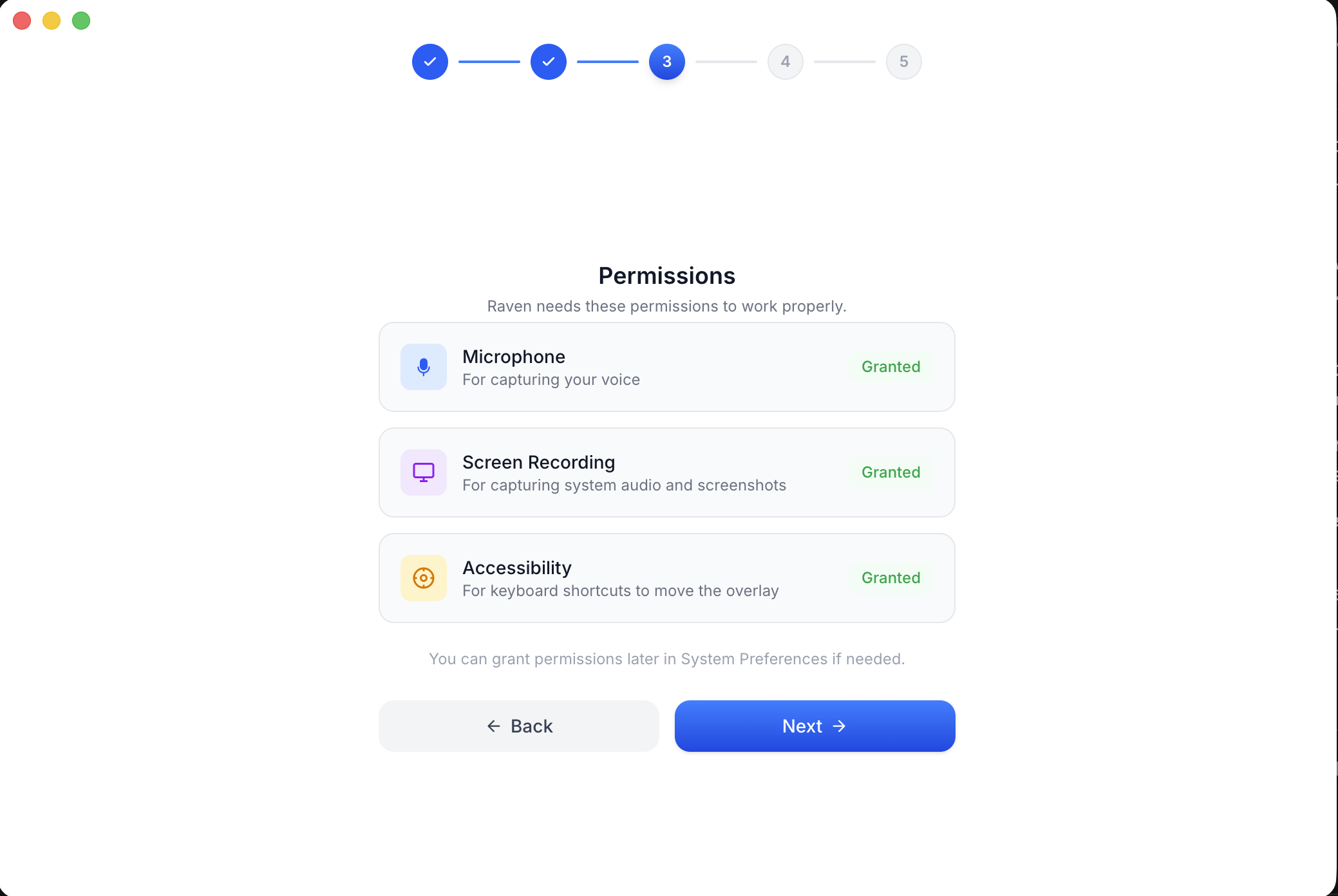

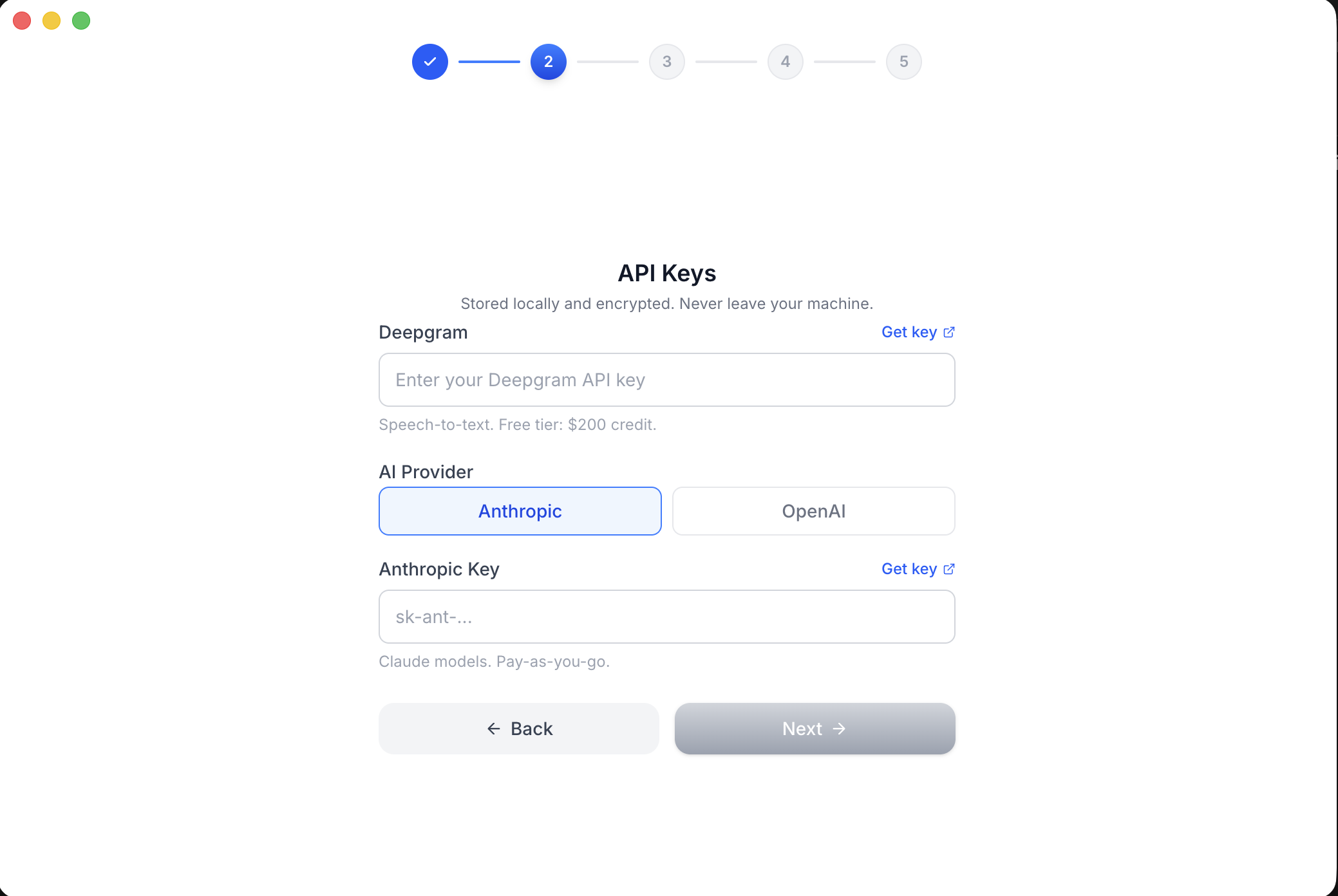

Step 1: Welcome	Step 2: API Keys	Step 3: Permissions

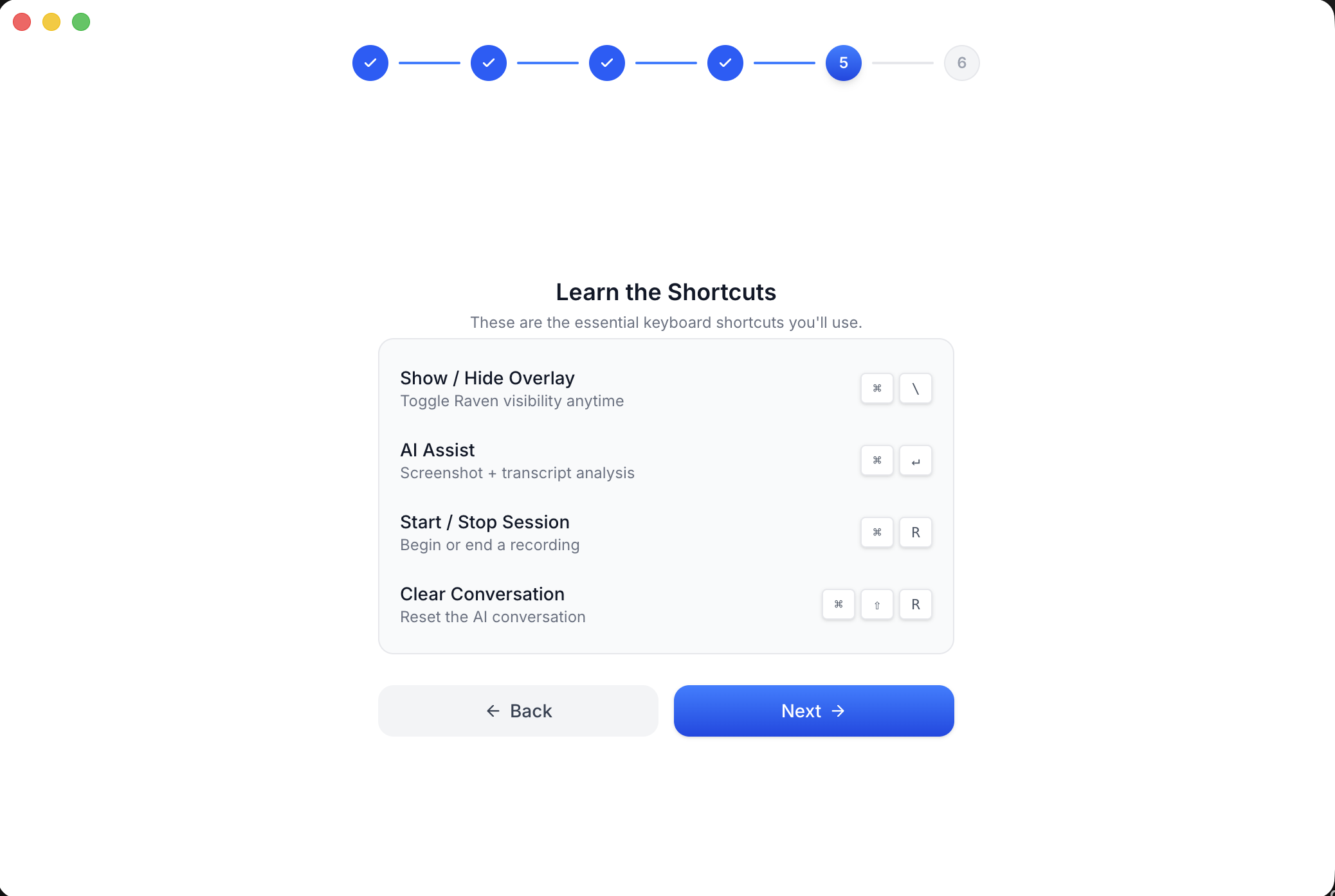

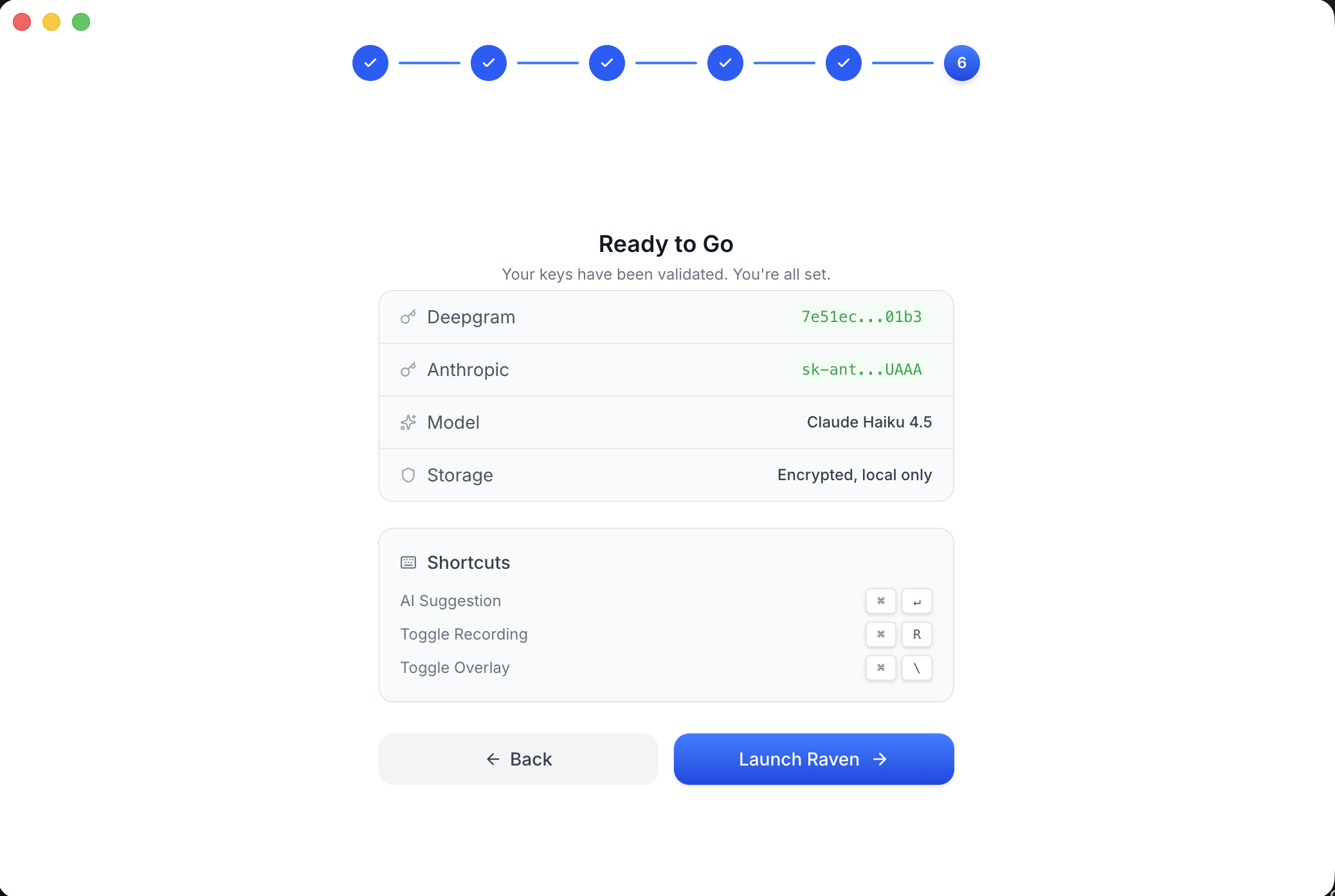

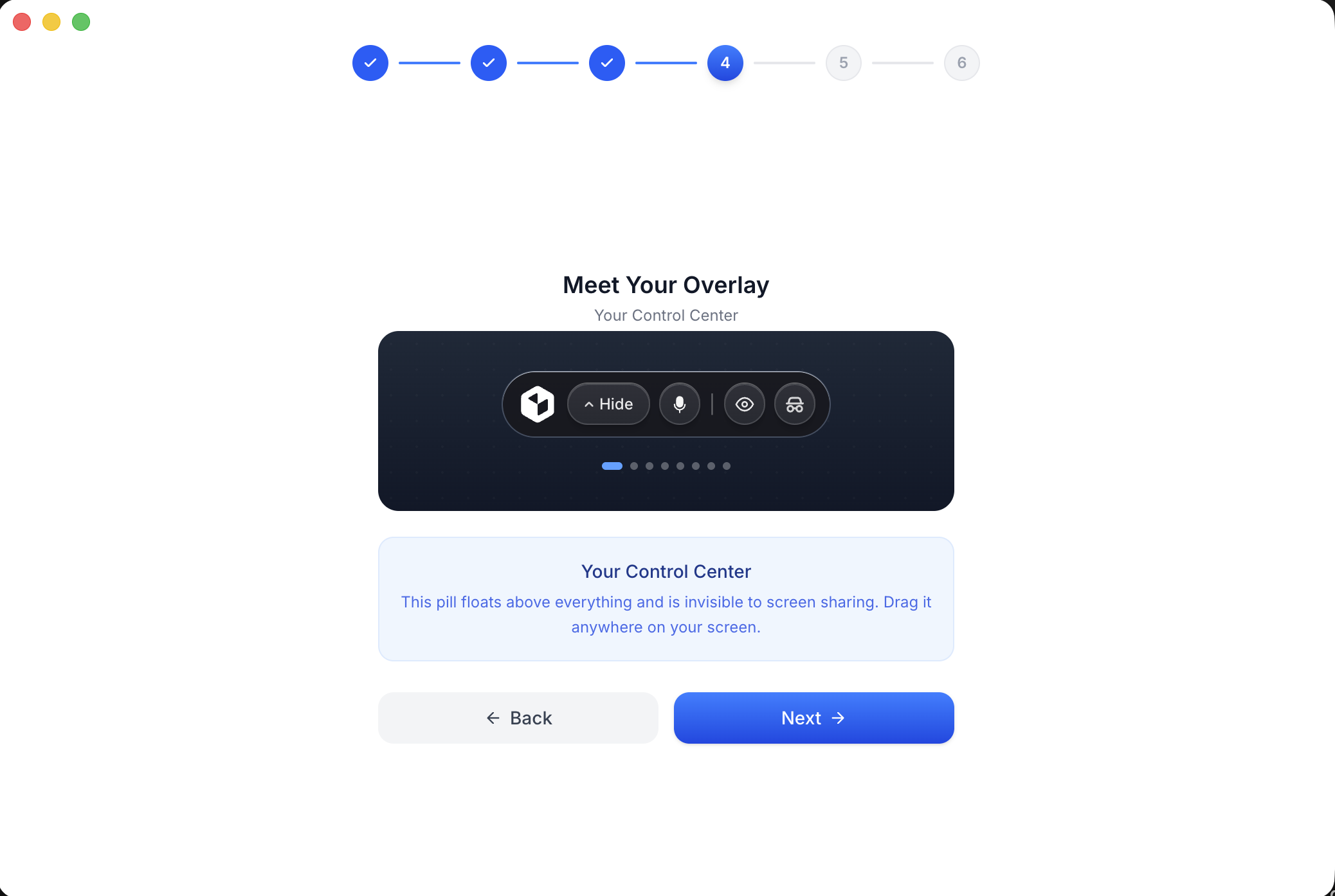

Step 4: Overlay Tour	Step 5: Shortcuts	Step 6: Ready to Go

Features

Dual-stream capture — System audio + microphone. macOS uses ScreenCaptureKit + CoreAudio; Windows uses WASAPI loopback + capture (Rust/NAPI).
Echo cancellation — GStreamer webrtcechoprobe / webrtcdsp (WebRTC AEC3), then a residual echo gate that drops mic chunks that still look like speaker bleed before they reach STT.
Real-time transcription — Two streams: You (cleaned mic) and Them (system audio). Deepgram nova-3 and/or AssemblyAI u3-rt-pro. Auto-routing prefers AssemblyAI for English, Spanish, French, German, Portuguese, and Italian when that key is present; otherwise Deepgram. Settings can force either engine.
AI assistance — Anthropic or OpenAI from the overlay (Assist, recap, follow-up, and custom prompts). Optional screenshot via desktopCapturer.
Stealth overlay — Electron setContentProtection so the overlay and dashboard are omitted from typical screen-share APIs (Zoom, Meet, Teams, Discord). Not a guarantee against every capture tool.
Modes — Local behavior profiles (system prompt, notes templates). Attach documents for RAG on that mode.
RAG (per mode, local) — Upload .txt, .md, .pdf, or .docx. Chunked and embedded on-device with Xenova/all-MiniLM-L6-v2 (@xenova/transformers). Chunks live in SQLite; the top matches are injected into the Assist system prompt. First embed may download the ~30MB model.
Session context (not long-term memory) — During a recording, Assist keeps recent turns, pins the opening transcript and your typed questions, and may compress older context with a cheap model in RAM. There is no cross-meeting user-memory profile.
Sessions — Saved locally in SQLite (transcript, overlay chat, auto title/summary). Dashboard can generate insights with your LLM key. Incognito skips SQLite persistence for that session.
Ask your meetings — A per-session Ask tab answers from that call's transcript; Ask across all meetings searches your whole history with on-device retrieval (Xenova/all-MiniLM-L6-v2) and cites the source sessions. Answers stream token-by-token; conversations are saved (one per session, plus multi-chat for the global view).
Post-call recap — Structured action items (task, owner, deadline), a one-click follow-up email draft, talk ratio (You vs. Them, word-based), and export to Markdown or PDF. All generated with your own key; nothing goes to a Raven server.
Meeting auto-start — Optionally detect a Zoom, Google Meet, Microsoft Teams (including 1:1 calls), or Webex meeting and prompt — or auto-start — a recording. No bot joins; detection just reads open window titles locally. Off / prompt / auto in Settings.
In-app updates — Windows and (from 2.4.1) macOS update in place: Update now downloads, Restart & update installs. Your keys and history are untouched.
Local settings — API keys and preferences in encrypted electron-store (raven-config.json).
Tray — Packaged builds load icons from resources/tray. On Windows 11 a new icon may start in the ^ overflow.
Profile picture editor — Crop, zoom, and pan before saving your avatar.

Live recording uses the OS default mic and playback devices. The Settings mic picker is for the in-app mic test only.

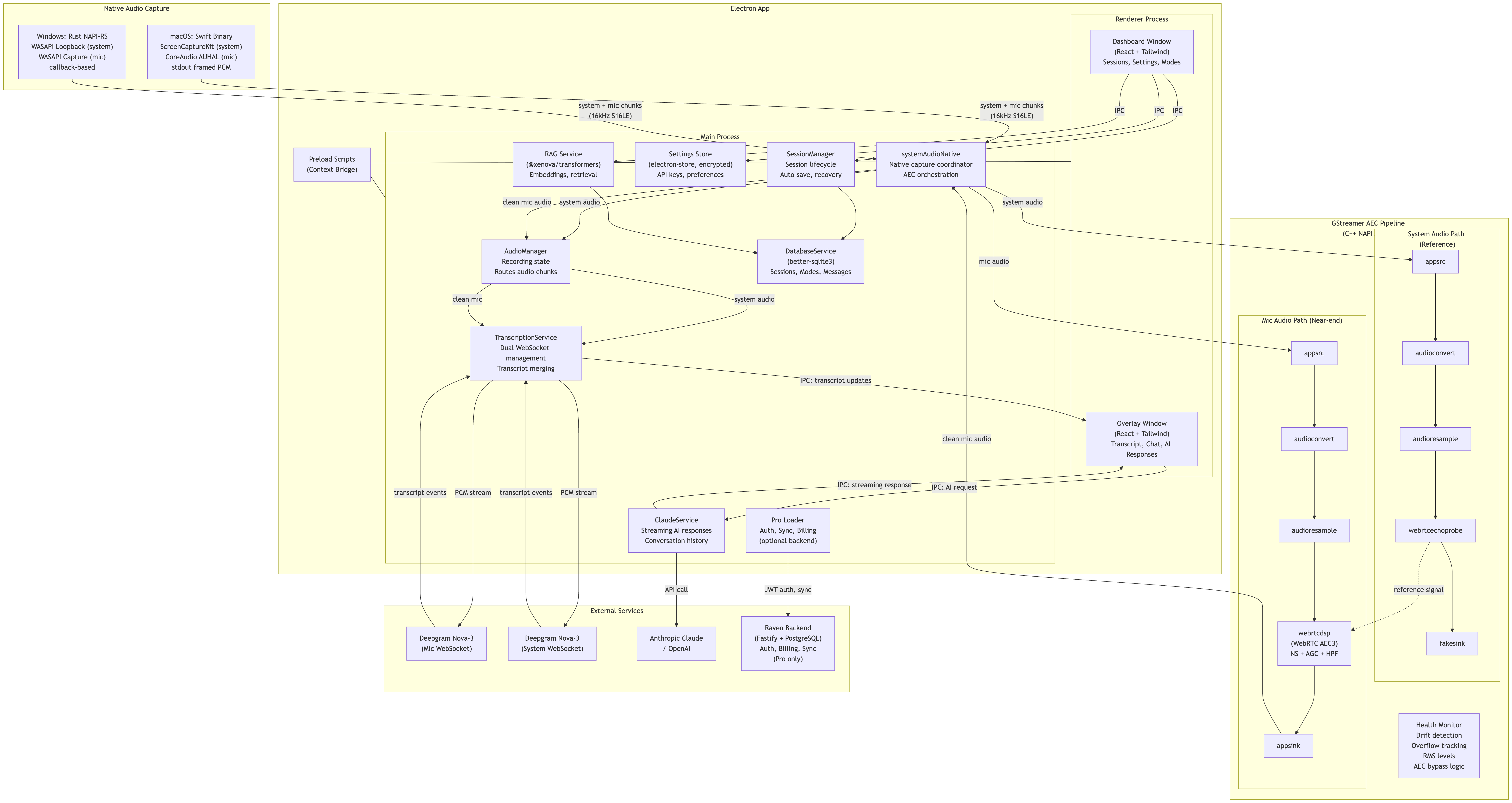

Architecture

flowchart TB
  subgraph capture [Native capture]
    Win["Windows: WASAPI loopback + capture"]
    Mac["macOS: ScreenCaptureKit + CoreAudio"]
  end

  subgraph local [Real-time on this machine]
    SAN[systemAudioNative]
    AEC["GStreamer webrtcechoprobe / webrtcdsp"]
    REG[ResidualEchoGate]
    AM[audioManager]
    RAG["ragService — MiniLM embeddings"]
    MEM["sessionMemory — current recording only"]
    CS[claudeService]
    DB[("SQLite data/raven.db")]
    CFG["electron-store — keys and settings"]
    OV[Overlay]
    Dash[Dashboard]
  end

  subgraph postcall [Post-call on this machine]
    SIDX["sessionIndexService — MiniLM transcript index"]
    SQA["sessionQaService — Ask, streamed"]
    RECAP["Recap — action items, follow-up email, export, insights"]
  end

  subgraph byok [Your API keys — not a Raven server]
    STT["Deepgram nova-3 and/or AssemblyAI u3-rt-pro"]
    LLM[Anthropic or OpenAI]
  end

  Win --> SAN
  Mac --> SAN
  SAN -->|"system PCM = Them"| AM
  SAN --> AEC
  AEC -->|"cleaned mic"| REG
  REG -->|"You, if not echo"| AM
  AM --> STT
  STT --> OV
  OV --> CS
  MEM --> CS
  RAG --> CS
  CS --> LLM
  CS --> DB
  RAG --> DB
  AM --> DB
  CFG --- CS
  Dash --- DB
  MD["meetingDetector — window titles"] -.->|"offer to start"| AM
  DB -->|"saved transcript"| SIDX
  SIDX -->|"chunks + embeddings"| DB
  SQA -->|"retrieve top chunks"| DB
  SQA --> LLM
  RECAP --> DB
  RECAP --> LLM
  Dash --- SQA
  Dash --- RECAP

What “memory” means here

Mechanism	Lifetime	Used for
Live Assist turns + `sessionMemory`	Current recording, in RAM	Long meetings: running summary, pinned opening, pinned questions, last few turns
SQLite sessions / messages	Until you delete them	History, summaries, insights, overlay chat replay
RAG chunks	Until you remove the file from the mode	Retrieve-then-prompt on Assist, scoped to that mode
Session Ask index	Until you delete the session	Retrieve-then-prompt for Ask across all meetings (on-device MiniLM)
Ask conversations	Until you delete the chat / session	Saved Ask history — one per session, plus standalone global threads
electron-store	Until you reset settings	Keys, STT preference, window bounds — not semantic memory

There is no global “Raven remembers you across meetings” store.

How It Works

You start a session (Cmd/Ctrl + Shift + Space, or the overlay). Incognito, if enabled, will not write the session to SQLite.
A native helper captures system audio and microphone at the same time.
- macOS: Swift audiocapture — ScreenCaptureKit (system) + CoreAudio (mic). Needs Microphone and Screen Recording.
- Windows: Rust/NAPI raven-windows-audio — WASAPI loopback + capture. Uses the default devices.
System PCM is the AEC reference. Mic PCM goes through GStreamer webrtcechoprobe / webrtcdsp. ResidualEchoGate then compares raw mic to recent system audio and drops leftover speaker echo so it does not land in You.
Two STT connections run in parallel (mic → You, system → Them). Engine pick is Settings sttProvider (auto / assemblyai / deepgram) plus language: AssemblyAI Universal-3 Pro for the six languages above when that key exists; Deepgram nova-3 otherwise (including auto-detect / multi). AssemblyAI failures can fall back to Deepgram.
The overlay shows the live transcript. Assist (Cmd/Ctrl + Enter) builds a prompt from the mode brief, retrieved RAG chunks (if the mode has docs), session memory, recent chat, transcript tail, and an optional screenshot, then streams from your LLM.
On stop, a non-incognito session is saved. A cheap/fast model writes a title and summary. Insights are generated later from the dashboard, still with your key.

Project Structure

src/
├── main/                         # Electron main process
│   ├── audioManager.ts           #   Recording orchestration, STT engine pick
│   ├── systemAudioNative.ts      #   Native capture + AEC wiring
│   ├── residualEchoGate.ts       #   Post-AEC mic echo drop before STT
│   ├── transcriptionService.ts   #   Deepgram dual WebSocket
│   ├── claudeService.ts          #   Overlay Assist (Claude / OpenAI)
│   ├── store.ts                  #   electron-store (encrypted keys + settings)
│   ├── meetingDetector.ts        #   Meeting auto-start from window titles
│   ├── index.ts                  #   App lifecycle, hotkeys, IPC
│   └── services/
│       ├── database.ts           #   SQLite (sessions, modes, RAG chunks, Ask index + chats)
│       ├── sessionManager.ts     #   Session lifecycle, incognito, autosave
│       ├── ragService.ts         #   Parse, embed, retrieve
│       ├── assemblyAITranscriptionService.ts
│       ├── summaryService.ts     #   Post-session title + summary
│       ├── insightsService.ts    #   Dashboard insights
│       ├── sessionQaService.ts   #   Ask (per-session + across all), streamed
│       ├── sessionIndexService.ts #  Transcript index for Ask (MiniLM)
│       ├── sessionExportService.ts # Markdown / PDF export
│       ├── followupEmailService.ts # Follow-up email draft
│       └── ai/
│           ├── providerFactory.ts
│           └── sessionMemory.ts  #   In-recording compression / pins
├── shared/sttCapabilities.ts     # STT language + engine routing
├── renderer/                     # React UI (Vite + Tailwind)
├── preload/                      # Context bridge
└── native/
    ├── swift/AudioCapture/       # macOS capture
    ├── windows/                  # Windows WASAPI (Rust/NAPI)
    └── aec/                      # GStreamer AEC addon

Platform Support

Platform	System Audio	Microphone	Echo Cancellation	Status
macOS 12+	ScreenCaptureKit	CoreAudio	GStreamer AEC3	Primary, fully tested
Windows 10/11	WASAPI Loopback	WASAPI Capture	GStreamer AEC3	Supported
Linux	—	—	—	Not supported (no native capture path)

Prebuilt Mac DMG is Apple Silicon. Intel Macs: build from source (this section). This OSS tree does not ship login, hosted Pro, cloud sync, or Recall meeting-bot capture.

Getting Started

If you only want to run Raven, use a prebuilt installer instead of this section.

This walkthrough is for building from source — from a fresh machine to a running app. Pick your platform, follow every numbered step in order, and verify each one before moving on.

API keys (entered in-app on first launch — nothing to configure beforehand):

Deepgram or AssemblyAI — real-time transcription

Anthropic or OpenAI — AI assistance

macOS Setup

Tested on macOS 12 (Monterey) through macOS 15 (Sequoia), Intel and Apple Silicon.

Step 1 — Install Xcode Command Line Tools

xcode-select --install

A system dialog will appear — click Install and wait for it to finish (~2 min).

Verify:

xcode-select -p
# Expected: /Library/Developer/CommandLineTools  (or an Xcode.app path)

If you see xcode-select: error: command line tools are already installed — you're good, move on.

Step 2 — Install Node.js 22

Install via nvm (recommended). Skip the curl line if you already have nvm.

curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash

Close and reopen your terminal, then:

nvm install 22
nvm use 22

Verify:

node -v
# Expected: v22.x.x (any 22+ version)

If nvm: command not found: Close your terminal and open a new one — nvm's install script adds itself to your shell profile, but only new shells pick it up.

Step 3 — Install GStreamer

brew install gstreamer gst-plugins-base gst-plugins-good gst-plugins-bad

Don't have Homebrew? Install it first from brew.sh.

Verify:

pkg-config --modversion gstreamer-1.0
# Expected: 1.24.x (or similar)

If Package gstreamer-1.0 was not found: Homebrew's pkg-config path isn't set. Add the correct line to your ~/.zshrc and restart your terminal:
# Apple Silicon (M1/M2/M3/M4):
echo 'export PKG_CONFIG_PATH="/opt/homebrew/lib/pkgconfig:$PKG_CONFIG_PATH"' >> ~/.zshrc

# Intel Mac:
echo 'export PKG_CONFIG_PATH="/usr/local/lib/pkgconfig:$PKG_CONFIG_PATH"' >> ~/.zshrc

Step 4 — Clone the repo and install dependencies

git clone https://github.com/Laxcorp-Research/project-raven.git
cd project-raven
npm install

npm install takes a few minutes. It automatically rebuilds better-sqlite3 for Electron via the postinstall script — you'll see @electron/rebuild output near the end.

Verify:

ls node_modules/.package-lock.json && echo "OK"
# Expected: OK

If npm install fails with node-gyp errors: Make sure Xcode Command Line Tools installed successfully in Step 1. Run xcode-select -p to confirm.

Step 5 — Build the GStreamer echo-cancellation addon

cd src/native/aec
npm install
./build-deps.sh
npx cmake-js compile
cd ../../..

What this does:

Installs the addon's build tools (cmake-js, node-addon-api)
Verifies all GStreamer libraries and builds the WebRTC DSP plugin from source (Homebrew doesn't ship it)
Compiles the C++ echo-cancellation native module

Verify:

ls src/native/aec/build/Release/raven-aec.node && echo "OK"
# Expected: OK

If build-deps.sh fails with "gstreamer-1.0 not found": Revisit Step 3 and make sure pkg-config --modversion gstreamer-1.0 works.

If cmake-js compile fails with "cmake not found": cmake is bundled with cmake-js. Run npx cmake-js --version — if that fails, delete node_modules inside src/native/aec/ and re-run npm install.

Step 6 — Build the Swift audio capture binary

cd src/native/swift/AudioCapture
swift build -c release
cd ../../../..

Verify:

ls src/native/swift/AudioCapture/.build/release/audiocapture && echo "OK"
# Expected: OK

If swift build fails with unresolved imports: Your Swift toolchain may be too old (5.9+ required). Check with swift --version. Update Xcode Command Line Tools:
sudo rm -rf /Library/Developer/CommandLineTools && xcode-select --install

Step 7 — Run the app

npm run dev

The Electron app opens. On first launch you'll be prompted to enter your API keys in the settings.

If the app starts but audio capture doesn't work: macOS requires explicit permissions. Go to System Settings → Privacy & Security and grant both Microphone and Screen Recording access to the app (or to your terminal emulator during development).

Windows Setup

Tested on Windows 10 (21H2+) and Windows 11. All commands are for PowerShell. Open a new terminal after each installer to pick up PATH changes.

Step 1 — Install Visual Studio Build Tools

Download and run the Visual Studio Build Tools installer.

In the installer, check the "Desktop development with C++" workload and click Install. Make sure these optional components are selected (they should be by default):

MSVC Build Tools for x64/x86 (Latest)
Windows 10/11 SDK
C++ CMake tools for Windows

Verify:

& "${env:ProgramFiles(x86)}\Microsoft Visual Studio\Installer\vswhere.exe" -products * -requires Microsoft.VisualStudio.Workload.VCTools -property displayName
# Expected: Visual Studio Build Tools 2022

If you have full Visual Studio (not just Build Tools) with the C++ workload, that works too.

Step 2 — Install Node.js (LTS)

Option A — nvm-windows (recommended):

Download and run the latest nvm-setup.exe, then open a new terminal:

nvm install 22
nvm use 22

Option B — Download the LTS 22.x MSI installer directly from nodejs.org.

Verify (in a new terminal):

node -v
# Expected: v22.x.x

Why Node 22 specifically? The project requires node >= 22.12.0 (see package.json engines). Using nvm install lts may install a newer major version that hasn't been tested.

Step 3 — Install Python

Python is required by node-gyp to compile native Node.js modules (better-sqlite3, bufferutil, etc.).

Option A — winget:

winget install Python.Python.3.12 --source winget

Option B — Download from python.org. Make sure "Add to PATH" is checked during installation.

Verify (in a new terminal):

python --version
# Expected: Python 3.x.x

Step 4 — Install the Rust toolchain

Download and run rustup-init.exe. Accept the defaults (installs stable-msvc).

Verify (in a new terminal):

rustc --version
# Expected: rustc 1.xx.x (...)
rustup default stable-msvc

Step 5 — Install GStreamer (MSVC)

Download the MSVC x86_64 installer from gstreamer.freedesktop.org/download — click Windows → MSVC x86_64 (VS 2022, Release CRT).

For GStreamer 1.28+, there is a single combined installer (runtime + development). For older versions, download both the Runtime and Development MSI files.

Run with default settings. The installer typically installs to C:\gstreamer\ or C:\Program Files\gstreamer\.

After installation, verify the environment variable is set (open a new terminal):

echo $env:GSTREAMER_1_0_ROOT_MSVC_X86_64
# Expected: C:\gstreamer\1.0\msvc_x86_64\ (or C:\Program Files\gstreamer\1.0\msvc_x86_64\)

Also make sure GStreamer's bin directory is on your PATH:

$gstRoot = $env:GSTREAMER_1_0_ROOT_MSVC_X86_64
if ($gstRoot) { echo "GStreamer root: $gstRoot" } else { echo "NOT SET - see below" }

If the variable is empty: The installer didn't set it. Find where GStreamer was installed and set it manually:
# Adjust the path below to match your installation
[Environment]::SetEnvironmentVariable("GSTREAMER_1_0_ROOT_MSVC_X86_64", "C:\Program Files\gstreamer\1.0\msvc_x86_64\", "User")
Then restart your terminal.

If GStreamer installed to C:\Program Files\gstreamer\ instead of C:\gstreamer\: That's fine — just make sure the environment variable points to the correct path (e.g. C:\Program Files\gstreamer\1.0\msvc_x86_64\).

Step 6 — Install CMake

CMake is required to compile the GStreamer echo-cancellation addon.

winget install Kitware.CMake --source winget

Or download from cmake.org/download. Make sure "Add to PATH" is checked.

Verify (in a new terminal):

cmake --version
# Expected: cmake version 3.x.x

Step 7 — Clone the repo and install dependencies

git clone https://github.com/Laxcorp-Research/project-raven.git
cd project-raven
npm install

npm install takes a few minutes. It automatically rebuilds better-sqlite3 for Electron via the postinstall script.

Verify:

Test-Path node_modules\.package-lock.json
# Expected: True

If npm install fails with Could not find any Python installation: Revisit Step 3 — Python must be installed and on PATH.

If npm install fails with Could not find any Visual Studio installation: node-gyp can't auto-detect your Build Tools. Try these fixes in order:
# Fix 1: Set the version hint for node-gyp
npm config set msvs_version 2022
Remove-Item -Recurse -Force node_modules
npm install
If npm config set msvs_version gives an error on newer npm versions, use the environment variable instead:
# Fix 2: Environment variable (works on all npm versions)
$env:GYP_MSVS_VERSION = "2022"
Remove-Item -Recurse -Force node_modules
npm install

Step 8 — Build the GStreamer echo-cancellation addon

First, check the Electron version used by the project:

node -e "console.log(require('./node_modules/electron/package.json').version)"
# Note the version (e.g. 40.4.1)

Then build the addon targeting that version:

cd src\native\aec
npm install
npx cmake-js compile --runtime electron --runtime-version <ELECTRON_VERSION>
cd ..\..\..

Replace <ELECTRON_VERSION> with the version from the previous command (e.g. 40.4.1).

Important: The --runtime electron --runtime-version flags are required. Without them, the addon is built for Node.js instead of Electron, and it will crash when loaded. If you upgrade Electron later, you must rebuild this addon with the new version.

Note: The build-deps.sh script is macOS-only. On Windows, the GStreamer MSVC installer already includes all required plugins (including WebRTC DSP).

Verify:

Test-Path src\native\aec\build\Release\raven-aec.node
# Expected: True

If cmake-js fails with "CMake is not installed": Revisit Step 6.

If cmake-js fails with "GStreamer not found": The GSTREAMER_1_0_ROOT_MSVC_X86_64 environment variable is not set. Revisit Step 5.

If the build succeeds but linking fails with "unresolved external symbol g_object_set / g_type_check_instance_cast": GLib/GObject libraries are missing from the link step. This should be handled automatically by the CMakeLists.txt — if you see this error, file a bug.

Step 9 — Build the Windows audio capture module

cd src\native\windows
npm install
npx napi build --platform --release
cd ..\..\..

Verify:

Test-Path src\native\windows\raven-windows-audio.win32-x64-msvc.node
# Expected: True

If the build fails with linker errors: Make sure Rust is using the MSVC target: rustup default stable-msvc.

If it fails with "Windows SDK not found": Open Visual Studio Installer → Modify → Individual components and install the latest "Windows 10 SDK" or "Windows 11 SDK".

Step 10 — Run the app

npm run dev

The Electron app opens. On first launch you'll see a 6-step onboarding flow — enter a transcription key (Deepgram and/or AssemblyAI) and an AI key (Anthropic or OpenAI).

If the app starts but audio capture doesn't work: Check Settings → Sound and make sure the correct playback and recording devices are set as default. WASAPI captures from the default devices. The Settings mic picker only drives the in-app mic test.

Setup Troubleshooting Quick Reference

Symptom	Likely Cause	Fix
`Could not find any Python installation`	Python not installed	Install Python 3.x and add to PATH (Windows Step 3)
`Could not find any Visual Studio installation to use`	`node-gyp` can't auto-detect Build Tools	Set `$env:GYP_MSVS_VERSION = "2022"`, delete `node_modules`, re-run `npm install`
`npm install` fails with `node-gyp` errors	Missing C/C++ build tools	macOS: `xcode-select --install` Windows: VS Build Tools "Desktop development with C++" workload
`NODE_MODULE_VERSION mismatch` at runtime	Native module built for wrong Electron version	`npx @electron/rebuild -f -w better-sqlite3` from the project root
`build-deps.sh`: "gstreamer-1.0 not found"	GStreamer not installed or `pkg-config` can't find it	macOS: Install via Homebrew and check `PKG_CONFIG_PATH` (see macOS Step 3)
cmake-js: "CMake is not installed"	CMake not on PATH	Install CMake (Windows Step 6)
cmake-js: "GStreamer not found" on Windows	`GSTREAMER_1_0_ROOT_MSVC_X86_64` not set	Set the env var manually and restart terminal (see Windows Step 5)
AEC addon crashes Electron on startup	Built for Node.js instead of Electron	Rebuild with `--runtime electron --runtime-version <your-electron-version>` (Windows Step 8)
`swift build` fails	Swift toolchain too old (need 5.9+)	`sudo rm -rf /Library/Developer/CommandLineTools && xcode-select --install`
`napi build` linker errors on Windows	Wrong Rust target or missing Windows SDK	`rustup default stable-msvc` and ensure VS Build Tools C++ workload is installed
App starts, no audio on macOS	Missing system permissions	System Settings → Privacy & Security: grant Microphone and Screen Recording
App starts, no audio on Windows	Wrong default audio device	Settings → Sound: set correct default playback/recording devices

Keyboard Shortcuts

These match registerGlobalHotkeys in src/main/index.ts. On Windows use Ctrl instead of Cmd. Recording used to be Cmd/Ctrl+R and clear used to be Cmd/Ctrl+Shift+R; those were changed because they stole browser refresh globally. If an onboarding screenshot still shows the old keys, this table wins.

Action	Shortcut
Toggle overlay	`Cmd + \`
AI Assist	`Cmd + Enter`
Start/Stop recording	`Cmd + Shift + Space`
Clear conversation	`Cmd + Shift + Backspace`
Move overlay	`Cmd + Arrow Keys`
Scroll overlay	`Cmd + Shift + Up/Down`

Testing

npm test              # Unit + integration tests
npm run test:coverage # With coverage report
npm run test:e2e      # End-to-end (requires npm run build first)
npm run test:all      # Everything

Troubleshooting

better-sqlite3 native module error:

The postinstall script handles this automatically. If you still see NODE_MODULE_VERSION mismatch errors:

npx @electron/rebuild -f -w better-sqlite3

Reset all data (fresh start):

SQLite is data/raven.db under the app user-data folder. Packaged builds use the product name Raven; npm run dev uses the package name project-raven.

# macOS (packaged)
rm -rf ~/Library/Application\ Support/Raven/

# macOS (dev)
rm -rf ~/Library/Application\ Support/project-raven/

:: Windows (packaged)
rmdir /s /q "%APPDATA%\Raven"

:: Windows (dev)
rmdir /s /q "%APPDATA%\project-raven"

Contributing

Issues and pull requests are welcome. This project is in active development. See CONTRIBUTING.md for setup, tests, and how to cut a release.

Fork the repo
Create your feature branch (git checkout -b feature/my-feature)
Commit your changes (git commit -m 'Add my feature')
Push to the branch (git push origin feature/my-feature)
Open a pull request

License

MIT

Rendered by GitHub from the current README

Read on GitHub

Top contributors

No contributor data yet — it is fetched during the contributor sync pass.

Quality score

Would you bet a product on this? Bounded 0–100 and slow moving.

77/10077

Maintenance: 90%; How recently the default branch was pushed to
Releases: 88%; Recency and cadence of tagged releases
Community: 5%; Contributor breadth and bus factor
Issue backlog: 100%; Open issues measured against the size of the audience
Documentation: 100%; README depth, plus a homepage and topics
Licensing: 100%; How freely the code can be adopted

What to know before adopting

Nothing flagged — maintained, documented and cleanly licensed.
Usable in commercial products with attribution.

Details

Created: 8 months ago
Last push: 23 days ago
Last release: 23 days ago
Release tag: v2.4.3
Releases in the last year: 8
Default branch: main
Size: 20k KB
Owner type: Organization
Owner location: United Arab Emirates
Discovered via: topic:speech-to-text
First indexed: 2 months ago
Last synced: 3 days ago

Laxcorp-Research/project-raven

77MITTypeScript

View on GitHub

Stars: 421
Forks: 423
Watchers: 135
Open issues: 3
Contributors: 1

Star history, last 90 days+15 over 28 snapshots

2026-07-24 · 4062026-09-20 · 421

Star history, last 90 days
Date	Stars
2026-07-24	406
2026-07-25	406
2026-07-28	406
2026-07-30	406
2026-07-31	405
2026-08-08	407
2026-08-16	409
2026-08-18	410
2026-08-19	412
2026-08-20	413
2026-08-21	411
2026-08-23	413
2026-08-24	413
2026-08-26	413
2026-08-28	413
2026-08-29	414
2026-08-30	415
2026-09-02	416
2026-09-03	417
2026-09-04	417
2026-09-08	418
2026-09-10	418
2026-09-11	419
2026-09-12	420
2026-09-15	420
2026-09-16	421
2026-09-18	421
2026-09-20	421

Today

— stars today

This week

+1 stars this week

This month

+10 stars this month

Momentum

36.0

growth rate 0.24%/day

From the README

Open-source meeting copilot: dual-stream capture, local echo cancellation, BYOK transcription and AI.

During the call — dual-stream capture and an overlay that suggests what to say, invisible to screen share.
After the call — auto notes, structured action items, a follow-up email draft, talk ratio, export, and Ask across your meetings.
Yours — recordings and notes stay in local SQLite; transcription and AI use your API keys. Nothing goes to a Raven server.

Download | Releases | Docs | Issues

If Raven helps you, star the repo — it's how open source travels.

Download

Prebuilt installers are on the latest GitHub Release. Enter your own API keys in Settings on first launch.

Platform	Installer
Windows 10/11 (x64)	Raven-Windows-2.4.3-Setup.exe
macOS 12+ (Apple Silicon)	Raven-Mac-2.4.3-Installer.dmg

Windows: run the setup executable. SmartScreen may warn on an unsigned OSS build — choose More info → Run anyway.

macOS: open the DMG, drag Raven to Applications, then open it. Intel Macs are not in this DMG — build from source below.

Screenshots

Dashboard — Session History	Settings — API Keys
Stealth Mode OFF — Overlay visible to screen share	Stealth Mode ON — Overlay invisible to screen share
Settings — Model Selection	Onboarding — Overlay Tour

Full onboarding flow (6 steps)

Step 1: Welcome	Step 2: API Keys	Step 3: Permissions

Step 4: Overlay Tour	Step 5: Shortcuts	Step 6: Ready to Go

Features

Dual-stream capture — System audio + microphone. macOS uses ScreenCaptureKit + CoreAudio; Windows uses WASAPI loopback + capture (Rust/NAPI).
Echo cancellation — GStreamer webrtcechoprobe / webrtcdsp (WebRTC AEC3), then a residual echo gate that drops mic chunks that still look like speaker bleed before they reach STT.
Real-time transcription — Two streams: You (cleaned mic) and Them (system audio). Deepgram nova-3 and/or AssemblyAI u3-rt-pro. Auto-routing prefers AssemblyAI for English, Spanish, French, German, Portuguese, and Italian when that key is present; otherwise Deepgram. Settings can force either engine.
AI assistance — Anthropic or OpenAI from the overlay (Assist, recap, follow-up, and custom prompts). Optional screenshot via desktopCapturer.
Stealth overlay — Electron setContentProtection so the overlay and dashboard are omitted from typical screen-share APIs (Zoom, Meet, Teams, Discord). Not a guarantee against every capture tool.
Modes — Local behavior profiles (system prompt, notes templates). Attach documents for RAG on that mode.
RAG (per mode, local) — Upload .txt, .md, .pdf, or .docx. Chunked and embedded on-device with Xenova/all-MiniLM-L6-v2 (@xenova/transformers). Chunks live in SQLite; the top matches are injected into the Assist system prompt. First embed may download the ~30MB model.
Session context (not long-term memory) — During a recording, Assist keeps recent turns, pins the opening transcript and your typed questions, and may compress older context with a cheap model in RAM. There is no cross-meeting user-memory profile.
Sessions — Saved locally in SQLite (transcript, overlay chat, auto title/summary). Dashboard can generate insights with your LLM key. Incognito skips SQLite persistence for that session.
Ask your meetings — A per-session Ask tab answers from that call's transcript; Ask across all meetings searches your whole history with on-device retrieval (Xenova/all-MiniLM-L6-v2) and cites the source sessions. Answers stream token-by-token; conversations are saved (one per session, plus multi-chat for the global view).
Post-call recap — Structured action items (task, owner, deadline), a one-click follow-up email draft, talk ratio (You vs. Them, word-based), and export to Markdown or PDF. All generated with your own key; nothing goes to a Raven server.
Meeting auto-start — Optionally detect a Zoom, Google Meet, Microsoft Teams (including 1:1 calls), or Webex meeting and prompt — or auto-start — a recording. No bot joins; detection just reads open window titles locally. Off / prompt / auto in Settings.
In-app updates — Windows and (from 2.4.1) macOS update in place: Update now downloads, Restart & update installs. Your keys and history are untouched.
Local settings — API keys and preferences in encrypted electron-store (raven-config.json).
Tray — Packaged builds load icons from resources/tray. On Windows 11 a new icon may start in the ^ overflow.
Profile picture editor — Crop, zoom, and pan before saving your avatar.

Live recording uses the OS default mic and playback devices. The Settings mic picker is for the in-app mic test only.

Architecture

flowchart TB
  subgraph capture [Native capture]
    Win["Windows: WASAPI loopback + capture"]
    Mac["macOS: ScreenCaptureKit + CoreAudio"]
  end

  subgraph local [Real-time on this machine]
    SAN[systemAudioNative]
    AEC["GStreamer webrtcechoprobe / webrtcdsp"]
    REG[ResidualEchoGate]
    AM[audioManager]
    RAG["ragService — MiniLM embeddings"]
    MEM["sessionMemory — current recording only"]
    CS[claudeService]
    DB[("SQLite data/raven.db")]
    CFG["electron-store — keys and settings"]
    OV[Overlay]
    Dash[Dashboard]
  end

  subgraph postcall [Post-call on this machine]
    SIDX["sessionIndexService — MiniLM transcript index"]
    SQA["sessionQaService — Ask, streamed"]
    RECAP["Recap — action items, follow-up email, export, insights"]
  end

  subgraph byok [Your API keys — not a Raven server]
    STT["Deepgram nova-3 and/or AssemblyAI u3-rt-pro"]
    LLM[Anthropic or OpenAI]
  end

  Win --> SAN
  Mac --> SAN
  SAN -->|"system PCM = Them"| AM
  SAN --> AEC
  AEC -->|"cleaned mic"| REG
  REG -->|"You, if not echo"| AM
  AM --> STT
  STT --> OV
  OV --> CS
  MEM --> CS
  RAG --> CS
  CS --> LLM
  CS --> DB
  RAG --> DB
  AM --> DB
  CFG --- CS
  Dash --- DB
  MD["meetingDetector — window titles"] -.->|"offer to start"| AM
  DB -->|"saved transcript"| SIDX
  SIDX -->|"chunks + embeddings"| DB
  SQA -->|"retrieve top chunks"| DB
  SQA --> LLM
  RECAP --> DB
  RECAP --> LLM
  Dash --- SQA
  Dash --- RECAP

What “memory” means here

Mechanism	Lifetime	Used for
Live Assist turns + `sessionMemory`	Current recording, in RAM	Long meetings: running summary, pinned opening, pinned questions, last few turns
SQLite sessions / messages	Until you delete them	History, summaries, insights, overlay chat replay
RAG chunks	Until you remove the file from the mode	Retrieve-then-prompt on Assist, scoped to that mode
Session Ask index	Until you delete the session	Retrieve-then-prompt for Ask across all meetings (on-device MiniLM)
Ask conversations	Until you delete the chat / session	Saved Ask history — one per session, plus standalone global threads
electron-store	Until you reset settings	Keys, STT preference, window bounds — not semantic memory

There is no global “Raven remembers you across meetings” store.

How It Works

You start a session (Cmd/Ctrl + Shift + Space, or the overlay). Incognito, if enabled, will not write the session to SQLite.
A native helper captures system audio and microphone at the same time.
- macOS: Swift audiocapture — ScreenCaptureKit (system) + CoreAudio (mic). Needs Microphone and Screen Recording.
- Windows: Rust/NAPI raven-windows-audio — WASAPI loopback + capture. Uses the default devices.
System PCM is the AEC reference. Mic PCM goes through GStreamer webrtcechoprobe / webrtcdsp. ResidualEchoGate then compares raw mic to recent system audio and drops leftover speaker echo so it does not land in You.
Two STT connections run in parallel (mic → You, system → Them). Engine pick is Settings sttProvider (auto / assemblyai / deepgram) plus language: AssemblyAI Universal-3 Pro for the six languages above when that key exists; Deepgram nova-3 otherwise (including auto-detect / multi). AssemblyAI failures can fall back to Deepgram.
The overlay shows the live transcript. Assist (Cmd/Ctrl + Enter) builds a prompt from the mode brief, retrieved RAG chunks (if the mode has docs), session memory, recent chat, transcript tail, and an optional screenshot, then streams from your LLM.
On stop, a non-incognito session is saved. A cheap/fast model writes a title and summary. Insights are generated later from the dashboard, still with your key.

Project Structure

src/
├── main/                         # Electron main process
│   ├── audioManager.ts           #   Recording orchestration, STT engine pick
│   ├── systemAudioNative.ts      #   Native capture + AEC wiring
│   ├── residualEchoGate.ts       #   Post-AEC mic echo drop before STT
│   ├── transcriptionService.ts   #   Deepgram dual WebSocket
│   ├── claudeService.ts          #   Overlay Assist (Claude / OpenAI)
│   ├── store.ts                  #   electron-store (encrypted keys + settings)
│   ├── meetingDetector.ts        #   Meeting auto-start from window titles
│   ├── index.ts                  #   App lifecycle, hotkeys, IPC
│   └── services/
│       ├── database.ts           #   SQLite (sessions, modes, RAG chunks, Ask index + chats)
│       ├── sessionManager.ts     #   Session lifecycle, incognito, autosave
│       ├── ragService.ts         #   Parse, embed, retrieve
│       ├── assemblyAITranscriptionService.ts
│       ├── summaryService.ts     #   Post-session title + summary
│       ├── insightsService.ts    #   Dashboard insights
│       ├── sessionQaService.ts   #   Ask (per-session + across all), streamed
│       ├── sessionIndexService.ts #  Transcript index for Ask (MiniLM)
│       ├── sessionExportService.ts # Markdown / PDF export
│       ├── followupEmailService.ts # Follow-up email draft
│       └── ai/
│           ├── providerFactory.ts
│           └── sessionMemory.ts  #   In-recording compression / pins
├── shared/sttCapabilities.ts     # STT language + engine routing
├── renderer/                     # React UI (Vite + Tailwind)
├── preload/                      # Context bridge
└── native/
    ├── swift/AudioCapture/       # macOS capture
    ├── windows/                  # Windows WASAPI (Rust/NAPI)
    └── aec/                      # GStreamer AEC addon

Platform Support

Platform	System Audio	Microphone	Echo Cancellation	Status
macOS 12+	ScreenCaptureKit	CoreAudio	GStreamer AEC3	Primary, fully tested
Windows 10/11	WASAPI Loopback	WASAPI Capture	GStreamer AEC3	Supported
Linux	—	—	—	Not supported (no native capture path)

Prebuilt Mac DMG is Apple Silicon. Intel Macs: build from source (this section). This OSS tree does not ship login, hosted Pro, cloud sync, or Recall meeting-bot capture.

Getting Started

If you only want to run Raven, use a prebuilt installer instead of this section.

This walkthrough is for building from source — from a fresh machine to a running app. Pick your platform, follow every numbered step in order, and verify each one before moving on.

API keys (entered in-app on first launch — nothing to configure beforehand):

Deepgram or AssemblyAI — real-time transcription

Anthropic or OpenAI — AI assistance

macOS Setup

Tested on macOS 12 (Monterey) through macOS 15 (Sequoia), Intel and Apple Silicon.

Step 1 — Install Xcode Command Line Tools

xcode-select --install

A system dialog will appear — click Install and wait for it to finish (~2 min).

Verify:

xcode-select -p
# Expected: /Library/Developer/CommandLineTools  (or an Xcode.app path)

If you see xcode-select: error: command line tools are already installed — you're good, move on.

Step 2 — Install Node.js 22

Install via nvm (recommended). Skip the curl line if you already have nvm.

curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash

Close and reopen your terminal, then:

nvm install 22
nvm use 22

Verify:

node -v
# Expected: v22.x.x (any 22+ version)

If nvm: command not found: Close your terminal and open a new one — nvm's install script adds itself to your shell profile, but only new shells pick it up.

Step 3 — Install GStreamer

brew install gstreamer gst-plugins-base gst-plugins-good gst-plugins-bad

Don't have Homebrew? Install it first from brew.sh.

Verify:

pkg-config --modversion gstreamer-1.0
# Expected: 1.24.x (or similar)

If Package gstreamer-1.0 was not found: Homebrew's pkg-config path isn't set. Add the correct line to your ~/.zshrc and restart your terminal:
# Apple Silicon (M1/M2/M3/M4):
echo 'export PKG_CONFIG_PATH="/opt/homebrew/lib/pkgconfig:$PKG_CONFIG_PATH"' >> ~/.zshrc

# Intel Mac:
echo 'export PKG_CONFIG_PATH="/usr/local/lib/pkgconfig:$PKG_CONFIG_PATH"' >> ~/.zshrc

Step 4 — Clone the repo and install dependencies

git clone https://github.com/Laxcorp-Research/project-raven.git
cd project-raven
npm install

npm install takes a few minutes. It automatically rebuilds better-sqlite3 for Electron via the postinstall script — you'll see @electron/rebuild output near the end.

Verify:

ls node_modules/.package-lock.json && echo "OK"
# Expected: OK

If npm install fails with node-gyp errors: Make sure Xcode Command Line Tools installed successfully in Step 1. Run xcode-select -p to confirm.

Step 5 — Build the GStreamer echo-cancellation addon

cd src/native/aec
npm install
./build-deps.sh
npx cmake-js compile
cd ../../..

What this does:

Installs the addon's build tools (cmake-js, node-addon-api)
Verifies all GStreamer libraries and builds the WebRTC DSP plugin from source (Homebrew doesn't ship it)
Compiles the C++ echo-cancellation native module

Verify:

ls src/native/aec/build/Release/raven-aec.node && echo "OK"
# Expected: OK

If build-deps.sh fails with "gstreamer-1.0 not found": Revisit Step 3 and make sure pkg-config --modversion gstreamer-1.0 works.

If cmake-js compile fails with "cmake not found": cmake is bundled with cmake-js. Run npx cmake-js --version — if that fails, delete node_modules inside src/native/aec/ and re-run npm install.

Step 6 — Build the Swift audio capture binary

cd src/native/swift/AudioCapture
swift build -c release
cd ../../../..

Verify:

ls src/native/swift/AudioCapture/.build/release/audiocapture && echo "OK"
# Expected: OK

If swift build fails with unresolved imports: Your Swift toolchain may be too old (5.9+ required). Check with swift --version. Update Xcode Command Line Tools:
sudo rm -rf /Library/Developer/CommandLineTools && xcode-select --install

Step 7 — Run the app

npm run dev

The Electron app opens. On first launch you'll be prompted to enter your API keys in the settings.

If the app starts but audio capture doesn't work: macOS requires explicit permissions. Go to System Settings → Privacy & Security and grant both Microphone and Screen Recording access to the app (or to your terminal emulator during development).

Windows Setup

Tested on Windows 10 (21H2+) and Windows 11. All commands are for PowerShell. Open a new terminal after each installer to pick up PATH changes.

Step 1 — Install Visual Studio Build Tools

Download and run the Visual Studio Build Tools installer.

In the installer, check the "Desktop development with C++" workload and click Install. Make sure these optional components are selected (they should be by default):

MSVC Build Tools for x64/x86 (Latest)
Windows 10/11 SDK
C++ CMake tools for Windows

Verify:

& "${env:ProgramFiles(x86)}\Microsoft Visual Studio\Installer\vswhere.exe" -products * -requires Microsoft.VisualStudio.Workload.VCTools -property displayName
# Expected: Visual Studio Build Tools 2022

If you have full Visual Studio (not just Build Tools) with the C++ workload, that works too.

Step 2 — Install Node.js (LTS)

Option A — nvm-windows (recommended):

Download and run the latest nvm-setup.exe, then open a new terminal:

nvm install 22
nvm use 22

Option B — Download the LTS 22.x MSI installer directly from nodejs.org.

Verify (in a new terminal):

node -v
# Expected: v22.x.x

Why Node 22 specifically? The project requires node >= 22.12.0 (see package.json engines). Using nvm install lts may install a newer major version that hasn't been tested.

Step 3 — Install Python

Python is required by node-gyp to compile native Node.js modules (better-sqlite3, bufferutil, etc.).

Option A — winget:

winget install Python.Python.3.12 --source winget

Option B — Download from python.org. Make sure "Add to PATH" is checked during installation.

Verify (in a new terminal):

python --version
# Expected: Python 3.x.x

Step 4 — Install the Rust toolchain

Download and run rustup-init.exe. Accept the defaults (installs stable-msvc).

Verify (in a new terminal):

rustc --version
# Expected: rustc 1.xx.x (...)
rustup default stable-msvc

Step 5 — Install GStreamer (MSVC)

Download the MSVC x86_64 installer from gstreamer.freedesktop.org/download — click Windows → MSVC x86_64 (VS 2022, Release CRT).

For GStreamer 1.28+, there is a single combined installer (runtime + development). For older versions, download both the Runtime and Development MSI files.

Run with default settings. The installer typically installs to C:\gstreamer\ or C:\Program Files\gstreamer\.

After installation, verify the environment variable is set (open a new terminal):

echo $env:GSTREAMER_1_0_ROOT_MSVC_X86_64
# Expected: C:\gstreamer\1.0\msvc_x86_64\ (or C:\Program Files\gstreamer\1.0\msvc_x86_64\)

Also make sure GStreamer's bin directory is on your PATH:

$gstRoot = $env:GSTREAMER_1_0_ROOT_MSVC_X86_64
if ($gstRoot) { echo "GStreamer root: $gstRoot" } else { echo "NOT SET - see below" }

If the variable is empty: The installer didn't set it. Find where GStreamer was installed and set it manually:
# Adjust the path below to match your installation
[Environment]::SetEnvironmentVariable("GSTREAMER_1_0_ROOT_MSVC_X86_64", "C:\Program Files\gstreamer\1.0\msvc_x86_64\", "User")
Then restart your terminal.

If GStreamer installed to C:\Program Files\gstreamer\ instead of C:\gstreamer\: That's fine — just make sure the environment variable points to the correct path (e.g. C:\Program Files\gstreamer\1.0\msvc_x86_64\).

Step 6 — Install CMake

CMake is required to compile the GStreamer echo-cancellation addon.

winget install Kitware.CMake --source winget

Or download from cmake.org/download. Make sure "Add to PATH" is checked.

Verify (in a new terminal):

cmake --version
# Expected: cmake version 3.x.x

Step 7 — Clone the repo and install dependencies

git clone https://github.com/Laxcorp-Research/project-raven.git
cd project-raven
npm install

npm install takes a few minutes. It automatically rebuilds better-sqlite3 for Electron via the postinstall script.

Verify:

Test-Path node_modules\.package-lock.json
# Expected: True

If npm install fails with Could not find any Python installation: Revisit Step 3 — Python must be installed and on PATH.

If npm install fails with Could not find any Visual Studio installation: node-gyp can't auto-detect your Build Tools. Try these fixes in order:
# Fix 1: Set the version hint for node-gyp
npm config set msvs_version 2022
Remove-Item -Recurse -Force node_modules
npm install
If npm config set msvs_version gives an error on newer npm versions, use the environment variable instead:
# Fix 2: Environment variable (works on all npm versions)
$env:GYP_MSVS_VERSION = "2022"
Remove-Item -Recurse -Force node_modules
npm install

Step 8 — Build the GStreamer echo-cancellation addon

First, check the Electron version used by the project:

node -e "console.log(require('./node_modules/electron/package.json').version)"
# Note the version (e.g. 40.4.1)

Then build the addon targeting that version:

cd src\native\aec
npm install
npx cmake-js compile --runtime electron --runtime-version <ELECTRON_VERSION>
cd ..\..\..

Replace <ELECTRON_VERSION> with the version from the previous command (e.g. 40.4.1).

Important: The --runtime electron --runtime-version flags are required. Without them, the addon is built for Node.js instead of Electron, and it will crash when loaded. If you upgrade Electron later, you must rebuild this addon with the new version.

Note: The build-deps.sh script is macOS-only. On Windows, the GStreamer MSVC installer already includes all required plugins (including WebRTC DSP).

Verify:

Test-Path src\native\aec\build\Release\raven-aec.node
# Expected: True

If cmake-js fails with "CMake is not installed": Revisit Step 6.

If cmake-js fails with "GStreamer not found": The GSTREAMER_1_0_ROOT_MSVC_X86_64 environment variable is not set. Revisit Step 5.

If the build succeeds but linking fails with "unresolved external symbol g_object_set / g_type_check_instance_cast": GLib/GObject libraries are missing from the link step. This should be handled automatically by the CMakeLists.txt — if you see this error, file a bug.

Step 9 — Build the Windows audio capture module

cd src\native\windows
npm install
npx napi build --platform --release
cd ..\..\..

Verify:

Test-Path src\native\windows\raven-windows-audio.win32-x64-msvc.node
# Expected: True

If the build fails with linker errors: Make sure Rust is using the MSVC target: rustup default stable-msvc.

If it fails with "Windows SDK not found": Open Visual Studio Installer → Modify → Individual components and install the latest "Windows 10 SDK" or "Windows 11 SDK".

Step 10 — Run the app

npm run dev

The Electron app opens. On first launch you'll see a 6-step onboarding flow — enter a transcription key (Deepgram and/or AssemblyAI) and an AI key (Anthropic or OpenAI).

If the app starts but audio capture doesn't work: Check Settings → Sound and make sure the correct playback and recording devices are set as default. WASAPI captures from the default devices. The Settings mic picker only drives the in-app mic test.

Setup Troubleshooting Quick Reference

Symptom	Likely Cause	Fix
`Could not find any Python installation`	Python not installed	Install Python 3.x and add to PATH (Windows Step 3)
`Could not find any Visual Studio installation to use`	`node-gyp` can't auto-detect Build Tools	Set `$env:GYP_MSVS_VERSION = "2022"`, delete `node_modules`, re-run `npm install`
`npm install` fails with `node-gyp` errors	Missing C/C++ build tools	macOS: `xcode-select --install` Windows: VS Build Tools "Desktop development with C++" workload
`NODE_MODULE_VERSION mismatch` at runtime	Native module built for wrong Electron version	`npx @electron/rebuild -f -w better-sqlite3` from the project root
`build-deps.sh`: "gstreamer-1.0 not found"	GStreamer not installed or `pkg-config` can't find it	macOS: Install via Homebrew and check `PKG_CONFIG_PATH` (see macOS Step 3)
cmake-js: "CMake is not installed"	CMake not on PATH	Install CMake (Windows Step 6)
cmake-js: "GStreamer not found" on Windows	`GSTREAMER_1_0_ROOT_MSVC_X86_64` not set	Set the env var manually and restart terminal (see Windows Step 5)
AEC addon crashes Electron on startup	Built for Node.js instead of Electron	Rebuild with `--runtime electron --runtime-version <your-electron-version>` (Windows Step 8)
`swift build` fails	Swift toolchain too old (need 5.9+)	`sudo rm -rf /Library/Developer/CommandLineTools && xcode-select --install`
`napi build` linker errors on Windows	Wrong Rust target or missing Windows SDK	`rustup default stable-msvc` and ensure VS Build Tools C++ workload is installed
App starts, no audio on macOS	Missing system permissions	System Settings → Privacy & Security: grant Microphone and Screen Recording
App starts, no audio on Windows	Wrong default audio device	Settings → Sound: set correct default playback/recording devices

Keyboard Shortcuts

Action	Shortcut
Toggle overlay	`Cmd + \`
AI Assist	`Cmd + Enter`
Start/Stop recording	`Cmd + Shift + Space`
Clear conversation	`Cmd + Shift + Backspace`
Move overlay	`Cmd + Arrow Keys`
Scroll overlay	`Cmd + Shift + Up/Down`

Testing

npm test              # Unit + integration tests
npm run test:coverage # With coverage report
npm run test:e2e      # End-to-end (requires npm run build first)
npm run test:all      # Everything

Troubleshooting

better-sqlite3 native module error:

The postinstall script handles this automatically. If you still see NODE_MODULE_VERSION mismatch errors:

npx @electron/rebuild -f -w better-sqlite3

Reset all data (fresh start):

SQLite is data/raven.db under the app user-data folder. Packaged builds use the product name Raven; npm run dev uses the package name project-raven.

# macOS (packaged)
rm -rf ~/Library/Application\ Support/Raven/

# macOS (dev)
rm -rf ~/Library/Application\ Support/project-raven/

:: Windows (packaged)
rmdir /s /q "%APPDATA%\Raven"

:: Windows (dev)
rmdir /s /q "%APPDATA%\project-raven"

Contributing

Issues and pull requests are welcome. This project is in active development. See CONTRIBUTING.md for setup, tests, and how to cut a release.

Fork the repo
Create your feature branch (git checkout -b feature/my-feature)
Commit your changes (git commit -m 'Add my feature')
Push to the branch (git push origin feature/my-feature)
Open a pull request

License

MIT

Rendered by GitHub from the current README

Read on GitHub

Top contributors

No contributor data yet — it is fetched during the contributor sync pass.

Quality score

Would you bet a product on this? Bounded 0–100 and slow moving.

77/10077

Maintenance: 90%; How recently the default branch was pushed to
Releases: 88%; Recency and cadence of tagged releases
Community: 5%; Contributor breadth and bus factor
Issue backlog: 100%; Open issues measured against the size of the audience
Documentation: 100%; README depth, plus a homepage and topics
Licensing: 100%; How freely the code can be adopted

What to know before adopting

Nothing flagged — maintained, documented and cleanly licensed.
Usable in commercial products with attribution.

Details

Created: 8 months ago
Last push: 23 days ago
Last release: 23 days ago
Release tag: v2.4.3
Releases in the last year: 8
Default branch: main
Size: 20k KB
Owner type: Organization
Owner location: United Arab Emirates
Discovered via: topic:speech-to-text
First indexed: 2 months ago
Last synced: 3 days ago

Top AI Repos — open-source AI, indexed and scored

Trend

From the README

Download

Screenshots

Features

Architecture

How It Works

Project Structure

Platform Support

Getting Started

macOS Setup

Windows Setup

Setup Troubleshooting Quick Reference

Keyboard Shortcuts

Testing

Troubleshooting

Contributing

License

Top contributors

Quality score

What to know before adopting

Categories

Details

Trend

From the README

Download

Screenshots

Features

Architecture

How It Works

Project Structure

Platform Support

Getting Started

macOS Setup

Windows Setup

Setup Troubleshooting Quick Reference

Keyboard Shortcuts

Testing

Troubleshooting

Contributing

License

Top contributors

Quality score

What to know before adopting

Categories

Details
