A Powerlevel10k-inspired statusline for Claude Code with one installer entrypoint for humans and AI: run it directly, or ask Claude to run it and handle the setup for you.
╭ ~/side-project/coralline ⬢ coralline ⎇ main+! ◆ Fable 5 ψ high ⬡ ▰▰▰▱▱ 62% ↑1.2M ↓45.6k 5h ▰▰▱▱▱ 41% ↺2h44m 7d ▰▰▰▰▱ 79% ↺1d11h +321 −87 $1.23 ✎ Explanatory ⧖ 47m ⚑ 1 ⊙ 02:45 pm ╮
| Segment | Shows |
|---|---|
dir |
current directory, long paths collapsed to ~/a/…/z |
project |
repo name (⬢), stable across every worktree; hidden outside a git repo |
git |
branch, staged + / modified ! / untracked ?, ahead ⇡ behind ⇣ |
node |
active Node version (Nerd Font nf-dev-nodejs_small) from .nvmrc / .node-version (or node on PATH with VL_RUNTIME_PROBE=1); hidden when undetected; opt-in |
python |
active Python env (Nerd Font nf-dev-python) — $VIRTUAL_ENV / conda (skips base) / .python-version (or python3 on PATH with VL_RUNTIME_PROBE=1); hidden when undetected; opt-in |
model |
active Claude model |
effort |
reasoning effort level (ψ) — low / med / high / xhigh / max |
ctx |
context-window gauge, input/output/cache token counts |
limit5h / limit7d |
rate-limit gauges with reset countdown |

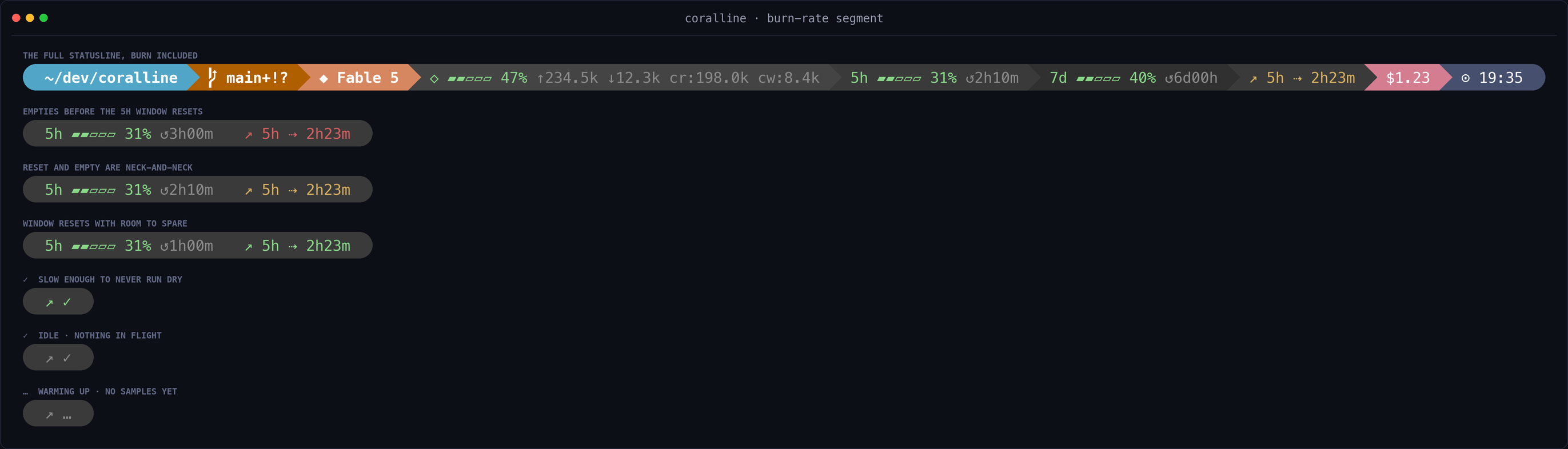

burn |
range-to-empty: projected time until the binding limit (5h or 7d) hits 100% at the recent burn rate (↗); opt-in by adding burn to VL_SEGMENTS |
lines |
lines added/removed this session |
cost |
session cost in USD |
style |
active output style |
duration |
session wall-clock duration |
stash |
git stash count |
clock |
time, 12h or 24h |
Gauges change color as they fill: green → yellow at 50% → red at 75% (thresholds configurable).

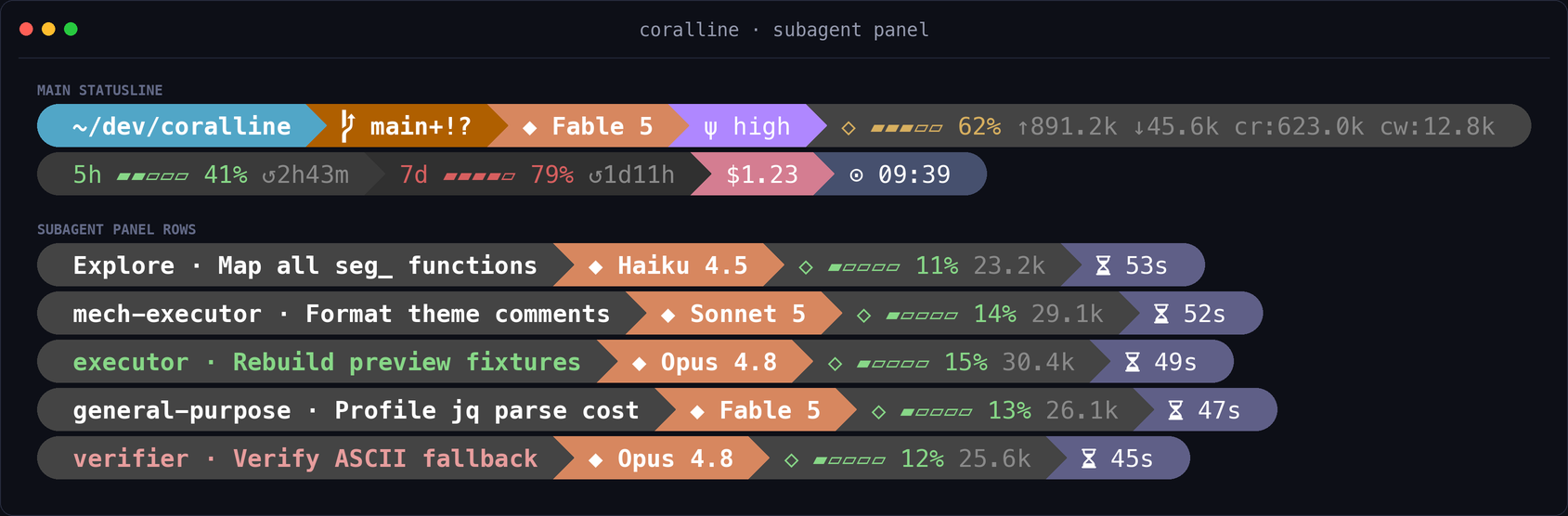

Claude Code shows an agent panel below the prompt while subagents run; each row
defaults to name · description · token count. coralline can theme the
subagent rows and add the per-task model, a context gauge, and elapsed time:
scout · Explore config sources ◆ gpt-5.6-luna ⬡ ▰▰▱▱▱ 21% 42.0k ⧖ 2m05s
executor · Apply R2 fixes ◆ Fable 5 ⬡ ▰▰▰▰▱ 77% 155.0k ⧖ 45s
Claude Code v2.1.211 does not include its internal agentType role in the
subagentStatusLine payload, but local Agent tasks have a small metadata
sidecar next to the session transcript. coralline reads that local file without
starting another process, so roles such as scout and executor return. The
row keeps both identity and task label: an explicit per-task name is retained
alongside the role when both exist, followed by label or description. If the
sidecar is absent or unreadable, the payload fields still render normally.
The model comes directly from Claude Code's per-task model payload field;
coralline never infers it from the main-session model or the agent role. Known
Claude IDs are shortened (claude-haiku-4-5-… → Haiku 4.5), while unknown or
gateway IDs such as gpt-5.6-luna are shown verbatim.
Enable or disable the renderer directly:
bash ~/.claude/coralline/configure.sh --subagent-rows=on
bash ~/.claude/coralline/configure.sh --subagent-rows=offThe setup wizard offers the same toggle. Disabling removes only the
subagentStatusLine entry and preserves every other Claude setting.
On PowerShell-only Windows, rerun the native one-line installer below with
$subagentRows="on" or $subagentRows="off". Its default
$subagentRows="preserve" leaves any existing subagentStatusLine untouched.
Per-task model and contextWindowSize need Claude Code v2.1.205+. Missing
fields degrade one segment at a time: no model hides only the model segment;
tokenCount still renders as a bare count without contextWindowSize; and the
rest of the row remains themed. Refresh is panel-event-driven rather than a
fixed one-second poll, so elapsed time changes when Claude Code redraws the
panel.
Live payloads currently expose no per-task effort. coralline does not reuse
the main-session effort or guess from the role; effort can be added only if
Claude Code exposes it later. The panel's native main-session row remains
visible because it is outside the subagentStatusLine protocol; only the
subagent rows are replaced and themed.
VL_SUB_SEGMENTS (default "name model ctx elapsed") picks and orders the row
segments. These four are the complete set:
| Segment | Shows | Hidden when |
|---|---|---|
name |
task identity plus task label: explicit name and sidecar agentType compose when both exist, followed by payload label or description; type is the final fallback; colored by status via VL_FG_SUB_* — running: text color, completed: ok, failed: hot, missing/unknown: dim |
every source is empty or unavailable |
model |
◆ model from Claude Code's per-task payload; known Claude IDs are shortened and unknown/gateway IDs are shown verbatim |
model not resolved yet, or pre-v2.1.205 |
ctx |
⬡ context gauge + token count; bare count without contextWindowSize |
no tokenCount |
elapsed |
⧖ wall-clock since startTime, shown to the second (epoch s/ms or UTC ISO) |
startTime missing or unparseable |
The renderer shares your config file but reads only the knobs that shape a row:
VL_STYLE with its per-style knobs — the pill caps and separator (VL_CAP_L,
VL_CAP_R, VL_SEP) and the lean/classic family (VL_LEAN_SEP, VL_LEAN_BG,
VL_LEAN_CAP_L/VL_LEAN_CAP_R, VL_LEAN_FG, VL_BG_BAR) — VL_ASCII,
VL_NAME_MAX (recommended — panel labels are long, and overlong rows are
clipped from the right, hiding model/ctx first), the gauge knobs
(VL_BAR_WIDTH, VL_BAR_FILL, VL_BAR_EMPTY, VL_CTX_GLYPH, VL_WARN_PCT,
VL_HOT_PCT),
the shared palette (VL_FG_TEXT, VL_FG_DIM, VL_FG_OK, VL_FG_WARN,
VL_FG_HOT), the row colors VL_BG_SUB_NAME / VL_BG_SUB_MODEL /
VL_BG_SUB_CTX / VL_BG_SUB_ELAPSED (empty = fall back to VL_BG_DIR /
VL_BG_MODEL / VL_BG_CTX / VL_BG_DURATION), and the name pill's per-status
text colors VL_FG_SUB_TEXT / VL_FG_SUB_OK / VL_FG_SUB_HOT /
VL_FG_SUB_DIM (empty = fall back to VL_FG_TEXT / VL_FG_OK / VL_FG_HOT /
VL_FG_DIM). The main palette is tuned for the gauge segments' dark ground, so
the built-in defaults and every bundled theme give the name pill that same dark
ground via VL_BG_SUB_NAME and keep the theme's own light inks; without it the
completed, failed, and unknown tints drop as low as 1.0:1 on a light pill. The
targets are checked against both that pill and the uniform bar VL_STYLE="classic"
paints instead. Setting VL_BG_SUB_NAME="" restores the light pill.
Everything else —
VL_SEGMENTS*, layout (VL_LAYOUT, VL_MAX_LINES, VL_WRAP_MARGIN), clock,
cost, lines, float, limit-sync, burn, git, and the runtime segments — is
main-bar-only and ignored here. To theme panel rows independently of the main
bar, point the registration at its own config file. For example, the Bash
registration can use:
CORALLINE_CONFIG=~/.claude/coralline-subagent.conf bash ~/.claude/coralline/statusline.sh --subagent.
The native renderer honors the same CORALLINE_CONFIG environment variable.
On macOS, Linux, and Windows environments with Bash, the install routes use install.sh.
PowerShell-only Windows uses the recommended native install.ps1 route under
Windows without Git Bash. It needs only Windows PowerShell 5.1:
no Bash, Git, jq, WSL, or archive extractor.
Bash requirements:
jqand a Nerd Font terminal. No Nerd Font? SetVL_ASCII=1in your config for a glyph-free rendering. The native PowerShell renderer below does not requirejq.
Paste this into Claude Code:
Please install coralline for me:
fetch https://raw.githubusercontent.com/Nanako0129/coralline/main/INSTALL.md
and follow the playbook in it.
Claude checks the environment first. In a Bash environment it uses install.sh, interviews
you, and can open the visual wizard. On PowerShell-only Windows it uses install.ps1, which
installs the native renderer and themes but does not provide a wizard or create
coralline.conf.
If your Claude flags the playbook and wants to inspect things first, that is the right instinct, not an obstacle: see Trust and security.
Run the Bash installer in your terminal:
curl -fsSL https://raw.githubusercontent.com/Nanako0129/coralline/main/install.sh | bashWhen run interactively it asks which version to install — the latest tagged release
(recommended) or main (latest development). To skip the prompt, pin one explicitly with
--ref, e.g. ... | bash -s -- --ref v0.9.1 or --ref main.
git clone https://github.com/Nanako0129/coralline ~/.claude/coralline-src
mkdir -p ~/.claude/coralline/themes
cp ~/.claude/coralline-src/statusline.sh ~/.claude/coralline/
cp ~/.claude/coralline-src/configure.sh ~/.claude/coralline/
cp ~/.claude/coralline-src/install.sh ~/.claude/coralline/

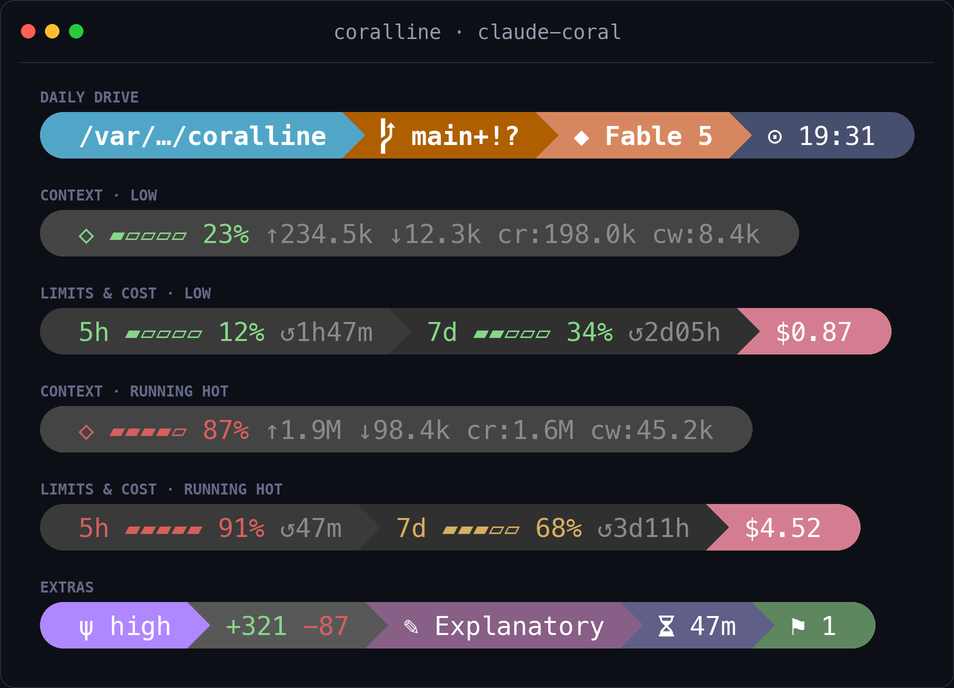

cp ~/.claude/coralline-src/themes/claude-coral.conf ~/.claude/coralline/themes/Then add to ~/.claude/settings.json:
{
"statusLine": {
"type": "command",
"command": "bash ~/.claude/coralline/statusline.sh",
"refreshInterval": 1
}
}Note: the commands above copy only the
claude-coraltheme. The Ask-Claude and one-line installers bundle every theme; after a manual install, copy the rest of~/.claude/coralline-src/themes/*.confinto~/.claude/coralline/themes/to switch themes.
statusline.sh needs a bash to run it, so a PowerShell-only Windows machine (no Git for
Windows, no WSL) cannot use it at all — install.sh is itself a bash script. statusline.ps1 is
a native Windows PowerShell 5.1 port that needs neither: no bash, no jq, only git.exe on
PATH for the git/stash/project segments (already required for those segments in the bash
version too).
It reads the exact same ~/.claude/coralline.conf (and theme file) a bash install already
wrote, so nothing about the config format changes; only the renderer is new. The native main
bar supports the same segments, pill/lean/classic styles, fixed/auto layouts, burn
history, limit sync, float publication, and themed --subagent panel rows as the bash
renderer.
The following is the mutable main one-line installer. It resolves main to a commit SHA,
downloads install.ps1 from that SHA with a bounded HttpWebRequest, parses it before
execution, and launches the absolute $PSHOME\powershell.exe with the same SHA:
& { $ErrorActionPreference='Stop';$repo='Nanako0129/coralline';$ref='main';$subagentRows="preserve";if($subagentRows -cnotin @("preserve","on","off")){throw "invalid SubagentRows"};if($repo -notmatch '^[A-Za-z0-9](?:[A-Za-z0-9-]{0,38})/[A-Za-z0-9._-]{1,100}$' -or $ref -notmatch '^[A-Za-z0-9][A-Za-z0-9._/-]*$' -or $ref.Length -gt 200 -or $ref.Contains('..') -or $ref.Contains('//') -or $ref.Contains('@{') -or $ref.EndsWith('/') -or $ref.EndsWith('.') -or $ref -match '(?i)(^|/)[^/]*\.lock($|/)'){throw 'invalid Repo or Ref'};$safe={param([string]$p,[string]$label,[bool]$cmd=$false);if([string]::IsNullOrWhiteSpace($p) -or $p -match '[\x00-\x1f\x7f-\x9f]' -or $p.StartsWith('\\') -or $p.StartsWith('//') -or $p.IndexOf(':',2) -ge 0){throw "$label is not a safe local path"};$full=[IO.Path]::GetFullPath($p).Replace('/','\');$root=[IO.Path]::GetPathRoot($full);if($root -notmatch '^[A-Za-z]:\\$'){throw "$label is not on a local drive"};$drive=New-Object IO.DriveInfo($root);if($drive.DriveType -eq [IO.DriveType]::Network){throw "$label is on a network drive"};if($cmd -and ($full.Contains('"') -or $full.Contains('%') -or $full.Contains('!'))){throw "$label is not cmd-safe"};$current=$root;foreach($part in $full.Substring($root.Length).Split(@([char]'\'),[StringSplitOptions]::RemoveEmptyEntries)){$current=[IO.Path]::Combine($current,$part);$item=Get-Item -LiteralPath $current -Force -ErrorAction SilentlyContinue;if($null -eq $item){break};if(($item.Attributes -band [IO.FileAttributes]::ReparsePoint) -ne 0){throw "$label contains a reparse point"}};if($full.Length -gt $root.Length){$full=$full.TrimEnd('\')};return $full};$fetch={param([uri]$uri,[long]$cap,[string]$label);if($uri.Scheme -cne 'https' -or ($uri.Host -cne 'api.github.com' -and $uri.Host -cne 'raw.githubusercontent.com') -or $uri.UserInfo -or $uri.Query -or $uri.Fragment){throw "unexpected $label URI"};$request=[Net.HttpWebRequest]::Create($uri);$request.Method='GET';$request.AllowAutoRedirect=$false;$request.Timeout=15000;$request.ReadWriteTimeout=15000;$request.UserAgent='coralline-bootstrap';$response=$null;try{$response=[Net.HttpWebResponse]$request.GetResponse();if($response.StatusCode -ne [Net.HttpStatusCode]::OK -or $response.ResponseUri.AbsoluteUri -cne $uri.AbsoluteUri){throw "$label request failed or redirected"};if($response.ContentLength -gt $cap){throw "$label Content-Length exceeds limit"};$input=$response.GetResponseStream();$memory=New-Object IO.MemoryStream;try{$buffer=New-Object byte[] 8192;$total=0L;while(($read=$input.Read($buffer,0,$buffer.Length)) -gt 0){$total+=$read;if($total -gt $cap){throw "$label stream exceeds limit"};$memory.Write($buffer,0,$read)};if($response.ContentLength -ge 0 -and $total -ne $response.ContentLength){throw "$label download was truncated"};return ,$memory.ToArray()}finally{if($null -ne $input){$input.Dispose()};$memory.Dispose()}}finally{if($null -ne $response){$response.Dispose()}}};$old=[Net.ServicePointManager]::SecurityProtocol;$tmp=$null;$made=$false;$code=0;try{[Net.ServicePointManager]::SecurityProtocol=[Net.SecurityProtocolType]::Tls12;$parts=$repo.Split('/');$commit=$ref;if($commit -cnotmatch '^[0-9a-f]{40}$'){$api=[uri]('https://api.github.com/repos/'+[uri]::EscapeDataString($parts[0])+'/'+[uri]::EscapeDataString($parts[1])+'/commits/'+[uri]::EscapeDataString($ref));$strict=New-Object Text.UTF8Encoding($false,$true);try{$payload=$strict.GetString((& $fetch $api 1MB 'commit resolution'))|ConvertFrom-Json}catch{throw ('commit resolution response is invalid: '+$_.Exception.Message)};if($null -eq $payload -or $payload.PSObject.Properties.Name -notcontains 'sha'){throw 'commit resolution response has no sha'};$commit=[string]$payload.sha;if($commit -cnotmatch '^[0-9a-f]{40}$'){throw 'commit resolution returned an invalid sha'}};$uri=[uri]('https://raw.githubusercontent.com/'+[uri]::EscapeDataString($parts[0])+'/'+[uri]::EscapeDataString($parts[1])+'/'+$commit+'/install.ps1');$bytes=& $fetch $uri 1MB 'installer';$tempRoot=& $safe ([IO.Path]::GetTempPath()) 'TEMP';$tmp=& $safe ([IO.Path]::Combine($tempRoot,('coralline-install-'+[guid]::NewGuid().ToString('N')+'.ps1'))) 'installer temp';$output=[IO.File]::Open($tmp,[IO.FileMode]::CreateNew,[IO.FileAccess]::Write,[IO.FileShare]::None);$made=$true;try{$output.Write($bytes,0,$bytes.Length);$output.Flush($true)}finally{$output.Dispose()};$checked=& $safe $tmp 'downloaded installer';if($checked -cne $tmp){throw 'installer temp identity changed'};$tokens=$null;$errors=$null;[void][Management.Automation.Language.Parser]::ParseFile($tmp,[ref]$tokens,[ref]$errors);if($errors.Count -ne 0){throw ('downloaded installer parse failed: '+$errors[0].Message)};$exe=& $safe ([IO.Path]::Combine($PSHOME,'powershell.exe')) 'PowerShell executable' $true;if(-not [IO.File]::Exists($exe)){throw 'trusted powershell.exe is missing'};$psi=New-Object Diagnostics.ProcessStartInfo;$psi.FileName=$exe;$psi.UseShellExecute=$false;$psi.Arguments='-NoLogo -NoProfile -NonInteractive -ExecutionPolicy Bypass -File "'+$tmp+'" -Repo "'+$repo+'" -Ref "'+$commit+'"';$psi.Arguments+=" -SubagentRows "+[char]34+$subagentRows+[char]34;$process=New-Object Diagnostics.Process;$process.StartInfo=$psi;try{if(-not $process.Start()){throw 'installer child did not start'};$process.WaitForExit();$code=$process.ExitCode}finally{$process.Dispose()}}finally{[Net.ServicePointManager]::SecurityProtocol=$old;if($made -and $null -ne $tmp -and [IO.File]::Exists($tmp)){$checked=& $safe $tmp 'installer cleanup';if($checked -cne $tmp){throw 'refusing unexpected cleanup path'};$item=Get-Item -LiteralPath $tmp -Force;if(($item.Attributes -band [IO.FileAttributes]::ReparsePoint) -ne 0){throw 'refusing reparse-point cleanup'};[IO.File]::Delete($tmp)}};if($code -ne 0){exit $code} }For an audited release or commit, copy the same line and replace only
$ref='main' with $ref='AUDITED_TAG_OR_40_CHARACTER_COMMIT_SHA'. A tag names a release but
can technically be moved; only an audited 40-character commit SHA makes the bootstrap URL
immutable. The bootstrap resolves a mutable name or tag before downloading executable code,
then the installer downloads every managed file from that same commit.
install.ps1 installs statusline.ps1 plus all ten themes, then losslessly merges the
exact-case top-level statusLine member in $HOME\.claude\settings.json. The
-SubagentRows preserve|on|off option leaves subagentStatusLine untouched by default,
registers the native statusline.ps1 --subagent command when set to on, or removes only
that exact-case top-level member when set to off. It preserves
$HOME\.claude\coralline.conf byte-for-byte and never creates it. Existing runtime and settings
are backed up with timestamped sibling names when their managed content changes. Installer
invocations are serialized. Single-file runtime rollback refuses to overwrite concurrent edits and
retains displaced installer bytes; multi-file rollback fails closed with current files and backups
left for manual recovery. The exact 11-file payload and merged settings bytes are rechecked before
reporting success.
The atomic settings backup is the actual displaced file, so even an open editor handle that writes
after replacement updates the retained backup instead of losing data. Conflicts observed during
commit make the installer fail without overwriting the external bytes.
Rerun the same command to update. An identical rerun is a true no-op: no managed-file
replacement, settings rewrite, backup, or timestamp change. PowerShell-only installs do not include a
wizard; reuse an existing coralline.conf or edit one manually.
If the one-line bootstrap cannot run, download a GitHub source archive in the browser, inspect it, extract it locally, and run the checked-out installer without network access:
& "$PSHOME\powershell.exe" -NoLogo -NoProfile -NonInteractive -ExecutionPolicy Bypass -File C:\path\to\coralline\install.ps1 -SourceDirectory C:\path\to\coralline -InstallRoot "$HOME\.claude\coralline" -SettingsPath "$HOME\.claude\settings.json" -SubagentRows preserveAll three local-mode paths must be drive-absolute (C:\... or C:/...); drive-relative forms
such as C:folder are rejected.
Run the wizard-written config from a bash install, or write ~/.claude/coralline.conf by hand
(see any file under themes/ for the shape); both work with statusline.ps1 unchanged. The
per-process ExecutionPolicy Bypass lets the unsigned local renderer start when the normal
session default would otherwise be Restricted; it does not change any persisted policy, and
an enforced Group Policy still takes precedence.
The two installer-driven routes below update Bash-based installs. Either way your
~/.claude/coralline.conf is preserved and the previous statusline.sh is backed up
under ~/.claude/coralline/ (the 3 newest are kept).
Re-run the native one-line under Windows without Git Bash, using
the same Repo and Ref. It atomically replaces only managed files whose bytes changed, merges
the exact managed settings object only when needed, retains timestamped backups, and always
leaves ~/.claude/coralline.conf untouched. Unmanaged files already under the runtime directory,
including burn/limit history, float.txt, and custom themes, remain in place and are never part
of the replacement transaction.
Paste this into Claude Code:
Please update coralline for me:
fetch https://raw.githubusercontent.com/Nanako0129/coralline/main/UPGRADE.md
and follow the playbook in it.
Claude re-runs the installer, reads the "new since your installed copy" report, and offers to turn on any new opt-in features for you.
Re-run the installer — it prints a short "new since your installed copy" report when something new shipped:
curl -fsSL https://raw.githubusercontent.com/Nanako0129/coralline/main/install.sh | bash -s -- --install-onlyThe Ask-Claude install is a remote document that instructs an AI to run curl | bash and
touch ~/.claude/settings.json. That shape is exactly what a prompt-injection attack looks
like, so a Claude that red-flags it before proceeding is behaving correctly. The answer to
that skepticism is inspection, not trust:
- Read what runs. Everything is in this repo. Bash environments use
install.sh; PowerShell-only Windows uses install.ps1.
INSTALL.md routes the AI between them. The PowerShell bootstrap is not
irm | iex: it bounds and parses a temporary installer, then launches it as a file. - Pin a release.
... | bash -s -- --ref v0.9.1installs a tagged release instead ofmain, so what you audited is what you run. The interactive installer already offers the latest tag by default. - What gets written, exactly: Bash setup writes its runtime, your approved config, and
Claude settings as described above. The native installer writes only
statusline.ps1and ten themes under~/.claude/coralline, plus the exact top-levelstatusLinevalue insettings.json. It never creates or editscoralline.conf;subagentStatusLineis preserved unless the explicit native opt-in or opt-out is selected. Changed existing runtime/settings get timestamped sibling backups. - What runs afterwards: the registered Bash or PowerShell renderer runs on every prompt
and makes zero network requests. The native command quotes the absolute trusted
$PSHOME\powershell.exeand the absolute renderer path; it never searches the workspace forpowershell.exe. - Why INSTALL.md addresses the AI: humans get the visual wizard, AIs get an interview script, so the playbook speaks to the reader that executes it. A document that opens by addressing your AI deserves scrutiny, which is why every artifact it references lives in this repo where both of you can read it first.
For a Bash-capable install, remove themed subagent rows before deleting the tools:
bash ~/.claude/coralline/configure.sh --subagent-rows=off
rm -rf ~/.claude/coralline ~/.claude/coralline.confThen delete the statusLine block from ~/.claude/settings.json (or restore the newest
settings.json.bak.*). If you skipped the first command, also delete subagentStatusLine.
For a PowerShell-only native archive install, close Claude Code and back up the settings file:
$settings = Join-Path $HOME '.claude\settings.json'
Copy-Item -LiteralPath $settings -Destination "$settings.bak.$(Get-Date -Format yyyyMMddHHmmss)"
notepad.exe $settingsIn Notepad, delete the statusLine object whose command points to
~/.claude/coralline/statusline.ps1. Also delete subagentStatusLine if its command points
into coralline, then save valid JSON. Finally remove the installed runtime and optional config:
Remove-Item -LiteralPath (Join-Path $HOME '.claude\coralline') -Recurse -Force
Remove-Item -LiteralPath (Join-Path $HOME '.claude\coralline.conf') -Force -ErrorAction SilentlyContinueBoth Bash setup paths use the same installer. Humans run it with no mode and get the visual
setup. Claude uses it with --install-only, then follows INSTALL.md to interview you and
write config. The native PowerShell installer has no wizard and never writes config; it reads
the same coralline.conf, which can come from an existing Bash setup or be written manually.
| Mode | Use when |
|---|---|
| Default | You want the coralline default immediately |
| Powerlevel10k import | You already have ~/.p10k.zsh and want to carry over its style, time format, and main colors |
| Visual wizard | You want to preview themes, style, segments, wrapping, clock, and font compatibility before writing config |
Running the installer yourself with no mode opens the interactive setup. Claude should not operate that TUI unless you explicitly ask for visual customization.
Both Bash install paths copy the wizard into ~/.claude/coralline, so Bash-capable users can
rerun it anytime to restyle:
bash ~/.claude/coralline/configure.shPowerShell-only installs do not include a native wizard. Back up and edit
$HOME\.claude\coralline.conf manually, or reuse a config produced on a Bash-capable host.
Point the installer at the same fork:
curl -fsSL https://raw.githubusercontent.com/YOU/coralline/main/install.sh | bash -s -- --repo YOU/corallineFor PowerShell-only Windows, change both $repo and $ref in the native bootstrap. The
bootstrap validates them, resolves a mutable ref before downloading install.ps1, and passes
the resulting commit SHA to the installer for the fixed runtime allowlist.
Everything lives in ~/.claude/coralline.conf (plain bash, sourced by the script):
| Variable | Default | Meaning |
|---|---|---|
VL_STYLE |
pill |
pill: powerline pills · lean: flat colored text · classic: lean on a uniform dark bar (p10k classic) |
VL_LAYOUT |
fixed |
fixed: one line per VL_SEGMENTS* var · auto: responsive |
VL_MAX_LINES |
3 |
auto only — wrap into at most this many lines (1 = never wrap) |
VL_WRAP_MARGIN |
4 |
auto only — columns kept free on the right so segments never touch the edge |
VL_SEGMENTS |
dir git model ctx limit5h limit7d cost clock |
segments on line 1, in order (the full list in auto mode) |
VL_SEGMENTS2 / VL_SEGMENTS3 |
(empty) | fixed only — optional second/third line |
VL_CLOCK |
12h |
12h / 24h / off |
VL_CLOCK_SECONDS |
1 |
show seconds in the clock |
VL_BAR_WIDTH |
5 |
gauge width in cells |
VL_BAR_FILL / VL_BAR_EMPTY |
▰ / ▱ |
gauge glyphs |
VL_CTX_GLYPH |
⬡ |
glyph for the ctx segment |
VL_PROJECT_GLYPH |
⬢ |
glyph for the project segment |
VL_PATH_DEPTH |
4 |
collapse paths deeper than this |
VL_NAME_MAX |
0 |
max chars for the project / git names before … truncation (0 = off) |
VL_COST_DECIMALS |
2 |
decimal places for the cost segment |
VL_CTX_ALWAYS_SHOW |
0 |
1 = show an object JSON payload's missing, null, or exact-empty context value as a 0% gauge with zero token counts; malformed or non-object payloads do not trigger it, and non-empty context values keep normal percentage handling |
VL_COST_ALWAYS_SHOW |
0 |
1 = show an object JSON payload's missing, null, or exact-empty cost as $0.00; invalid types and values stay hidden |
VL_WARN_PCT / VL_HOT_PCT |
50 / 75 |
gauge color thresholds |
VL_ASCII |
0 |
1 disables Nerd Font glyphs |
VL_RUNTIME_PROBE |
0 |
node / python: 1 = also detect via node / python3 on PATH when no pin file (forks per render) |
VL_BG_* / VL_FG_* |
theme | colors — 256-color index or "R,G,B" |
The four glyph settings above — VL_BAR_FILL, VL_BAR_EMPTY, VL_CTX_GLYPH,
VL_PROJECT_GLYPH — are plain Unicode, not Nerd Font icons, so Nerd Fonts does not patch
them in and a font that lacks them leaves the substitution to your terminal's own font
fallback. If the substitute is wider than one cell it shoves the rest of the row out
of alignment — a squashed gauge, or a missing space before the percentage. Override them
with characters your terminal font actually carries. ▪ / ▫ for the gauge and ◔ for
ctx are present at exactly one cell in both Meslo and JetBrainsMono Nerd Font:
VL_BAR_FILL="▪" ; VL_BAR_EMPTY="▫" ; VL_CTX_GLYPH="◔"
Off by default. Add burn to VL_SEGMENTS to show a "range to empty" — the projected
time until whichever rate limit (5h or 7d) binds first, e.g. ↗ 5h ⇢ 1h58m. Keys:
CORALLINE_BURN_WINDOW (recent-slope lookback, default 600s), VL_BURN_GLYPH (default
↗), VL_BG_BURN (defaults to the 5h background). While burn is in the segment list,
coralline writes samples to ~/.claude/coralline/burn-5h.tsv; drop it from the list and
nothing is written.
The ETA is coloured by urgency against the window reset, and collapses to a glyph when a number would be noise:
| You see | When |
|---|---|
↗ 5h ⇢ 1h58m red |
you'd empty before the window resets |
↗ 5h ⇢ 1h58m yellow |
reset and empty are a close call |
↗ 5h ⇢ 1h58m green |
the window resets with room to spare |
bright ↗ ✓ |
at this pace a full window can't run dry — a number like 24d15h would just be noise |
dim ↗ ✓ |
idle: you've stopped burning, nothing in flight |
dim ↗ … |
warming up: a cold start with no samples yet (deliberately not a green check, so a fresh install doesn't read as healthy) |
The label tells you which limit binds — whichever of 5h/7d will hit 100% soonest.
5h only appears once you're burning hard enough to register at least two integer-%
steps within the recent window; at a light or steady pace there's no short-term slope to
fit, so the 7d projection binds and you see ↗ 7d.
VL_LIMIT_SYNC=1 helps a session that is lagging a window boundary catch up to one that has already rolled over. Each render records its 5h / 7d value to a small per-host store (limit-5h.d / limit-7d.d), and a session that holds a valid but older window follows a stored reading for a newer one. Off by default.
Your own reading always wins your own window. The store is what a session falls back to when it has no reading of its own: the payload carries rate limits only after the session has received an API response, so a freshly started, resumed, or idle session would otherwise draw no gauge at all even though the account-level window is known. The store only ever holds windows that are still open, and a reading stops standing in for the current window once its own window closed more than six hours ago for 5h or eight days ago for 7d. Those are the same ceilings that validate a future reset, so they carry the same skew margin over the nominal window.
This exists because Claude Code re-renders a session's statusline only when that session is active, and the rate-limit numbers it passes are that session's last-seen values, so a session lagging a window boundary shows a stale one. It cannot refresh a session that is not redrawing at all.
Your own reading is never overridden by another session's. Sync will not replace your reading with a higher one from elsewhere. A percentage can legitimately fall inside a single window (an upstream limit reset, a plan upgrade, any server-side adjustment) and nothing in the payload timestamps an observation, so a stale high reading is indistinguishable from a current one.
The store wins in exactly two cases: it holds a strictly newer window, which is the roll-over catch-up, or you have no reading at all, where there is nothing of yours to prefer and the alternative is drawing no gauge for a window your account is plainly inside. A borrowed value is always for the window that is currently open, because an entry is admitted only while its reset is still ahead and every entry it outranks is retired. It is the highest percentage any session recorded for that window, so it over-estimates while sessions disagree.
It only updates on redraw. It cannot refresh a session that is not redrawing at all, and "latest known" is only as fresh as your most recently active session. coralline has no API access. So this narrows the gap between sessions, it does not make a fully idle bar live.
A single session gains only the fallback, where its own earlier renders keep the gauge populated across a restart or resume; the catch-up needs a second session to catch up to. So it stays opt-in.
With VL_LAYOUT="auto" the bar stays on a single line while it fits, and greedily wraps into
up to VL_MAX_LINES rows when the window gets narrow. Once the line cap is reached, remaining
segments overflow on the last line. VL_WRAP_MARGIN keeps a few columns free on the right so
wrapped lines never butt against the window edge — raise it if your terminal adds padding.
Width comes from $COLUMNS. Claude Code v2.1.153+ sets COLUMNS to the current terminal width
before running the status line, so wrapping responds to window resizing out of the box. Outside
Claude Code the script falls back to stty size on the controlling terminal; if neither is
available it stays on one line.
wide window: ~/dev/app ⎇ main ◆ Fable 5 ⬡ ▰▰▰▱▱ 62% 5h ▰▰▱▱▱ 41% $1.23 ⊙ 14:45
narrow window: ~/dev/app ⎇ main ◆ Fable 5
⬡ ▰▰▰▱▱ 62% 5h ▰▰▱▱▱ 41% $1.23 ⊙ 14:45
Prefer a layout that never moves? Keep VL_LAYOUT="fixed" and pin rows with
VL_SEGMENTS / VL_SEGMENTS2 / VL_SEGMENTS3.

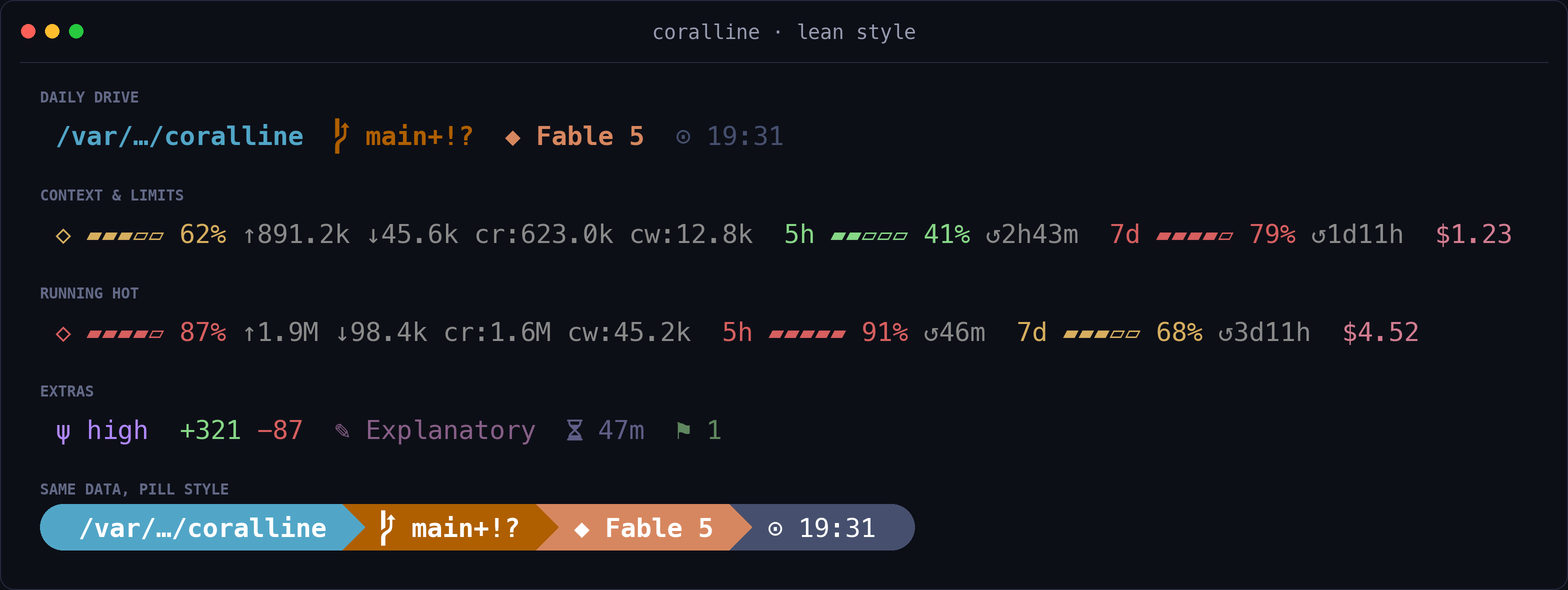

Prefer Powerlevel10k's lean look — no backgrounds, just colored text? Set
VL_STYLE="lean" and each segment's VL_BG_* color becomes its text accent instead:
| Variable | Default | Meaning |
|---|---|---|
VL_STYLE |
pill |
set to lean for the flat look |
VL_LEAN_SEP |
(empty) | extra text between segments, e.g. · |
VL_LEAN_FG |
(empty) | force a text color; empty = inherit each segment's accent |
VL_LEAN_BG |
(empty) | paint one uniform background behind the row — "R,G,B" or 256 index. For the full p10k classic look, prefer the VL_STYLE="classic" preset below — it wires this up for you |
VL_LEAN_CAP_R |
(empty) | trailing cap glyph drawn in the VL_LEAN_BG color to bevel the bar's end into the terminal (p10k's end separator, e.g. $''); needs VL_LEAN_BG |
VL_LEAN_CAP_L |
(empty) | leading cap glyph — the left-facing mirror of VL_LEAN_CAP_R at the bar's start (e.g. $''); needs VL_LEAN_BG. Stock p10k classic leaves it flat |
Tip: already a p10k user? Tell the AI installer or the visual wizard to import your
~/.p10k.zsh— it will carry over your style, colors, and time format after you opt in. See the AI interview notes in INSTALL.md.

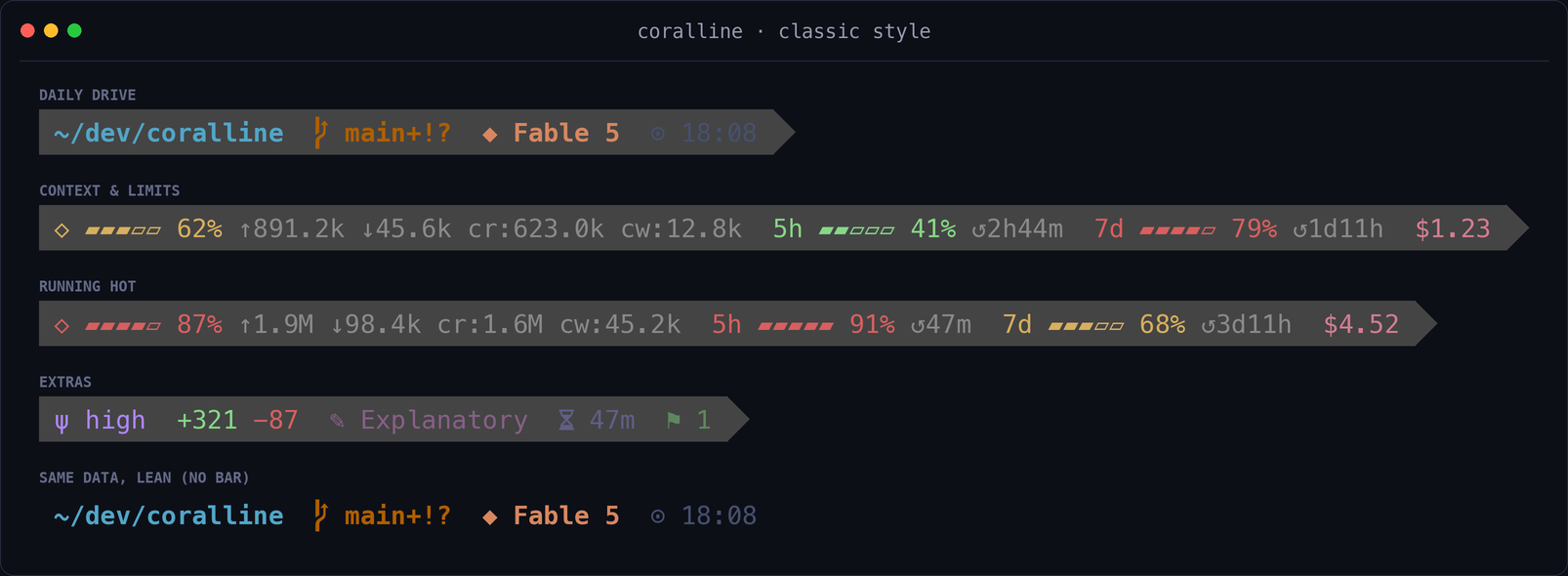

Want Powerlevel10k's stock classic prompt — one uniform dark bar with colored
text and a solid end cap? Set VL_STYLE="classic". It's a one-word preset: it
renders like lean on a dark bar (p10k's POWERLEVEL9K_BACKGROUND) with a
trailing powerline cap, no other knobs required.
| Variable | Default | Meaning |
|---|---|---|
VL_STYLE |
pill |
set to classic for the p10k dark-bar look |
VL_BG_BAR |
(empty → 238) |
the uniform bar color behind the row — "R,G,B" or 256 index. Any theme's palette rides this bar; grayscale palettes (e.g. mono) want an explicit VL_BG_BAR for contrast |
Under the hood classic is lean plus a VL_LEAN_BG (from VL_BG_BAR) and a
VL_LEAN_CAP_R end cap, so an explicit VL_LEAN_BG or cap still wins. Importing
a p10k classic config carries over your exact bar color and separator.
VL_FLOAT=1 makes statusline.sh write a one-line plain-text readout to
~/.claude/coralline/float.txt on every render (segments from
VL_FLOAT_SEGMENTS, default model ctx cost). That's all coralline does —
it ships no display carrier. The file is the seam: pipe it wherever you want
a glanceable readout that stays visible without looking at Claude Code's bottom
statusline (a terminal status bar, tmux, a menu-bar app, …).
The readout is plain text (no ANSI color), so the default favors stable,
glance-friendly segments and leaves the color-driven limit warnings
(limit5h / limit7d) in the bottom statusline, where threshold colors work.
You can still add them to VL_FLOAT_SEGMENTS if you want the numbers up top.
Config keys
| Key | Default | Meaning |
|---|---|---|
VL_FLOAT |
0 |
1 = write float.txt each render |
VL_FLOAT_SEGMENTS |
model ctx cost |
segments rendered into the readout (plain text, no color) |
VL_FLOAT_SEP |
· |
separator between segments |
VL_FLOAT_FILE |
~/.claude/coralline/float.txt |
where the readout is written |
(Or toggle VL_FLOAT via "float readout" in configure.sh's Details menu.)
A worked iTerm2 carrier (the coralline-float companion + setup steps) lives in
example/float-display-iterm2/ — copy it into
your dotfiles and adapt. Other terminals (tmux, WezTerm, a menu-bar app, …) just
need to read float.txt the same way.

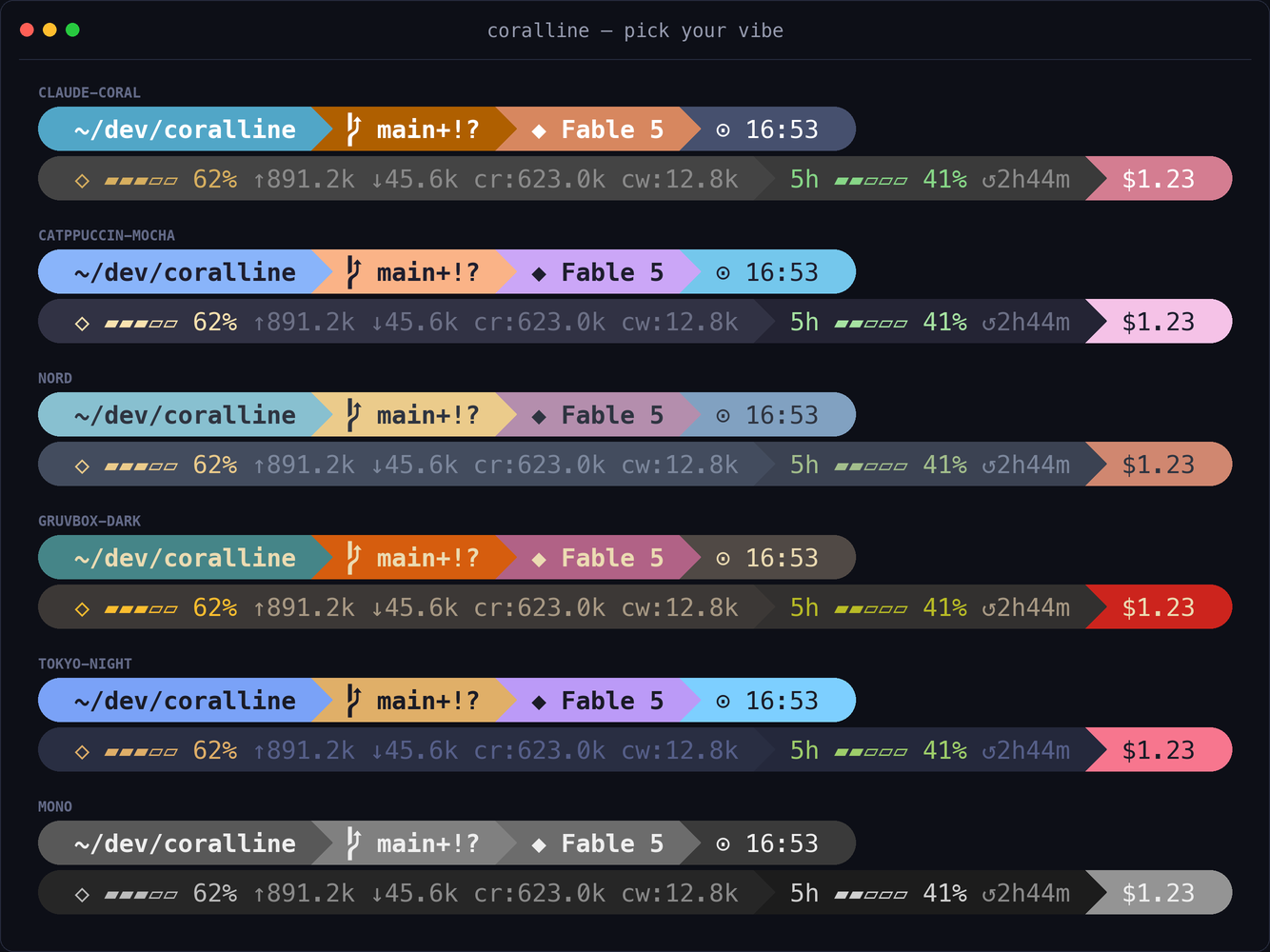

claude-coral — steel blue · mauve · Claude coral (default) |

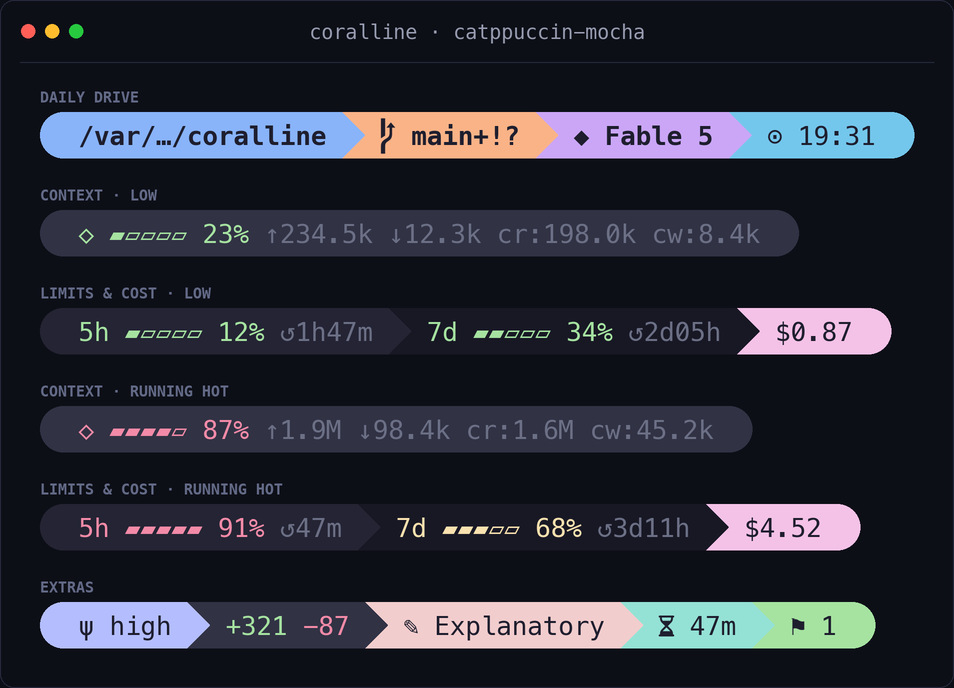

catppuccin-mocha — soft pastels on dark |

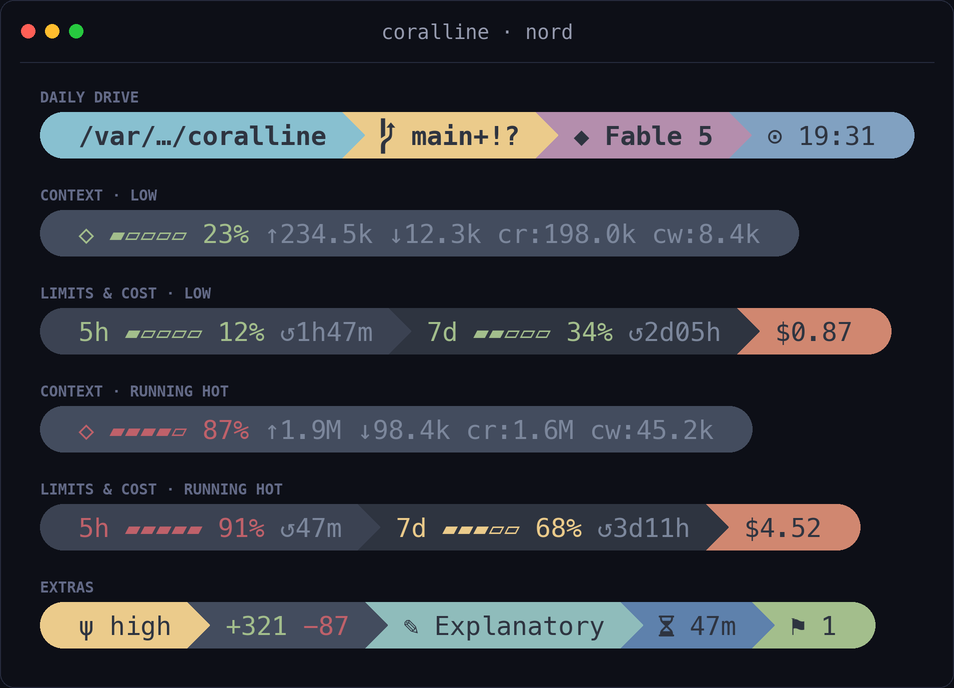

nord — arctic frost |

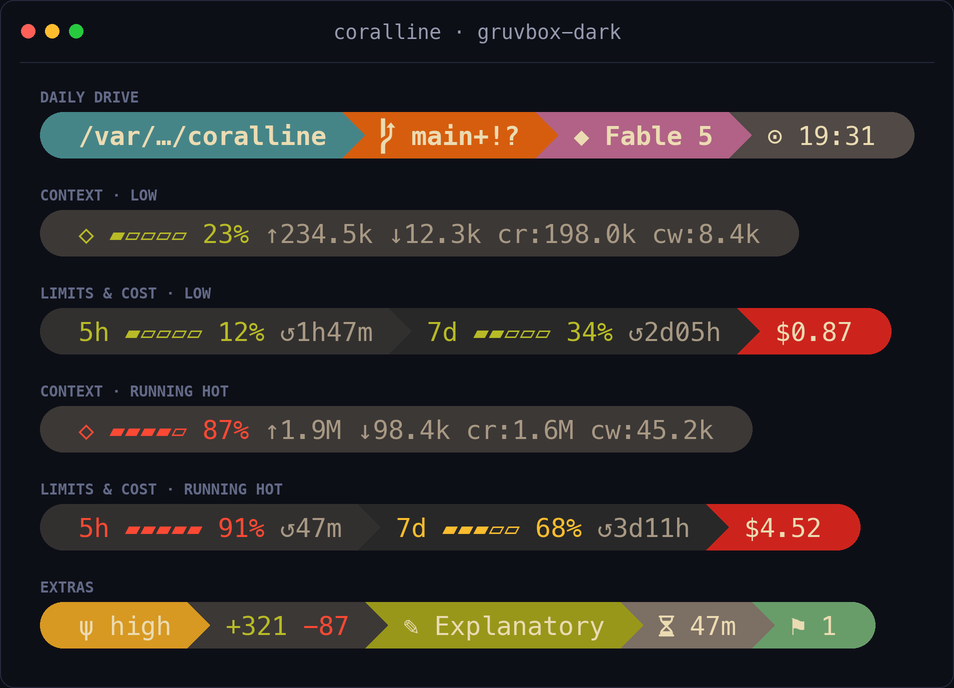

gruvbox-dark — warm retro |

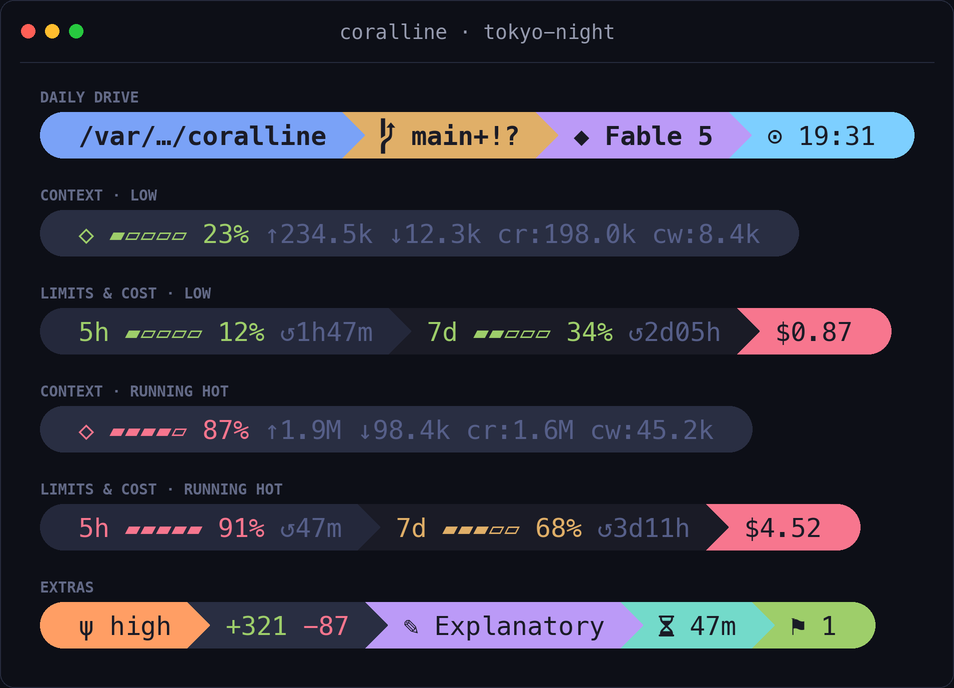

tokyo-night — neon on deep navy |

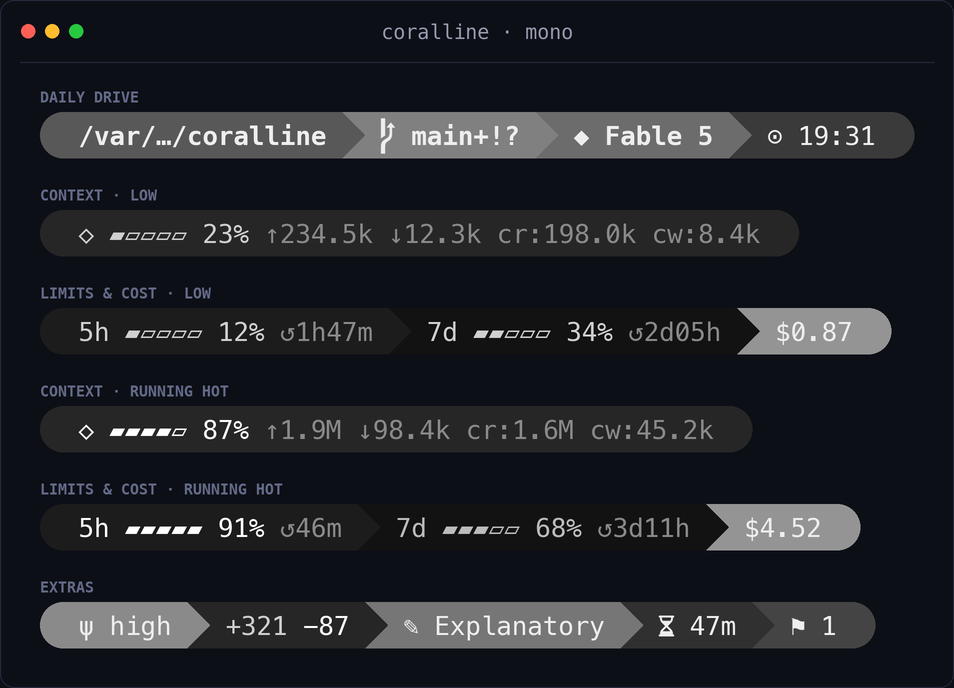

mono — grayscale minimalism |

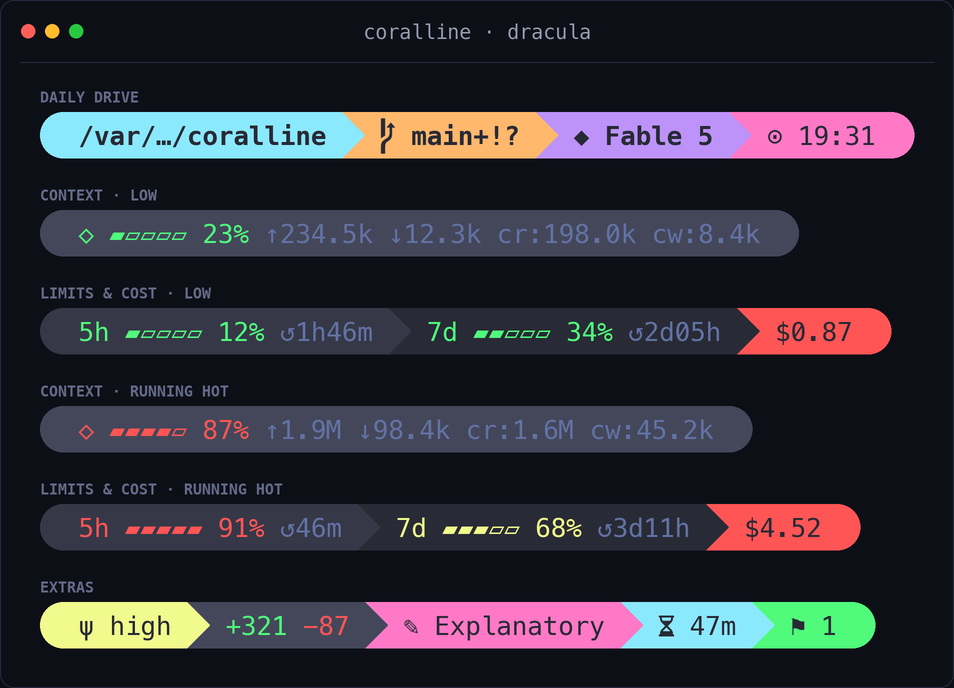

dracula — cyan · pink · purple on charcoal |

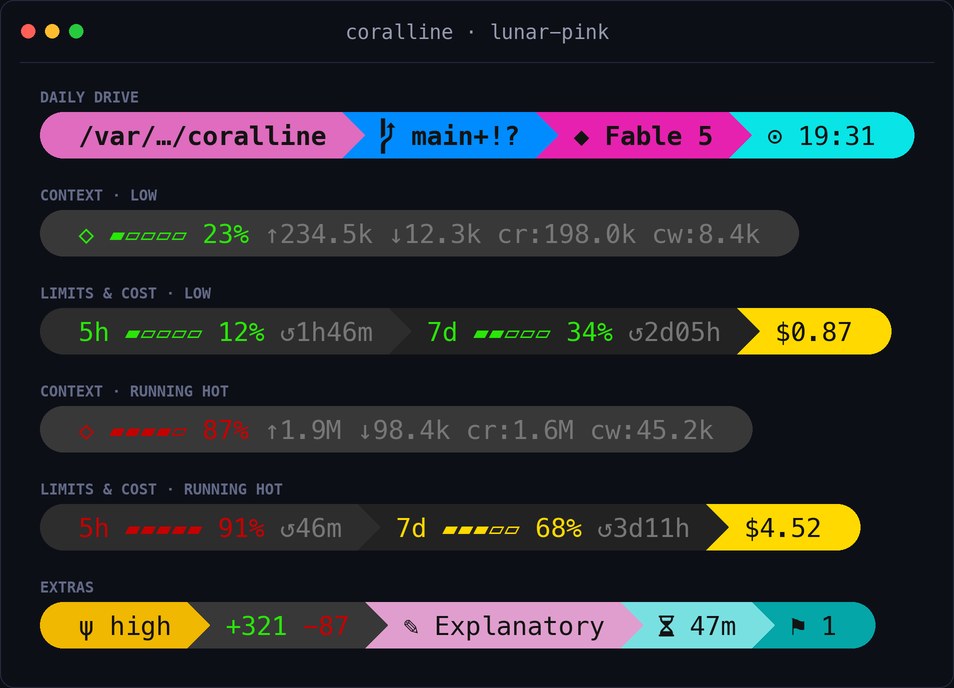

lunar-pink — pink · cyan · yellow on near-black |

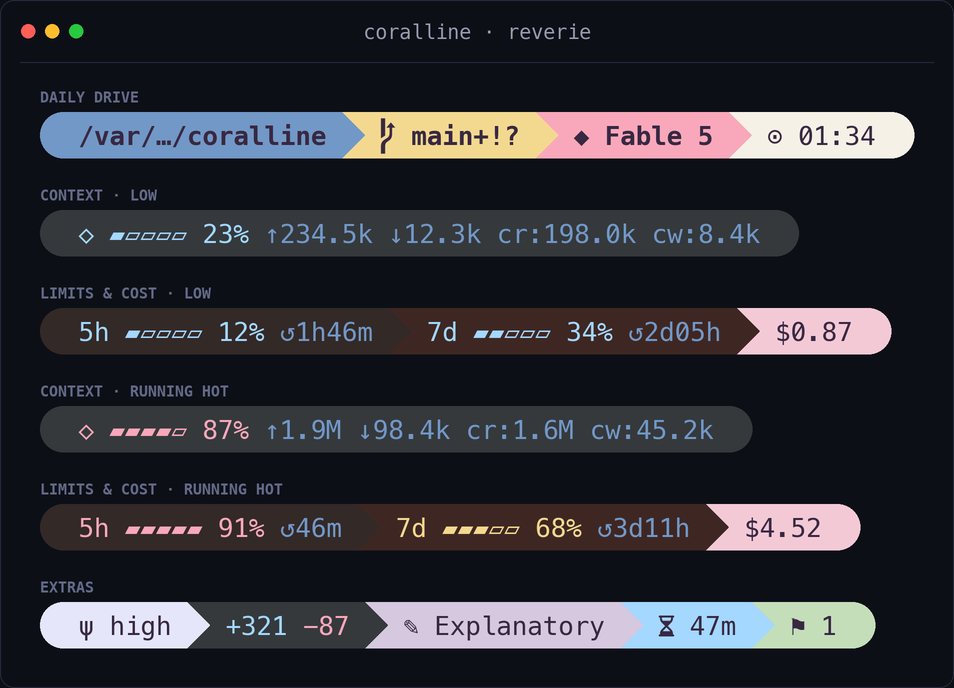

reverie — soft pastels · plum text on warm-dark |

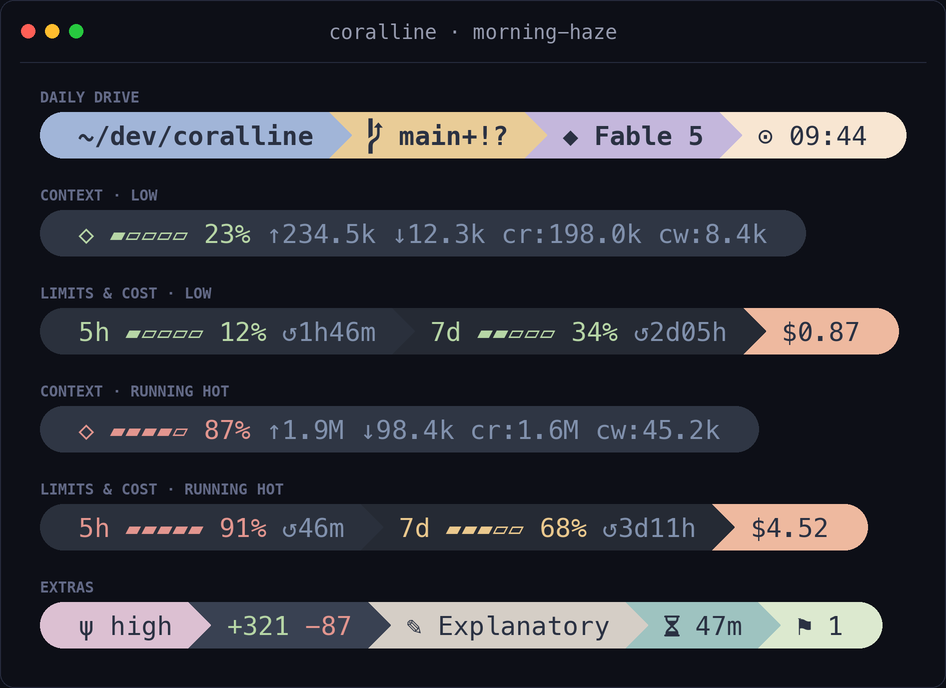

morning-haze — hazy periwinkle · sage · sandstone on slate |
A theme is just a .conf file assigning VL_BG_* / VL_FG_* — copy one, change the colors,
and source yours from coralline.conf instead. PRs with new themes are welcome.
The wizard discovers themes automatically from themes/*.conf and nested collections such as
themes/best-themes/*.conf, so adding a theme file does not require editing configure.sh.
Adding a theme? Copy an existing
.conf, set everyVL_BG_*/VL_FG_*(includingVL_BG_EFFORT;VL_BG_BARis optional — only grayscale palettes need it, to keep the classic bar readable), keep the_VL_SUB_*block at the end (panel-row candidates plus the_VL_SUB_FPfingerprint, which lets a config that retints the palette after sourcing your theme fall back safely), add its name to theTHEMESlist intools/render-screenshots.py, re-run it to generateassets/theme-<name>.png, and add a row to the table above. Please don't regeneratehero.png— it's a fixed sampler of the original six themes, not a full catalog.
| Platform | Status |
|---|---|
| macOS | ✅ supported (works on the stock bash 3.2) |
| Linux | ✅ supported |
| Windows + Git Bash | ✅ supported — Claude Code runs the status line through Git Bash when it's installed |
| Windows without Git Bash | ✅ supported through native Windows PowerShell 5.1 |
Windows note: the native PowerShell renderer needs neither Git Bash nor
jq.git.exeis optional and only enables thegit,stash, andprojectsegments. The interactive wizard remains bash-only; main and themed--subagentrows are native.
The statusline is just a local renderer: it makes no network or API calls and uses zero tokens. Claude Code pipes the session JSON to it on stdin and renders whatever it prints.
The main bar runs every second (refreshInterval: 1), while subagent rows redraw on panel
events. The Bash renderer extracts every field with one jq call; the native PowerShell
renderer parses in-process. Both use at most one git status --porcelain=v2 --branch call per
render, and neither launches per-field subprocesses.
How those numbers are produced, and the measurement traps that produced wrong ones along the way, is written down in BENCHMARK.md.
coralline makes no network or API calls and uses zero tokens at runtime. The maintenance work is elsewhere: tracking Claude Code payload changes, optional live subagent-panel checks, shell regressions, nine-theme screenshot and font QA, and installer verification across macOS, Linux, and Windows with Git Bash.
Sponsorship helps cover the Claude access and maintainer time behind that compatibility work while coralline remains MIT-licensed and free. If the statusline makes your daily sessions clearer, you can support its continued development on Patreon.
The visual language of coralline — segmented pills, powerline transitions, the ⇡⇣ git
glyphs, gauges that shift color as they fill — is a loving tribute to
Powerlevel10k by
@romkatv, which set the bar for what a fast, beautiful prompt
can be. Thanks also to the wider powerline lineage
that started it all, and to Nerd Fonts for the glyphs that make
the pill shapes possible.
As for the name: coralline algae build reefs one thin, colorful layer at a time — and coral·line is exactly what this is: a line, in Claude's coral.
