# Visual CoT: Advancing Multi-Modal Language Models with a Comprehensive Dataset and Benchmark for Chain-of-Thought Reasoning
> Hao Shao, Shengju Qian, Han Xiao, Guanglu Song, Zhuofan Zong, Letian Wang, Yu Liu, Hongsheng Li
This repository contains code for the paper [Visual CoT: Advancing Multi-Modal Language Models with a Comprehensive Dataset and Benchmark for Chain-of-Thought Reasoning](https://arxiv.org/abs/2403.16999) and it was built based on [LLaVA](https://github.com/haotian-liu/LLaVA)
We collect and introduce the Visual CoT dataset comprising 438k question-answer pairs, annotated with intermediate bounding boxes highlighting key regions essential for answering the questions. The work also proposes a multi-turn processing pipeline for the multi-modal language model that dynamically focuses on visual inputs and provides interpretable thoughts. Importantly, the released benchmark is capable of evaluating MLLMs in scenarios requiring specific local region identification.
[Project Page](https://hao-shao.com/projects/viscot.html), [Dataset](https://huggingface.co/datasets/deepcs233/Visual-CoT), [arXiv](https://arxiv.org/abs/2403.16999)
## News
- `[12/22]` We have updated the related images in the VisCoT dataset, now available in the VisCoT [HF repo](https://huggingface.co/datasets/deepcs233/Visual-CoT).
- `[11/26]` We have updated the VisCoT data with detailed reasoning steps [here](https://huggingface.co/datasets/deepcs233/Visual-CoT/tree/main/cot_with_detailed_reasoning_steps) and fixed some bugs.
- `[10/4]` We have established the [webpage](https://hao-shao.com/projects/viscot.html) for this project.
- `[9/27]` [VisCoT](https://arxiv.org/abs/2312.07488) is accepted by Neurps 2024, $${\color{red}Spotlight}$$ 🎉🎉🎉
## Contents
- [Install](#install)
- [Model Zoo](#model_zoo)
- [Train](#train)
- [Evaluation](#evaluation)
- [Visualization](#visualization)
## Install
1. Clone this repository and navigate to Visual-CoT folder
```bash
git clone https://github.com/deepcs233/Visual-CoT.git
cd Visual-CoT
```
2. Install Package
```Shell
conda create -n viscot python=3.10 -y
conda activate viscot
pip install --upgrade pip # enable PEP 660 support
pip install -e .
```
3. Install additional packages for training cases
```
pip install -e ".[train]"
pip install flash-attn --no-build-isolation
```
## Demo
Please refer to https://github.com/haotian-liu/LLaVA/tree/main?tab=readme-ov-file#demo
## Model Zoo

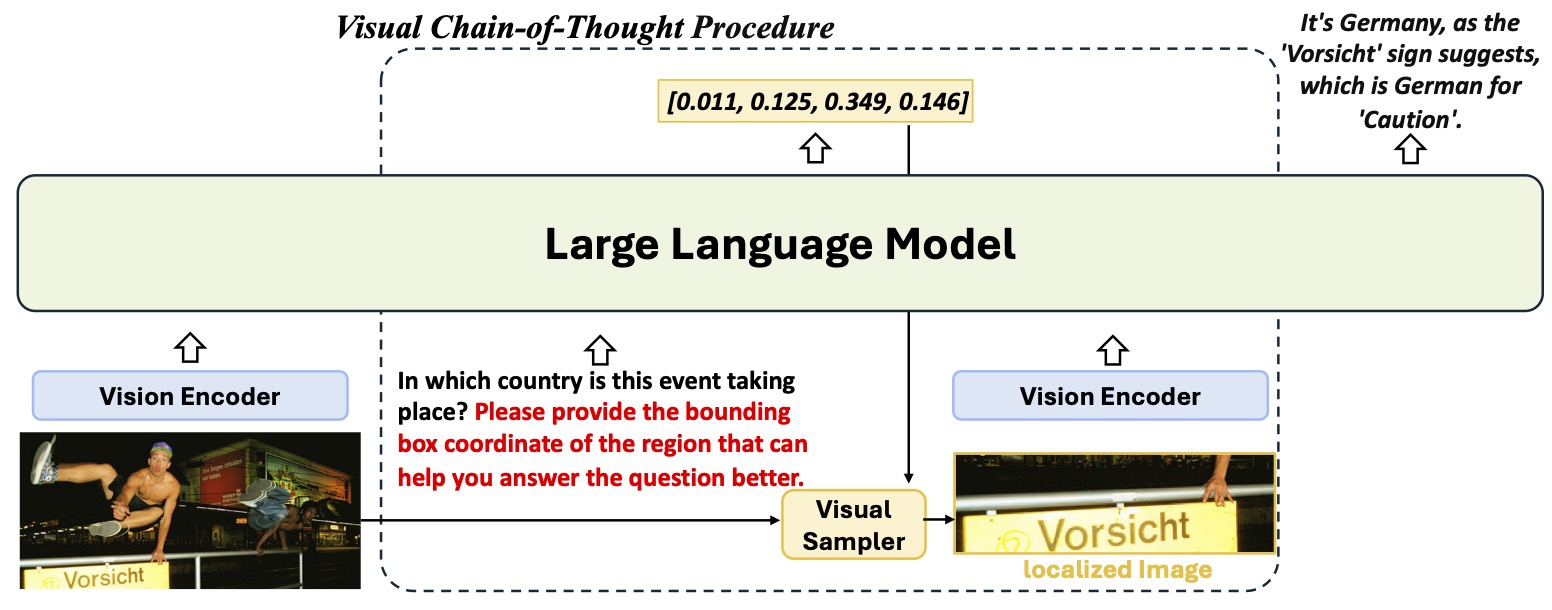

> We propose a novel multi-turn processing pipeline for MLLMs that can dynamically focus on visual inputs and provide intermediate interpretable thoughts.
The model weights below are merged weights. You do not need to apply delta. The usage of VisCoT checkpoints should comply with the base LLM's model license.
| Version | Size | Resolution | Checkpoint |
|----------|----------|-----------|-----------|
| VisCoT | 7B | 224 | [deepcs233/VisCoT-7b-224](https://huggingface.co/deepcs233/VisCoT-7b-224) |
| VisCoT | 7B | 336 | [deepcs233/VisCoT-7b-336](https://huggingface.co/deepcs233/VisCoT-7b-336) |
| VisCoT | 13B | 224 | [deepcs233/VisCoT-13b-224](https://huggingface.co/deepcs233/VisCoT-13b-224) |
| VisCoT | 13B | 336 | [deepcs233/VisCoT-13b-336](https://huggingface.co/deepcs233/VisCoT-13b-336) |
## Train
**Our training steps are largely consistent with LLaVA; for further details, please refer to the LLaVA documentation/issues.**
VisCoT training consists of two stages: (1) feature alignment stage: use our 558K subset of the LAION-CC-SBU dataset to connect a *frozen pretrained* vision encoder to a *frozen LLM*; (2) visual instruction tuning stage: use 665K dataset including multimodal instruction-following data and academic VQA tasks from LLaVA-1.5, 1.4M dataset with positional annotations from Shikra, and 373K visual CoT dataset from ours, to teach the model to follow multimodal instructions and obtain the visual CoTExcerpt of 13,467 characters
