A throughput-oriented high-performance serving framework for LLMs
| Date | Stars |
|---|---|
| 2026-07-31 | 971 |
| 2026-08-06 | 971 |
Today
— stars today
This week
— stars this week
This month
— stars this month
Momentum
0.0
growth rate 0.00%/day

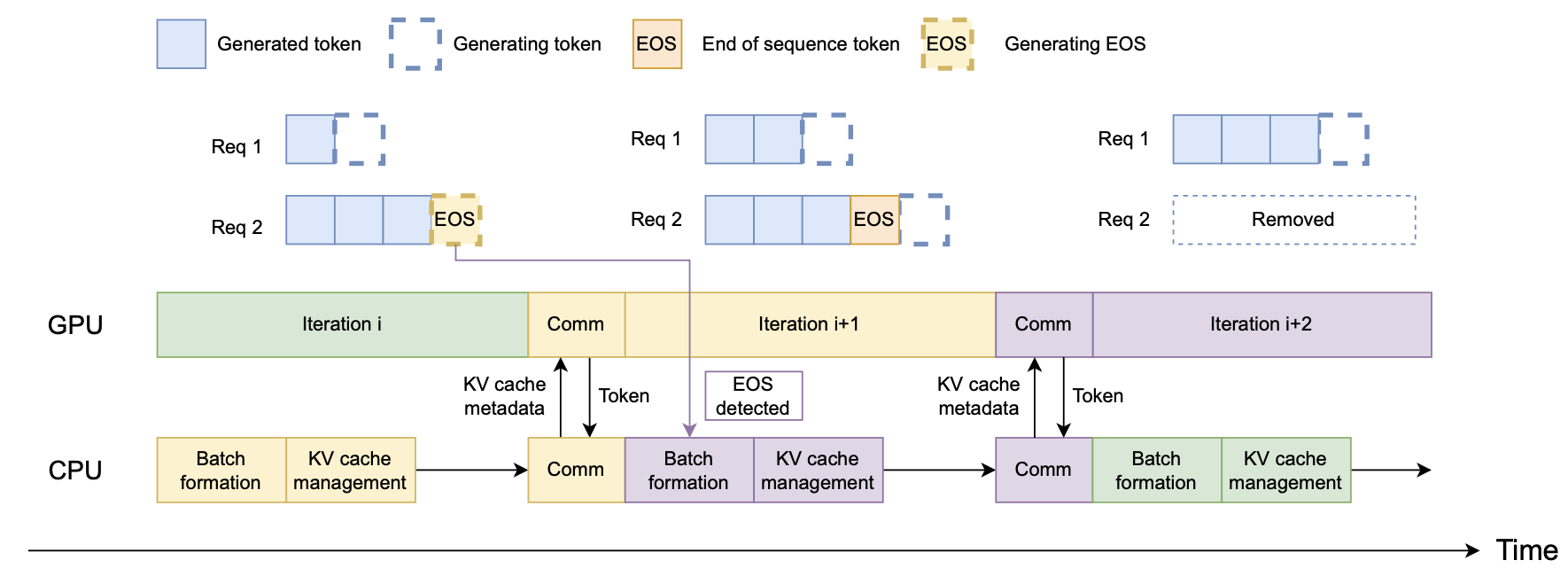

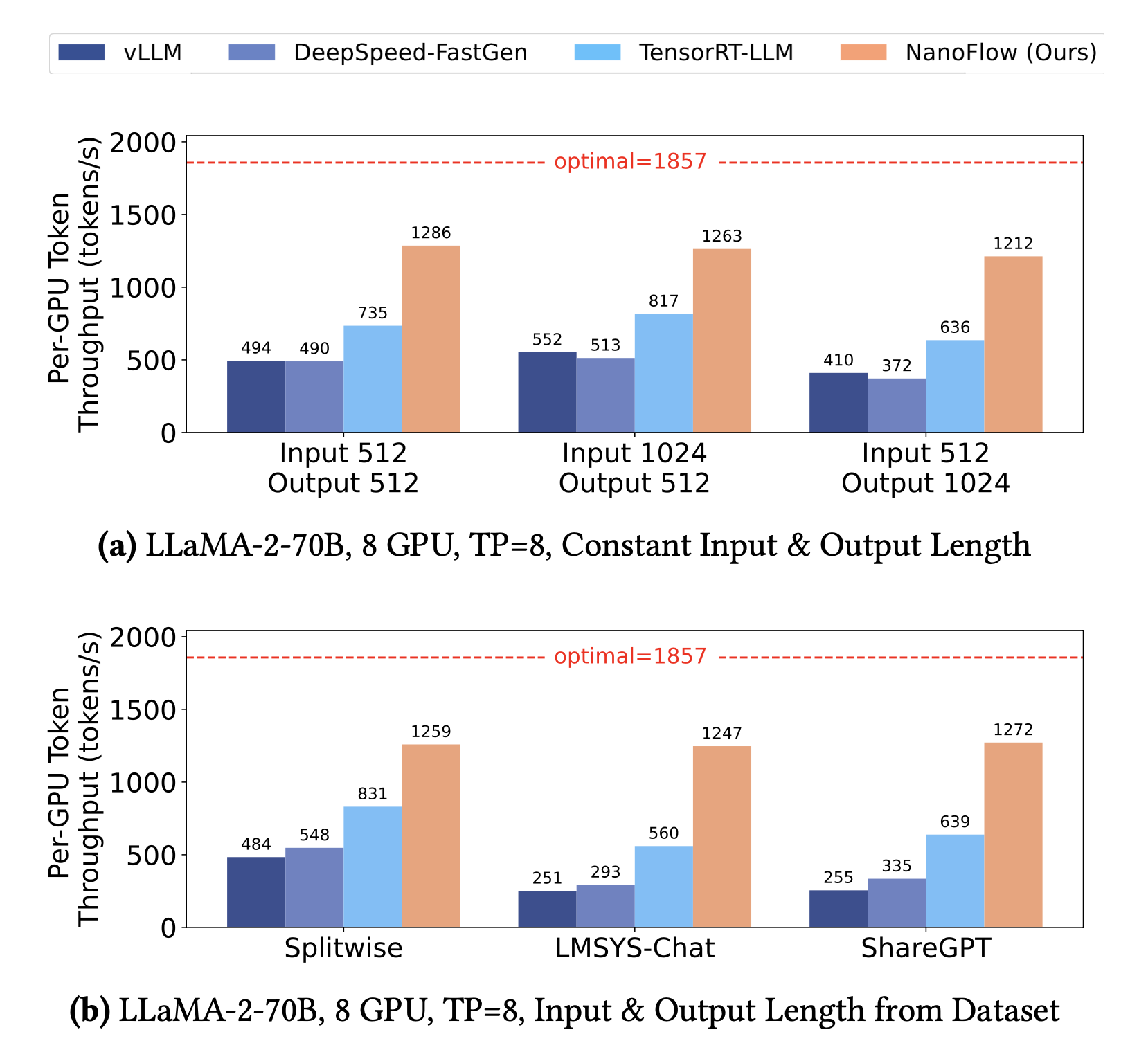

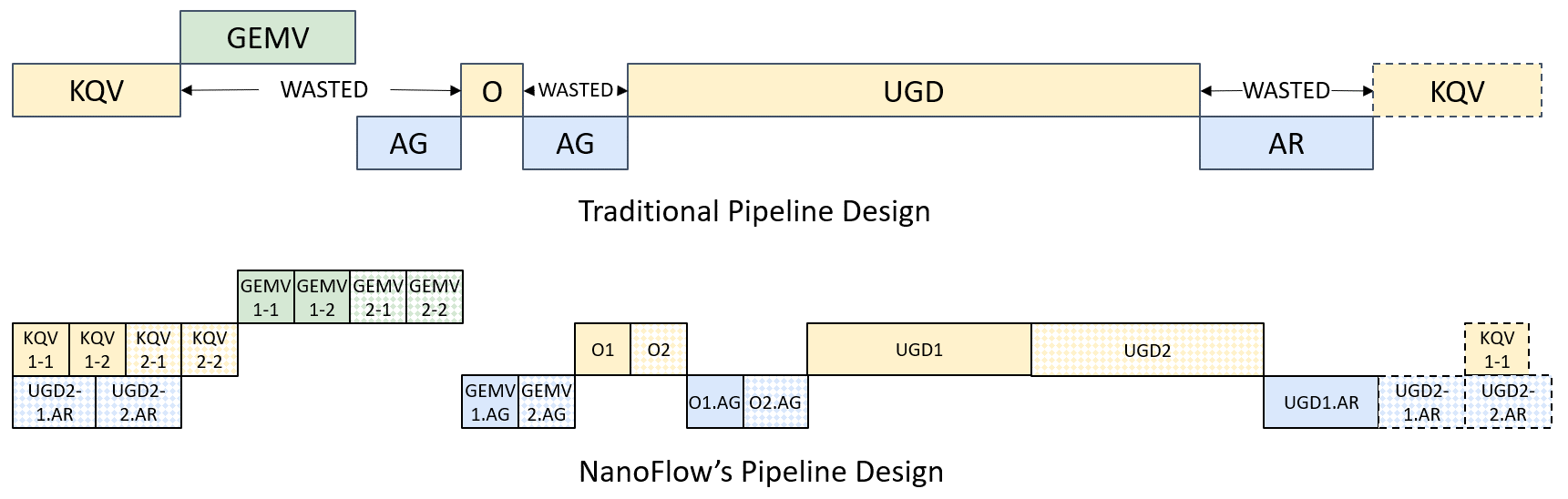

# Nanoflow <p align="center"> <img src="./figures/NanoflowLogo.png" alt="Image description" width="500"> </p> <p align="center"> <a href="https://arxiv.org/abs/2408.12757">Paper</a> | <a href="https://github.com/efeslab/Nanoflow">Slides</a> </p> NanoFlow is a throughput-oriented high-performance serving framework for LLMs. NanoFlow consistently delivers superior throughput compared to vLLM, Deepspeed-FastGen, and TensorRT-LLM. **NanoFlow achieves up to 1.91x throughput boost compared to TensorRT-LLM.** The key features of NanoFlow include: - **Intra-device parallelism**: Maximizes hardware utilization by exploiting nano-batching and execution unit scheduling to overlap different resource demands inside a single device. - **Asynchronous CPU scheduling**: Achieves highly efficient CPU scheduling by adopting asynchronous control flow for GPU execution, CPU batch formation and KV-cache management. ## News - [2024/09] 🚀 Nanoflow now supports Llama2 70B, Llama3 70B, Llama3.1 70B, Llama3 8B, Llama3.1 8B and Qwen2 72B models. We also released experiment scripts to reproduce the evaluation results. ## Introduction The key insight behinds NanoFlow is that traditional pipeline design of existing frameworks under-utilizes hardware resources due to the sequential execution of operations. Therefore, NanoFlow proposes intra-device parallelism (as shown in the following gif), which use nano-batches to schedule the compute-, memory-, network-bound operations for simultaneous execution. Such overlapping leaves compute-bound operations on the critical path and boost the resource utilization. <p align="center"> <img src="./figures/SystemDesign.png" alt="system design" width="90%"> </p> <p align="center"><em>Overview of NanoFlow's key components</em></p> <p align="center"> <img src="./figures/pipeline.gif" alt="system design" width="90%"> </p> <p align="center"><em>Illustration of intra-device parallelism</em></p> With highly utilized GPU, the overhead of CPU, which consists of KV-cache management, batch formation, and retired requests selection, takes significant part ($>10$%) of inference time. Therefore, NanoFlow adopts an asyncronous control flow as shown in the following figure. At any iteration $i$, NanoFlow makes batching decisions and allocates the KV-cache entries for the next iteration before the end of the current iteration. NanoFlow directly launches iteration $i + 1$ without detecting the end-of-sequence (EOS) tokens generated in iteration $i$ and retires completed requests at iteration $i+2$. <p align="center"> <img src="./figures/async-schedule.png" alt="system design" width="90%"> </p> <p align="center"><em>Explanation of asyncronous control flow scheduling</em></p> To avoid recomputation and reuse the KV-cache from multi-round conversations, NanoFlow eagerly offloads the KV-cache of finished requests to SSDs. In one iteration, NanoFlow selects the KV-cache of the retired requests and copies them to the host in parallel to the on-the-fly inference operations, via a layer-by-layer manner. Our calculation shows that only 5GB/s are needed for the offloading bandwidth of serving LLaMA2-70B, while a single SSD can reach 3GB/s. With all mentioned techniques implemented, we now open-source NanoFlow of a Cpp-based backend and a Python-based demo frontend in ~4K lines. NanoFlow integrates state-of-the-art kernel libraries including [CUTLASS](https://github.com/NVIDIA/cutlass) for GEMM, [FlashInfer](https://github.com/flashinfer-ai/flashinfer) for Attention, and [MSCCL++](https://github.com/microsoft/mscclpp) for Network. This codebase also contains necessary scripts for environment setup and experiment reproduction. ## Benchmarks We list some of the primary benchmarks. Please check our paper for more details. We evaluate on A100 80GB SXM and choose [vLLM v0.5.3](https://github.com/vllm-project/vllm/pull/6696), [Deepspeed-FastGen v0.2.3](https://github.com/microsoft/DeepSpeed-MII/pull/433), and [TensorRT-LLM v
Excerpt of 10,507 characters
Read on GitHub
