# Image to LaTeX
[](https://github.com/psf/black)
[](https://github.com/kingyiusuen/image-to-latex/blob/main/.pre-commit-config.yaml)
[](https://github.com/kingyiusuen/image-to-latex/blob/main/LICENSE)
An application that maps an image of a LaTeX math equation to LaTeX code.

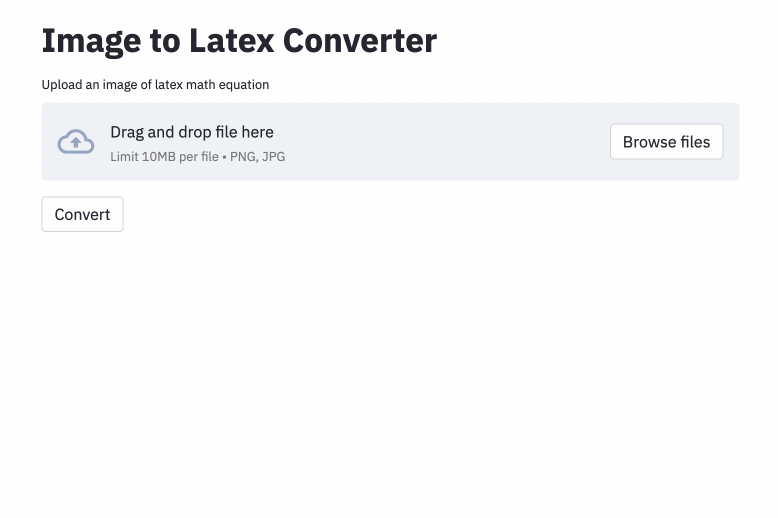

<img src="figures/screenshot.gif" alt="Image to Latex streamlit app" width="512">
## Introduction
The problem of image-to-markup generation was attempted by [Deng et al. (2016)](https://arxiv.org/pdf/1609.04938v1.pdf). They extracted about 100K formulas by parsing LaTeX sources of papers from the arXiv. They rendered the formulas using pdflatex and converted the rendered PDF files to PNG format. The raw and preprocessed versions of their dataset are available [online](http://lstm.seas.harvard.edu/latex/data/). In their model, a CNN is first used to extract image features. The rows of the features are then encoded using a RNN. Finally, the encoded features are used by an RNN decoder with an attention mechanism. The model has 9.48 million parameters in total. Recently, Transformer has overtaken RNN for many language tasks, so I thought I might give it try in this problem.
## Methods
Using their dataset, I trained a model that uses ResNet-18 as encoder with 2D positional encoding and a Transformer as decoder with cross-entropy loss. (Similar to the one described in [Singh et al. (2021)](https://arxiv.org/pdf/2103.06450.pdf), except that I used ResNet only up to block 3 to reduce computational costs, and I excluded the line number encoding as it doesn't apply to this problem.) The model has about 3 million parameters.

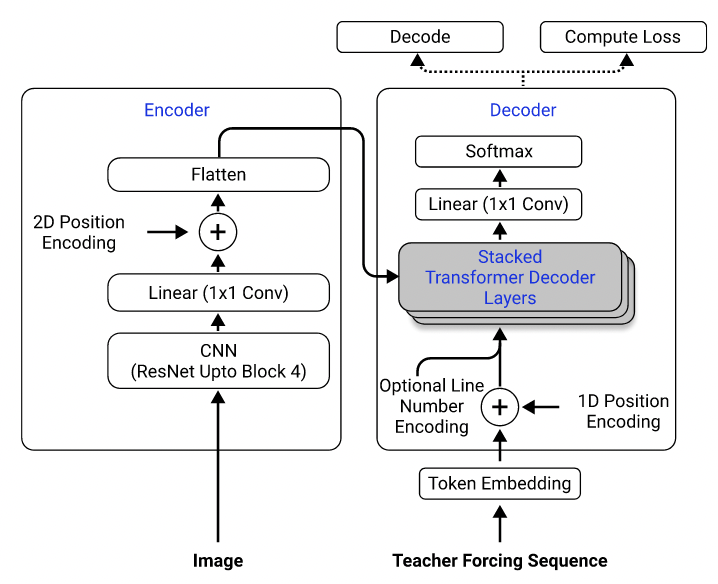

<img src="figures/model_architecture.png" alt="Model Architecture" width="384">
<small>Model architecture. Taken from Singh et al. (2021).</small>
Initially, I used the preprocessed dataset to train my model, because the preprocessed images are downsampled to half of their original sizes for efficiency, and are grouped and padded into similar sizes to facilitate batching. However, this rigid preprocessing turned out to be a huge limitation. Although the model could achieve a reasonable performance on the test set (which was preprocessed the same way as the training set), it did not generalize well to images outside the dataset, most likely because the image quality, padding, and font size are so different from the images in the dataset. This phenomenon has also been observed by others who have attempted the same problem using the same dataset (e.g., [this project](https://wandb.ai/site/articles/image-to-latex), [this issue](https://github.com/harvardnlp/im2markup/issues/12) and [this issue](https://github.com/harvardnlp/im2markup/issues/21)).
To this end, I used the raw dataset and included image augmentation (e.g. random scaling, gaussian noise) in my data processing pipeline to increase the diversity of the samples. Moreover, unlike Deng et al. (2016), I did not group images by size. Rather, I sampled them uniformly and padded them to the size of the largest image in the batch, so that the model must learn how to adapt to different padding sizes.
Additional problems that I faced in the dataset:
- Some latex code produces visually identical outputs (e.g. `\left(` and `\right)` look the same as `(` and `)`), so I normalized them.
- Some latex code is used to add space (e.g. `\vspace{2px}` and `\hspace{0.3mm}`). However, the length of the space is diffcult to judge even for humans. Also, there are many ways to express the same spacing (e.g. 1 cm = 10 mm). Finally, I don't want the model to generate code on blank images, so I removed them. (I only removed `\vspace` and `\hspace`, but turns out there are a lot of commands for horizontal spacing. I only realized that during error Excerpt of 11,011 characters
