Maze turns agent programs into distributed, observable workflows. It schedules task-level work across heterogeneous resources while keeping execution, recovery, and artifacts behind one runtime API.
- Visual workflow development. Maze Workbench provides a DAG editor, reusable task catalog, workspace files, validation, live execution, Run inspection, and cluster operations in one interface.
- Heterogeneous scheduling. Independent
gpu,cpu, andioqueues prevent one resource class from blocking the others. Maze supportsFCFSand the paper-alignedHACSscheduling algorithm, with node placement configured separately. - Static and dynamic workflows. Define DAGs with
@workflow, submit the portablemaze.workflow/v1format, or append tasks at runtime with persistedDynamicRunstate. - Distributed model execution. Maze discovers local models across nodes, routes LLM tasks to reusable inference instances, and manages GPU reservations and model scale-out/scale-in through the scheduler.
- Durable operations. Runs retain task state, structured errors, events, logs, retries, timeouts, cancellation, placement, and content-addressed artifacts across process restarts.
- Framework integration. The Python SDK, LangGraph adapter, visual Workbench, and application specs use the same Core execution and observability surface.
Maze has one execution path and one owner for runtime state:
Python SDK / LangGraph / Workbench
|
POST /workflows/submit
|
Maze Core
Run, events, logs, artifacts
|
Scheduler + Ray workers
gpu / cpu / io queues
- Core owns Runs. A Core
run_idis the only public run identity. Static workflows, DynamicRuns, and application specs share the same persisted snapshots, events, logs, artifacts, cancel, and retry APIs. - Clients submit DAGs. The Python SDK, LangGraph adapter, and Workbench all submit
maze.workflow/v1specs through/workflows/submit. The Workbench backend manages workspace files and proxies Core APIs; it does not execute or mirror a second workflow. - Catalog and workspace are explicit.
system_catalog/tasksandsystem_catalog/workflowscontain built-in templates. User-edited workflow and task files remain in their workspace. - Scheduling is heterogeneous. Ready work enters separate
gpu,cpu, andioqueues.FCFSis the default scheduling algorithm;HACSadds topology- and runtime-aware ordering. Node placement is configured independently. - Runs survive failures. Run-level deadlines, structured failures, worker re-registration, scheduler interruption handling, durable artifacts, and restart-safe discovery keep execution state inspectable after process failure.
- Dynamic workflows remain first-class. Runtime task append, lifecycle events, cancellation, timeout, and persisted recovery use Core
DynamicRunrather than a second agent loop.
The implementation is built on Ray for distributed processes and task execution. Maze adds the workflow contract, task/resource semantics, durable Run state, scheduling policy, model lifecycle, artifacts, and operational APIs above Ray.
- 2026-08: Maze simplified the runtime and Workbench around Core-owned Runs and
/workflows/submit, removing legacymaze dev, duplicate execution paths, and redundant UI state. Service lifecycle now usesmaze start --detach,maze stop, andmaze doctor, while standby actors provide the default warm execution path. The Workbench now supports concurrent submissions and immutable cross-workspace Run history, with task definition, runtime, placement, and artifacts consolidated in the right-side inspector. - 2026-07: Maze introduced paper-aligned heterogeneous
gpu/cpu/ioqueues, pluggableFCFSandHACSscheduling, observed-runtime estimates, richer queue diagnostics, and an optional standby worker path. Distributed execution was hardened with worker re-registration after head or Ray restarts, current-cluster validation, run-level deadlines, explicit scheduler-failure states, and restart-safe run discovery. The Maze research paper was accepted to SC26. - 2026-06: Maze added unified run operations, content-addressed artifacts, local model routing, cluster management, and runtime fault-tolerance traces.
- 2026-05: Maze added persisted DynamicRuns, workspace file execution, and the Workbench
RunsandClusterviews.
From PyPI (Recommended)
pip install maze-agentFrom source
git clone https://github.com/maze-agent/Maze.git
cd Maze
pip install -e .Launch Maze Head as maze server. The maze server can receive the workflow of the agent.
maze start --head --port HEAD_PORTAdd --detach to run the same head parent in the background. Both foreground
and detached heads record one validated runtime identity, so another terminal
can inspect or stop the local head safely:
maze start --head --port HEAD_PORT --detach
maze status
maze doctor
maze stopDetached output is written to the log path printed by maze start.
The head uses the least-loaded node placement policy by default, so ready tasks prefer the registered node with the fewest running Maze tasks. To force the older registration-order placement behavior, pass --strategy default.
Task scheduling is selected separately. FCFS is the default task scheduling algorithm; pass --scheduling-algorithm HACS to enable the paper-aligned HACS queue ordering:
maze start --head --port HEAD_PORT --scheduling-algorithm HACSWarm standby workers are enabled by default. Scheduled tasks use an idle standby actor first and fall back to a normal Ray task when the pool is busy. To disable standby creation and execution together:
MAZE_STANDBY_WORKERS_ENABLED=0 maze start --head --port HEAD_PORTIf there are multiple machines, you can connect other machines as maze workers to the maze head.
maze start --worker --addr HEAD_IP:HEAD_PORTFor long-running worker processes that should re-register after a head/core restart, run the worker agent:
maze start --worker --addr HEAD_IP:HEAD_PORT --agent --heartbeat-interval 20Stop a local worker explicitly with maze stop --worker; plain maze stop
owns the local head lifecycle.
You can inspect the scheduler-visible cluster state with:
curl http://HEAD_IP:HEAD_PORT/cluster/resourcesA Ray worker that has joined Ray but has not registered with Maze will appear under unregistered_ray_nodes; it must still be started as a Maze worker before Maze can schedule tasks to it.
Common cluster operations are also available from the CLI:
maze cluster resources --server-url http://HEAD_IP:HEAD_PORT
maze cluster queues --server-url http://HEAD_IP:HEAD_PORT
maze cluster join-command --server-url http://HEAD_IP:HEAD_PORT
maze cluster reconcile-workers --server-url http://HEAD_IP:HEAD_PORTQueue snapshots include the active scheduling algorithm, per-resource queue counts, pending and retry reasons, prediction metadata, and HACS score details when available. Cluster resources also report standby worker pool targets and busy/idle execution state.
from maze import MaClient, task, workflow
@task(resources={"cpu_num": 1, "gpu_mem": 0, "io_num": 0})
def greet(text: str):
return {"result": f"Hello {text}"}
@task(resources={"cpu_num": 1, "gpu_mem": 0, "io_num": 0})
def uppercase(result: str):
return {"upper": result.upper()}
@workflow
def hello(name: str):
greeting = greet(name)
return uppercase(greeting.result)
client = MaClient("http://localhost:8000")
workflow_run = client.create_workflow_from(hello, inputs={"name": "Maze"})
run_id = workflow_run.run()
run = client.wait_run(run_id)
print(run["result_summary"])@workflow builds the DAG without executing task functions locally. For visual and external DAG builders, MaClient.submit_workflow(spec) submits the same maze.workflow/v1 contract directly to /workflows/submit.
from maze import MaClient, task
@task(resources={"cpu_num": 1, "gpu_mem": 0, "io_num": 0})
def summarize(topic: str = ""):
return {"summary": f"Maze can build workflows dynamically for {topic}."}
client = MaClient("http://localhost:8000")
run = client.create_dynamic_run(max_tasks=10)
summary = run.append_task(
summarize,
inputs={"topic": "agent runtime"}
)
run.wait_for_task(summary)
run.finalize({"status": "done"})
print(run.status())In Maze Playground, files uploaded under workspace/files are staged into each task sandbox. Task code should read and write files with relative paths such as Path("input.csv"), Path("folder/data.json"), or Path("."); it should not hard-code workspace/files/....
For distributed runs without shared storage, Maze can register workspace inputs and task outputs in a content-addressed artifact store. Workers download required files before task execution and upload changed files after execution; manifests use stable artifact references such as maze://artifacts/sha256/<hash> instead of machine-local paths. A workflow can enable the head HTTP artifact store with:
run_id = workflow.run(
workspace_dir="/tmp/my_workspace",
artifact_mode=True,
)For lower-level control, pass an explicit file context:
workflow.run(file_context={
"enabled": True,
"workspace_dir": "/tmp/my_workspace",
"artifact_store": {
"type": "head_http",
"base_url": "http://HEAD_IP:HEAD_PORT",
},
})For application-style jobs, you can submit a maze.yaml directly:
name: gpu-demo
command: python train.py
workspace: .
resources:
cpu_num: 4
gpu_mem: 8192
io_num: 0
env:
conda: maze
vars:
DATASET: sample
artifacts:
- outputs/
timeout_seconds: 1800
retries:
max: 1
backoff_seconds: 5
on: [node_lost, resource_unavailable]Run and inspect it with:
maze app validate maze.yaml
maze run maze.yaml --wait
maze runs logs <run_id>
maze runs retry <run_id>Each app run is recorded in the unified run history with lifecycle events, placement, logs, and artifacts.
Static workflows, DynamicRuns, and application spec runs share the same operational surface. A run snapshot includes lifecycle state, timing, progress, result/error summaries, task state, placement, and artifacts. Task failures use a structured error envelope with fields such as error_type, message, retryable, origin, node_id, node_ip, attempt, and traceback.
You can configure task-level reliability directly on the decorator:
@task(
resources={"cpu_num": 2, "gpu_mem": 8192, "io_num": 0},
timeout_seconds=300,
max_retries=2,
retry_backoff_seconds=5,
retry_on=["node_lost", "artifact_error"],
)
def train_one_shard(shard: str):
return {"status": f"finished {shard}"}Python clients can query and operate on runs after submission:
client = MaClient("http://localhost:8000")
runs = client.list_runs(limit=20)
run = client.get_run(run_id)
tasks = client.get_run_tasks(run_id)
events = client.get_run_events(run_id, after=None)
artifacts = client.get_run_artifacts(run_id)
logs = client.get_run_logs(run_id, tail=200)
client.cancel_run(run_id, reason="no longer needed")
client.retry_run(run_id, workspace_dir="/tmp/my_workspace")The same controls are available through HTTP and CLI:
GET /runs
GET /runs/{run_id}
GET /runs/{run_id}/tasks
GET /runs/{run_id}/tasks/{task_id}
GET /runs/{run_id}/events?after=<seq>
GET /runs/{run_id}/logs
GET /runs/{run_id}/artifacts
POST /runs/{run_id}/cancel
POST /runs/{run_id}/retry
GET /cluster/resources
GET /cluster/queues
maze runs list --server-url http://HEAD_IP:HEAD_PORT
maze runs show <run_id> --server-url http://HEAD_IP:HEAD_PORT
maze runs events <run_id> --server-url http://HEAD_IP:HEAD_PORT
maze runs logs <run_id> --tail 200 --server-url http://HEAD_IP:HEAD_PORT
maze runs retry <run_id> --server-url http://HEAD_IP:HEAD_PORT
maze artifacts list <run_id> --server-url http://HEAD_IP:HEAD_PORTMaze Playground supports building workflows through a drag-and-drop interface, managing workspace files, generating workspace tasks from prompts, and inspecting static, dynamic, and app runs in one Runs console. You can start the playground with the following command option.
maze start --head --port HEAD_PORT --ray-head-port RAY_HEAD_PORT --playground
The default Playground entry is http://localhost:5173. The CLI starts and wires the Maze Head, Workbench backend, and Workbench frontend together. To use a custom Playground UI port:
maze start --head \
--port 9000 \
--ray-head-port 6380 \
--playground \
--playground-port 5174When the UI port is changed, the Workbench backend defaults to --playground-port + 1; use --playground-backend-port only when the backend API port must be fixed. Maze checks configured ports before startup and prints a clear error if a port is already in use or two services are configured to share one port.
The sidebar separates system workflow templates from workspace workflows and loads reusable task definitions from system_catalog/tasks and the active workspace. The GAIA demo is an ordinary system workflow and uses the same Core submission and Run path as user workflows.
The Workbench backend manages workspace and catalog files, compiles visual DAGs, and proxies Core APIs. Core remains the only owner of Run state. The Runs console shows history, task state, structured errors, placement, logs, cancel/retry actions, and artifacts for static, dynamic, and app runs. Artifact download and promotion use Core content-addressed storage.
The top toolbar also includes a Cluster view for checking head/worker registration, Ray-only unregistered nodes, CPU availability, GPU availability, per-node GPU memory, queue snapshots, pending reasons, retry waits, timeouts, and scheduler reject reasons. For detailed usage instructions, please refer to the Maze Playground.

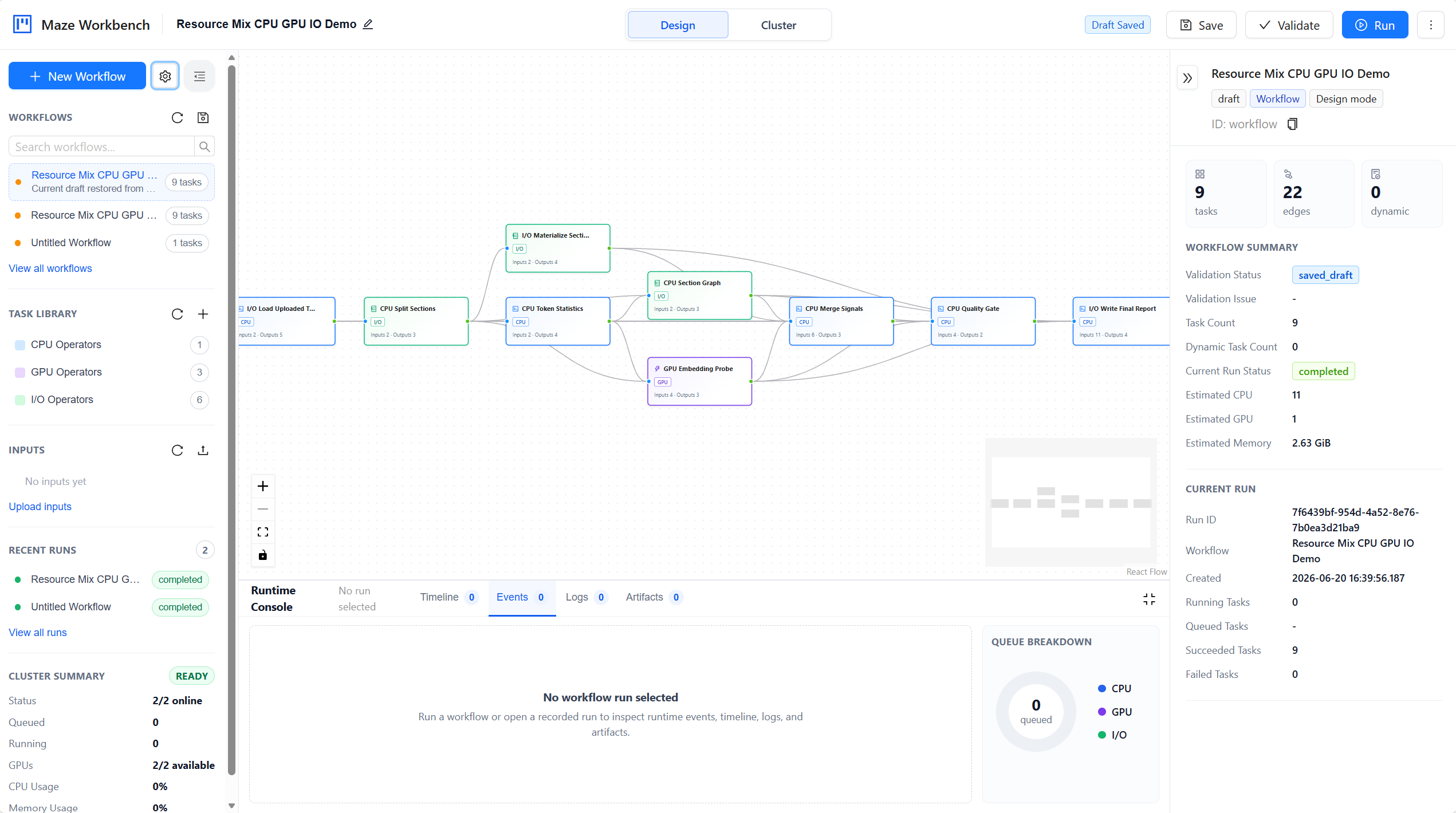

Maze Workbench gives workflow authors a DAG-first editor with task libraries, input management, validation, run submission, and live workflow summaries in one workspace.

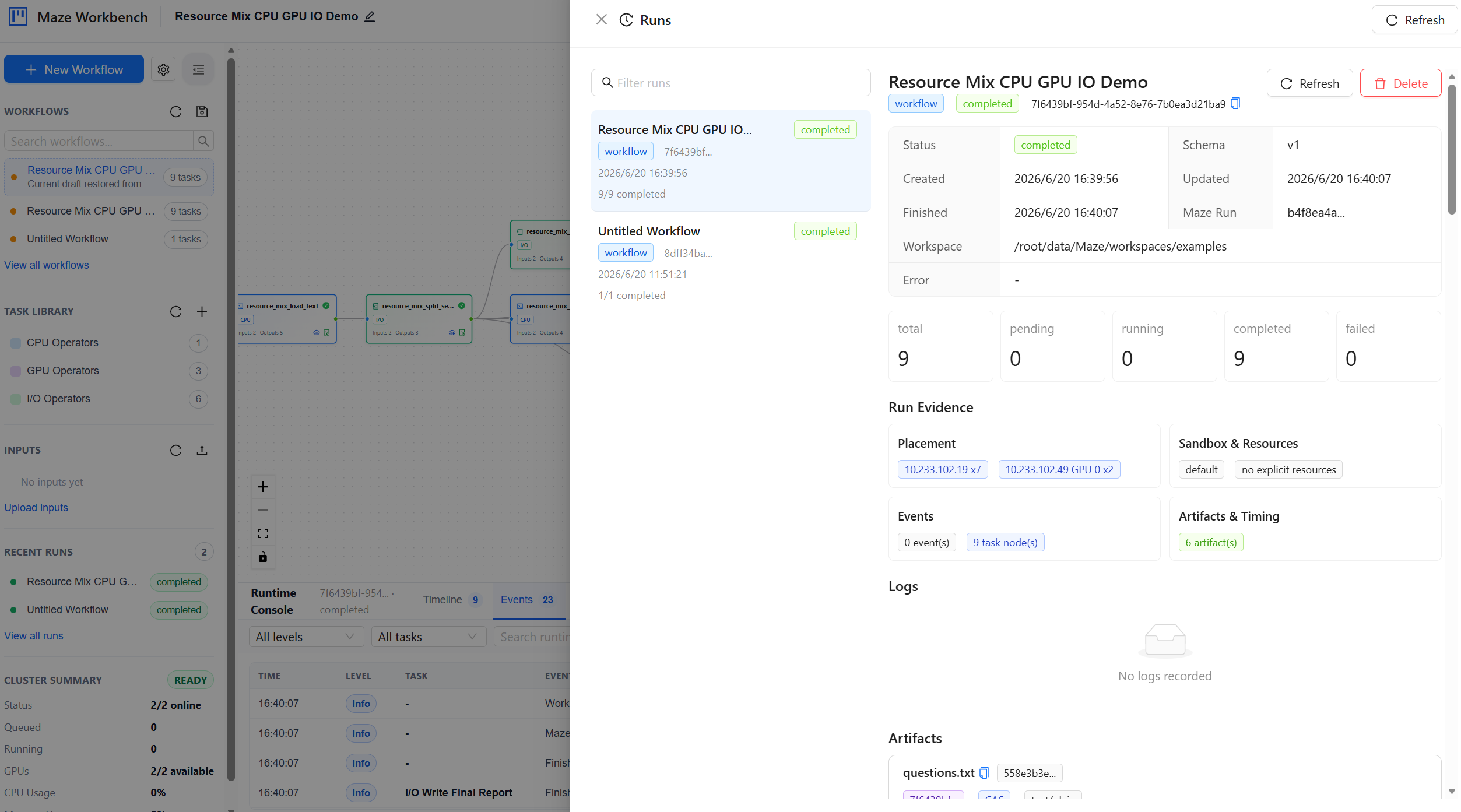

The unified Runs console keeps completed and active runs inspectable after submission, including run evidence, placement, events, logs, and produced artifacts.

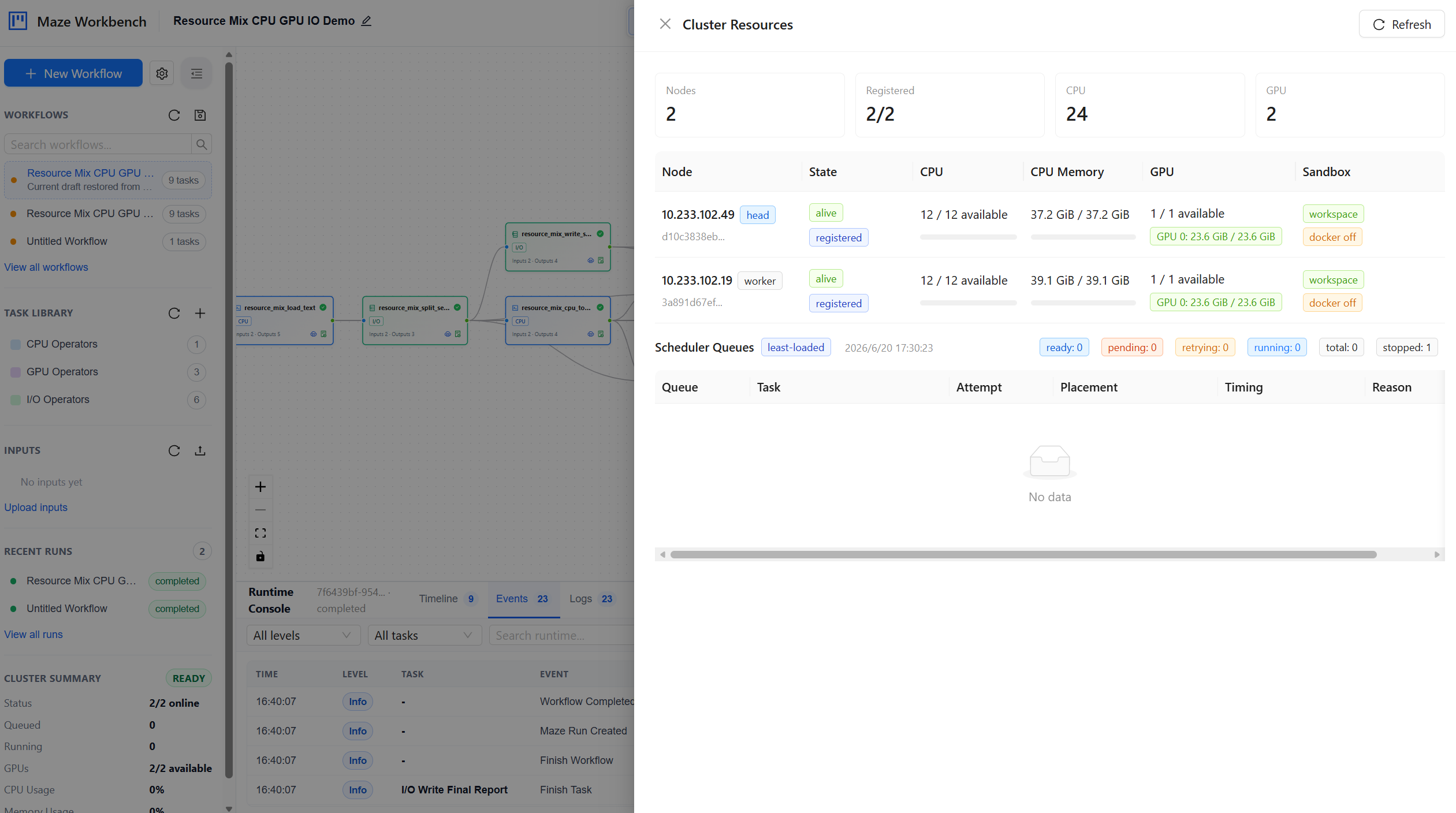

The Cluster view shows registered workers, scheduler-visible CPU/GPU capacity, sandbox capabilities, queue state, and placement readiness.
Please cite our work if you find the project useful:
@inproceedings{gu2026maze,
title = {Maze: A Distributed Framework for Large Language Model Agents},
author = {Jing Gu and Zhuang Xing and Yiheng Yang and Bowen Lv and Jiale Wang and Shuo Yuan and Zijin Chen and Jin Zhao and Pengfei Zuo and Long Zheng and Xiaofei Liao and Hai Jin and Qinbin Li},
booktitle = {Proceedings of the International Conference for High Performance Computing, Networking, Storage and Analysis},
year = {2026}
}We thank contributors from Huazhong University of Science and Technology, Huawei, and other institutions for their support and contributions to this project.
