Deep Local Parametric Filters for Image Enhancement
CVPR 2020 · Huawei Noah's Ark Lab
Sean Moran · Pierre Marza · Steven McDonagh · Sarah Parisot · Greg Slabaugh
Paper · Poster · Video · Supplementary
pip install -e .
deeplpf enhance photo.jpgMost enhancement networks paint the output pixel by pixel. DeepLPF instead predicts the settings of a few filters a photographer would recognise - a tone curve, a graduated filter, an elliptical vignette - and applies them to your image. The whole model is 1.7M parameters, runs in 46 ms on an Apple GPU, and tells you what it did.
Install · Enhance your photos · How it works · Results · Pre-trained model · Train it yourself · Which number, which protocol · Datasets · Citation
git clone https://github.com/sjmoran/deeplpf-image-enhancement.git
cd deeplpf-image-enhancement
pip install -e .Python 3.11 or newer. Torch comes from your platform's usual wheel; if you
already have a CUDA or ROCm build installed, keep it - the pins in
requirements.txt would replace it with the generic one.
deeplpf enhance photo.jpg # one file
deeplpf enhance ~/photos --out ~/done # or a whole directoryResults land in enhanced/ as PNGs. PNG, JPEG, TIFF, BMP and WebP are read,
greyscale and RGBA included. The device is picked for you - CUDA, Apple Silicon
(MPS), or CPU - and --device overrides it. A file it cannot use is reported
and skipped rather than taking the rest of the batch down with it.
| Model size | 1.7M parameters, 6.9 MB |
| Speed, 512x341 image | 46 ms on an M-series GPU, 0.21 s on CPU |
| Input | any resolution with both edges >= 32 px |

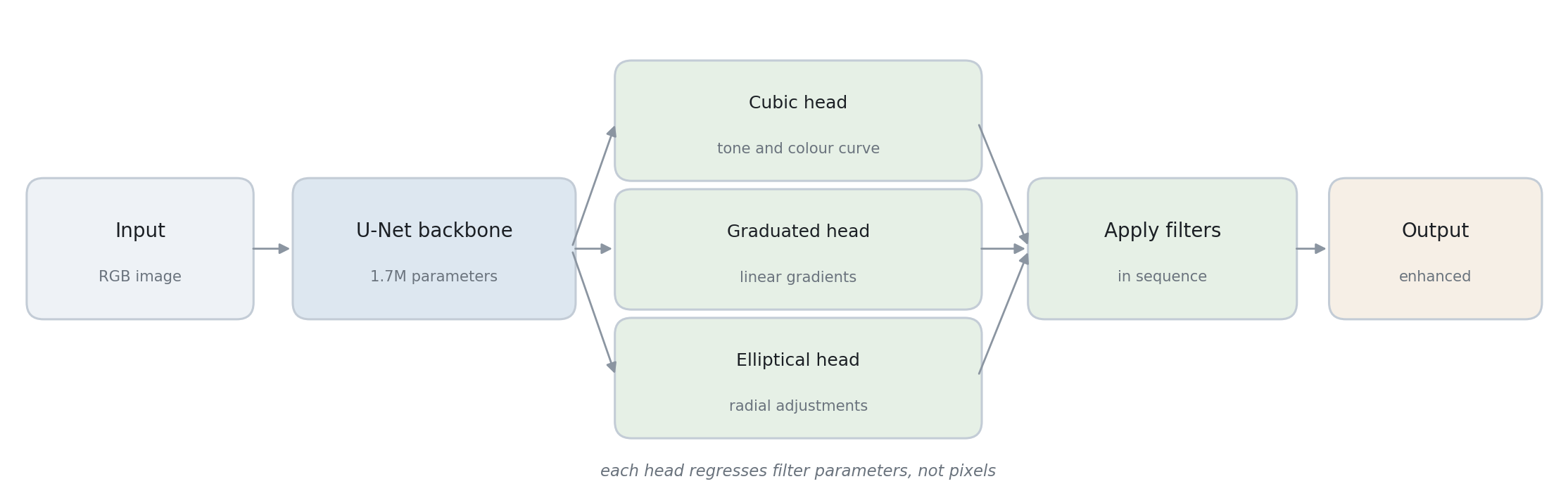

A U-Net backbone reads the image and produces per-pixel features. Three heads turn those features into filter parameters, and the filters are applied in sequence. The whole enhancement is a few dozen numbers.
Cubic — a tone and colour curve, applied to the whole image. It is a cubic polynomial in the pixel's intensity and its position, so it can lift shadows, roll off highlights and warm or cool the picture, the way the basic panel of a raw converter does. This is where most of the enhancement happens.

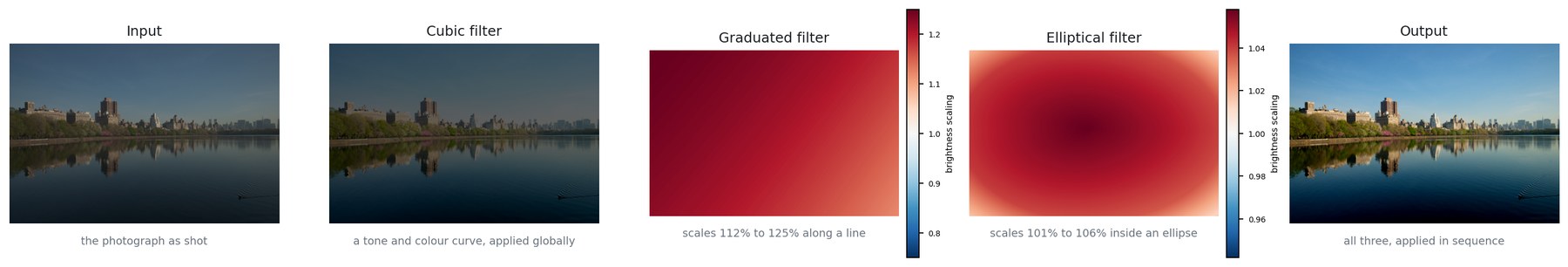

Graduated — the graduated neutral-density filter a landscape photographer slides over the lens: brighter on one side of a line, darker on the other, with a smooth transition between. The network predicts where the line falls and how strong the effect is. In the example above it runs diagonally, brightening the skyline by about 26% at one edge and 10% at the other.
Elliptical — a radial filter, the soft oval used to lift a face out of its background or to add a vignette. The network predicts the ellipse's centre, its two axes and its rotation. Above, it lifts the middle of the frame by up to 8% and leaves the corners alone.
Each filter predicts three instances per image, and their effects multiply, so the model can place three gradients and three ellipses at once. Because these are the adjustments a photographer already knows, an enhancement can be read and argued with rather than only looked at. The paper gives the full formulation.
| Model | Split | PSNR | SSIM |
|---|---|---|---|
| this repository, 1000 epochs | reconstructed | 24.18 dB | 0.917 |
| this repository, 774 epochs | DPE | 23.83 dB | 0.916 |
| DeepLPF as published (NamedCurves Tab. 1) | DPE | 23.93 dB | 0.903 |
The weights shipped in this repo score higher than the paper. FiveK has at least five incompatible protocols; see Which number, which protocol before comparing anything to anything.
pretrained_models/adobe_dpe/ holds the model trained by this code for 1000
epochs on the reconstructed split, and it is what deeplpf enhance loads by
default.
pretrained_models/adobe_dpe_recovered_split/ holds a second checkpoint,
trained on the original DPE split lists shipped in
adobe5k_dpe/, at the epoch where validation PSNR peaked
(774). Same architecture and training command, different split.
Two capabilities are off by default. Both change the architecture, so a checkpoint trained with either needs the same flag to load it:
--learn_filter_count # learn how many filter instances each image needs
--colour_head # add a global colour mixer and per-channel tone curveThe first predicts a gate per filter instance and penalises the mean gate, so the network can switch instances off. The second supplies the cross-channel operation the filter bank otherwise lacks: every head is diagonal, so without it no filter can express white balance, saturation or a hue shift.
Prepare the dataset (see Datasets) into a directory with input/
and output/ sub-folders, then:
python3 main.py \
--training_img_dirpath=./adobe5k_dpe_data/ \
--train_img_list_path=./adobe5k_dpe/reconstructed_split/images_train.txt \
--valid_img_list_path=./adobe5k_dpe/reconstructed_split/images_valid.txt \
--test_img_list_path=./adobe5k_dpe/reconstructed_split/images_test.txt \
--batch_size=1These are the reconstructed split, which is what the shipped checkpoint was
trained on and what the 24.18 dB above is measured against. The original DPE
lists are shipped too, in adobe5k_dpe/; swap them in to
train against the protocol the literature reports — pretrained_models/adobe_dpe_recovered_split/
is the result of doing that, at 23.83 dB / 0.916 SSIM.
--batch_size=1 is the paper's setup; larger batches need --crop_size,
because FiveK images vary in size. Evaluation always runs at batch size 1 so
per-image PSNR and SSIM are reported and saved. On an Ampere-or-later GPU,
--cuda_graphs cuts the step time by about 4.7x and --compile a little more.
Checkpoints are written whenever validation PSNR improves, into a timestamped
log_* directory with the metrics in the filename.

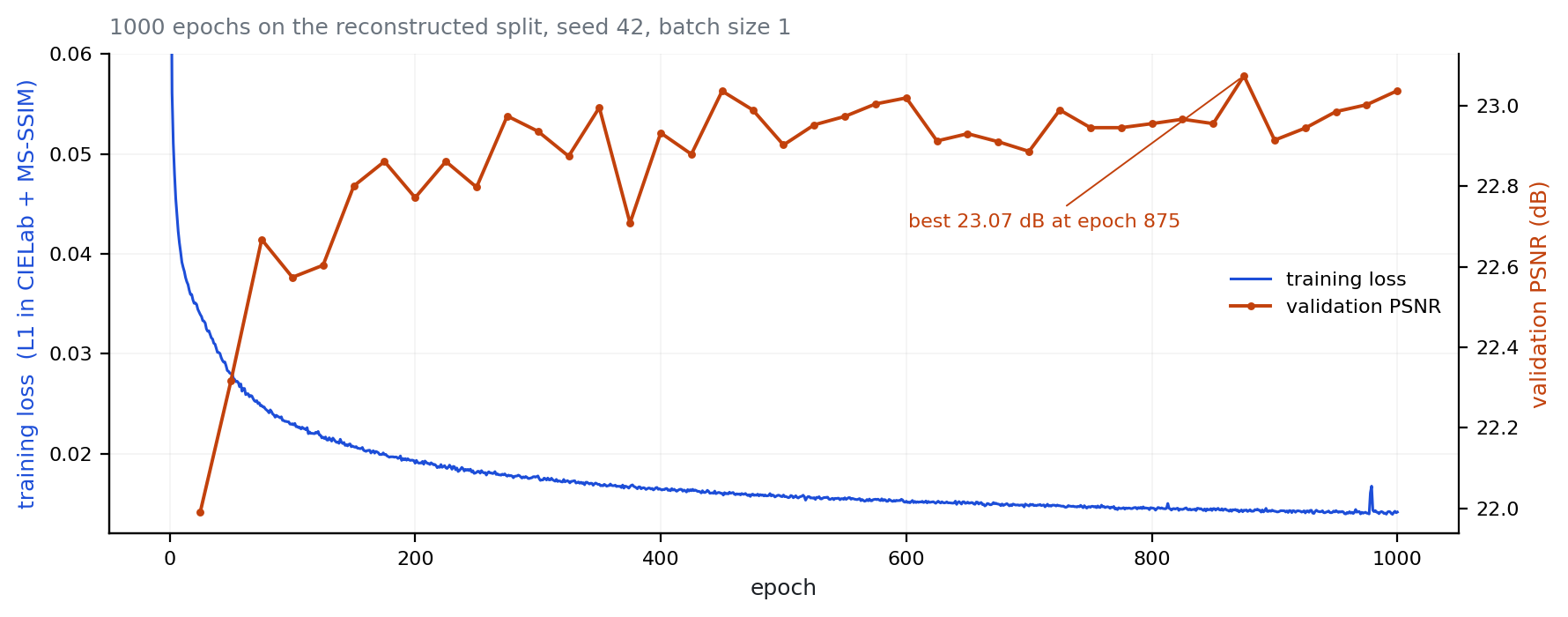

A 1000-epoch run takes roughly 19 hours on an A10G. This is the run that produced the shipped checkpoint:
Reproducing the dataset from the FiveK raws - Lightroom export, organise, verify
1. Environment. Python 3.11 or newer.
pip install -r requirements.txt2. Get the raw data. Download the MIT-Adobe FiveK archive (about 47 GB of DNGs plus the Lightroom catalogue) from the dataset page.
3. Render the pairs in Lightroom. This step needs Lightroom Classic and
cannot be scripted from outside it; the DNGs have to be developed through
Adobe's renderer to match the published data. Open
fivek_dataset/raw_photos/fivek.lrcat and export two collections, both as
PNG / sRGB / 8-bit / long edge 512 px / don't enlarge / original filenames:
| Collection | Destination | Role |
|---|---|---|
InputAsShotZeroed |
~/fivek/input |
network input |
Experts / C |
~/fivek/output |
target |
The input collection matters. InputAsShotZeroed is the one this repo's own
export used, and the one its bundled reference inputs come from; the ... minus 1.5 renderings
apply a −1.5 EV exposure cut and give inputs roughly 1.6× too dark. Full
walkthrough, including a Lightroom plug-in that does both exports:
docs/ADOBE_DPE_DATASET.md.
4. Organise and verify.
python3 data_prep/organise_fivek.py ~/fivek/input ~/fivek/output \
./adobe5k_dpe_data --long-edge 512 --no-resize
python3 data_prep/verify_dataset.py ./adobe5k_dpe_dataFirst check the export itself against the reference manifest:
python3 data_prep/verify_export.py ./adobe5k_dpe_data adobe5k_dpe/MANIFEST.json.gzThe FiveK photographs are their photographers' copyright and cannot be redistributed, so this repository ships checksums and per-image statistics instead — enough to tell you whether your own export matches ours, and what is wrong when it does not. A correct export reports every image byte-identical. A wrong one is diagnosed rather than merely rejected, for example:
40 differ in pixel values:
a0001-jmac_DSC1459.png mean delta R -37.01 G -36.97 B -35.32
-> your images are 32.3 levels darker than the reference: this is the
signature of a `... minus 1.5` Inputs rendering, which applies a -1.5 EV
exposure cut. Re-export from `InputAsShotZeroed`.
verify_dataset.py is then the checkpoint for the whole stage. Expect 5000 pairs
split 2250 train / 2250 valid / 498 test, fully paired, and mean|Δ| under 15
against the bundled reference inputs — which are ten images from this repo's own
export, so a small difference means your Lightroom renders them the way ours
did. A large mean|Δ| means the wrong Inputs rendering was exported —
re-export the inputs and run it again.
5. Train.
python3 main.py \
--training_img_dirpath=./adobe5k_dpe_data/ \
--train_img_list_path=./adobe5k_dpe/reconstructed_split/images_train.txt \
--valid_img_list_path=./adobe5k_dpe/reconstructed_split/images_valid.txt \
--test_img_list_path=./adobe5k_dpe/reconstructed_split/images_test.txt \
--batch_size=1Checkpoints are written whenever validation PSNR improves, into a timestamped
log_* directory, with the metrics in the filename.
What to expect. A 1000-epoch run on these lists reaches the low 24s in test
PSNR. Training instead against the DPE lists in
adobe5k_dpe/ gives a figure comparable with the literature,
but on a different test set, so it is not comparable with the number above; see
docs/BENCHMARK_TABLE.md.
The fastest way to confirm your pipeline before committing to a full training
run is the enhance command, which runs the
released checkpoint over the bundled examples and prints per-image PSNR/SSIM.
DeepLPF appears in the literature as 23.63, 23.90, 23.93, 24.48 and 24.73 dB. All five are correct, and none is comparable with another: they are five different protocols, differing in the test set, the input rendering and the resolution. Every method on FiveK has this problem, and it is the most common way comparisons go wrong.
docs/BENCHMARK_TABLE.md says which number belongs to which protocol, what each protocol is, and which split files reproduce it.
DeepLPF is trained on the MIT-Adobe FiveK photographs, processed through Lightroom with Expert C retouching as the target. For a step-by-step walkthrough (Lightroom export settings, the expected folder layout, and helper/verification scripts), see docs/ADOBE_DPE_DATASET.md.
-
Adobe-DPE (5000 RGB→RGB pairs): download here, then pre-process per the DeepPhotoEnhancer (DPE) paper, using the
InputAsShotZeroedLightroom rendering as input and Expert C as target, both exported in sRGB. See the DPE instructions and Train it yourself.The train/valid/test splits in
adobe5k_dpe/are the original DPE splits (2250 / 2250 / 498), recovered in September 2026 from a third-party mirror of the DPE release after every official link went dead. Provenance inadobe5k_dpe/SPLIT_PROVENANCE.md. -
Adobe-UPE (5000 RGB→RGB pairs): download here, then pre-process per the DeepUPE paper.
If you use DeepLPF, its pre-trained models, or this code in your research, please cite:
@InProceedings{Moran_2020_CVPR,
author = {Moran, Sean and Marza, Pierre and McDonagh, Steven and Parisot, Sarah and Slabaugh, Gregory},
title = {DeepLPF: Deep Local Parametric Filters for Image Enhancement},
booktitle = {Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR)},
month = {June},
year = {2020}
}
Released under the MIT License, the licence the original release shipped under. See LICENSE.
Bug fixes are welcome as pull requests. For new features or extensions, open an issue first so we can agree the shape before you write it. If you are training DeepLPF and run into trouble, open an issue - we are happy to help.
