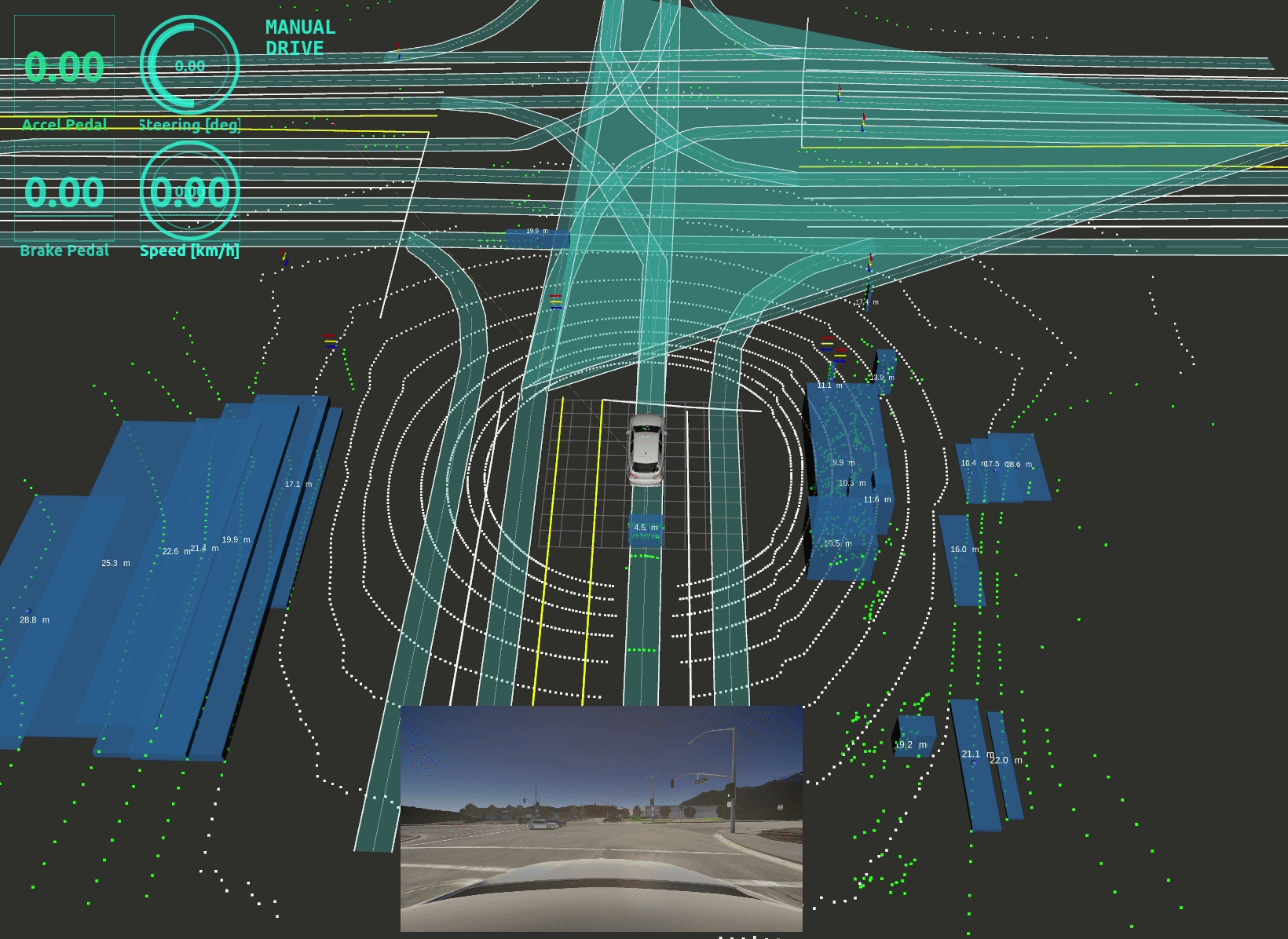

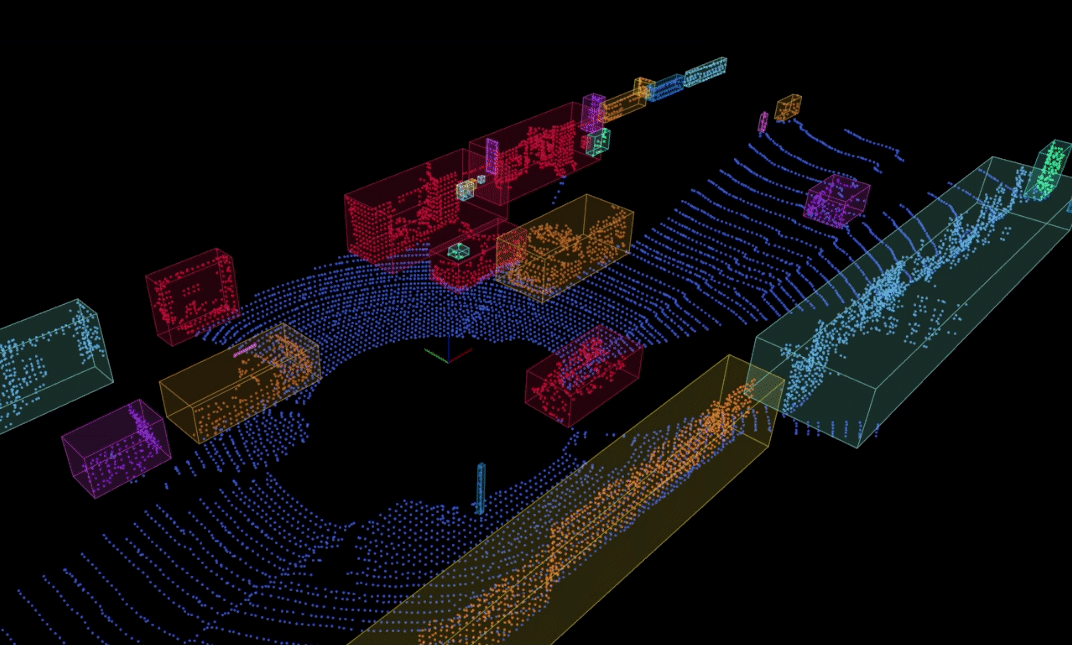

Real-time 3D LiDAR perception for ROS 1 and ROS 2: detect, track and predict every obstacle.
Model-free on a CPU, or fused with a GPU detector. Nothing unrecognised is dropped.
-76b900?logo=nvidia){kind=icon}
fused mode on three Argoverse 2 drives. The camera is for reference only; detection uses
the lidar alone. Data: Argoverse 2 (CC BY-NC-SA 4.0).
Full-resolution video in the latest release.
- Fast. 10.4 ms per 95k-point scan on one CPU core (Argoverse 2), 3.4 ms on nuScenes. That includes ground segmentation, clustering, tracking and occupancy.
- Nothing is dropped. Recognised objects become tracked boxes. Everything else (walls, poles, debris, an overturned bin) becomes 2.5D pillars: on Argoverse 2, 99% of labelled objects are covered by a box or by pillars.
- Stable. Pillars are fused over time, which cuts their scan-to-scan flicker from 37% to 13%. Boxes keep their shape and heading along a track.
- Tracks with velocity and a future. A Kalman filter with GIoU association tracks every object. Moving objects take their heading from their motion and get a 3 s predicted path (constant turn rate and velocity).
- Optional GPU detector. NVIDIA CUDA-CenterPoint (TensorRT) with multi-sweep input adds
class labels and precise boxes:
- recall@1m 0.91 on Argoverse 2 and 0.98 on nuScenes val
- IDF1* 0.86 / 0.88
- 25.5 ms per scan in
fusedmode on an RTX 3090 Ti
- Robust ground segmentation. Patchwork++ plus an elevation-map refinement. Only 5% of object points are lost to the ground on hilly Pittsburgh streets.
- Drop-in for your stack. ROS 1 and ROS 2 nodes, live-tunable parameters, and outputs for
vision_msgs, Autoware (DetectedObjects,PredictedObjects), jsk, nav2 occupancy grids, RViz and Foxglove. - Reproducible. A public benchmark on Argoverse 2 and nuScenes, unit tests, CI on Noetic, Humble and Jazzy, and a one-command pixi setup with no system ROS needed.
# ROS 2 (Humble / Jazzy), in your workspace's src/
git clone https://github.com/SS47816/lidar_obstacle_detector.git && cd ..
rosdep install --from-paths src --ignore-src -r -y && colcon build --cmake-args -DCMAKE_BUILD_TYPE=Release
source install/setup.bash
ros2 launch lidar_obstacle_detector obstacle_detector.launch.py points:=/your/points tracking_frame:=odom rviz:=trueNo ROS installed? pixi run -e jazzy build builds everything, ROS 2 Jazzy included, inside the
repository folder (see Installation).
Two detectors, three ways to combine them (detector_method):
| Mode | Objects (tracked boxes) | Everything else | Needs |
|---|---|---|---|
clustering (default) |
every obstacle, class unknown |
also reported as 2.5D pillars | CPU |
learning |
10 nuScenes classes: car, truck, bus, trailer, construction vehicle, pedestrian, bicycle, motorcycle, barrier, traffic cone | not reported | NVIDIA GPU |
fused |
the 10 classes, each absorbing the clusters that belong to it | 2.5D pillars, untracked | NVIDIA GPU |
Warning
learning only reports what the network was trained on. A fallen tree, a wheelchair or a
shopping trolley is invisible to it. Use fused on a robot that has to stop for them.
fused follows the output model used by production AV stacks: what the network recognises is
tracked and predicted as an object, and what it doesn't is still there as occupied space.
| Argoverse 2, 15 val logs | Recall@1m | Coverage | IDF1* | ID switches | Moving heading err. | Runtime |
|---|---|---|---|---|---|---|
clustering (fast, CPU) |
0.66 | 99.5% | 0.73 | 1,725 | 14° | 10.4 ms |
learning (CenterPoint, 10 sweeps) |
0.91 | 94.7% | 0.86 | 1,024 | 2.4° | 23.7 ms |
fused |
0.91 | 99.0% | 0.86 | 1,034 | 2.4° | 25.5 ms |
Coverage is the share of labelled objects that are reported, either as a box or by pillars in their footprint. Recall@1m counts boxes only.
| ROS 2 topic | Type | Content |
|---|---|---|
~/detections |
vision_msgs/Detection3DArray |
boxes, class, score; id is the track id |
~/objects |
autoware_perception_msgs/DetectedObjects |
boxes with velocity and heading availability |
~/predicted_objects |
autoware_perception_msgs/PredictedObjects |
tracked objects with their 3 s predicted path |
~/pillars |
sensor_msgs/PointCloud2 |
2.5D pillars: x, y, z (top), z_min (ground), observed |
~/occupancy |
nav_msgs/OccupancyGrid |
free / occupied / unknown (ray-cast), for nav2 or costmaps |
~/occupancy_voxels |
sensor_msgs/PointCloud2 |
occupied 3D voxels |
~/markers |
visualization_msgs/MarkerArray |
class models, boxes, ids, velocities, predicted paths, pillars |
~/cloud_ground, ~/cloud_obstacles |
sensor_msgs/PointCloud2 |
segmented input |
Autoware topics are published when autoware_perception_msgs is found at build time. Clouds,
pillars and occupancy are only converted into messages when something subscribes. On ROS 1 the
node publishes the same content as jsk boxes, autoware_msgs/DetectedObjectArray, markers,
pillars and occupancy (see ROS 1).
config/foxglove_layout.json is a ready-made
Foxglove layout: 3D view with models, pillars and paths, the camera, and
the detections. Download the demo recording lidar_obstacle_detector_demo.mcap from the
latest release (the ROS 2 node in clustering mode on an Argoverse 2
drive), open it in app.foxglove.dev (no install needed) and import
the layout. To record your own, run the node with
mesh_uri:=https://raw.githubusercontent.com/SS47816/lidar_obstacle_detector/main/meshes/ so the
models load in the browser.
flowchart LR
A[PointCloud2] --> B["Preprocess<br/>ROI · ego removal · voxel grid"]
B --> C["Ground<br/>Patchwork++ + elevation-map refinement"]
C --> D["Clustering<br/>height-aware BEV grid | adaptive Euclidean"]
A --> N["CenterPoint (GPU, optional)<br/>10 ego-compensated sweeps"]
D --> M{"detector_method"}
N --> M
M --> E["Objects<br/>L-shape boxes | learned boxes"]
M --> P["2.5D pillars<br/>fused over time"]
E --> F["Tracking + prediction<br/>Kalman · Hungarian (GIoU) · CTRV paths"]
F --> G["vision_msgs · Autoware · jsk · markers"]
P --> O["pillars · occupancy grid · voxels"]
| Preset | Ground | Clustering | Boxes | Use it for |
|---|---|---|---|---|
fast (default) |
Patchwork++ | BEV grid | L-shape | most robots and vehicles |
accurate |
Patchwork++ | adaptive Euclidean | L-shape | highest clustering recall, 2–3× the compute |
legacy |
RANSAC | Euclidean | axis-aligned | the classic pipeline; no pillars or occupancy |
Class-agnostic results on 15 Argoverse 2 validation logs (2 × 32-beam lidar, 10 Hz, 2,350 scans) and the 10 nuScenes-mini scenes (32-beam, 20 Hz). The ROI is ±40 m. Objects are vehicles, pedestrians and cyclists with at least 5 lidar points. CPU timings are on one core of an i9-12900K; GPU rows add an RTX 3090 Ti. "*" metrics ignore predictions far from any labelled object, because walls, poles and vegetation are correctly reported but not labelled.
| Dataset | Mode | Recall@1m | [email protected] | Coverage | Under-seg | IDF1* | ID switches | Obj. pts lost to ground | Runtime [ms] |
|---|---|---|---|---|---|---|---|---|---|
| Argoverse 2 | legacy (classic) |
0.53 | 0.42 | 72.7% | 28% | 0.51 | 4,653 | 26% | 30.5 |
| Argoverse 2 | fast |
0.66 | 0.62 | 99.5% | 10% | 0.73 | 1,725 | 5% | 10.4 |
| Argoverse 2 | accurate |
0.70 | 0.63 | 99.5% | 9% | 0.71 | 1,749 | 5% | 32.2 |
| Argoverse 2 | learning (GPU) |
0.91 | 0.91 | 94.7% | 2% | 0.86 | 1,024 | 5% | 23.7 |
| Argoverse 2 | fused (GPU) |
0.91 | 0.91 | 99.0% | 2% | 0.86 | 1,034 | 5% | 25.5 |
| nuScenes mini | legacy (classic) |
0.38 | 0.31 | 58.1% | 9% | 0.57 | 425 | 5% | 6.7 |
| nuScenes mini | fast |
0.42 | 0.36 | 98.3% | 11% | 0.58 | 363 | 6% | 3.4 |
| nuScenes mini | accurate |
0.41 | 0.34 | 98.3% | 8% | 0.57 | 390 | 6% | 6.8 |
| nuScenes val | fast |
0.38 | 0.32 | 99.1% | 17% | 0.55 | 135 | 5% | 3.5 |
| nuScenes val | learning (GPU) |
0.98 | 0.96 | 99.0% | 1% | 0.88 | 77 | 5% | 14.9 |
| nuScenes val | fused (GPU) |
0.98 | 0.96 | 99.8% | 1% | 0.88 | 82 | 5% | 16.0 |
CenterPoint was trained on nuScenes, so on nuScenes it is scored on the two mini val scenes only. On Argoverse 2, a lidar setup and city it has never seen, it is still far ahead of clustering. Multi-sweep input and every other component are ablated in docs/benchmarks.md, which also explains each metric.
The same drive, clustering (left, CPU) vs fused (right, GPU), seen from above.
cd ~/ros2_ws/src
git clone https://github.com/SS47816/lidar_obstacle_detector.git
cd ..
rosdep install --from-paths src --ignore-src -r -y
colcon build --packages-select lidar_obstacle_detector --cmake-args -DCMAKE_BUILD_TYPE=Release
source install/setup.bashcd ~/catkin_ws/src
git clone https://github.com/SS47816/lidar_obstacle_detector.git
cd ..
rosdep install --from-paths src --ignore-src -r -y
catkin_make -DCMAKE_BUILD_TYPE=Release # or: catkin build
source devel/setup.bashpixi installs ROS from RoboStack into the repository folder. It needs no root access and works on any Linux distribution:
pixi run -e jazzy build # ROS 2 Jazzy (colcon), then: pixi shell -e jazzy
pixi run -e noetic build # ROS 1 Noetic (catkin build)
pixi run -e core test # the ROS-agnostic library + unit tests
pixi run -e gpu gpu-test # with CUDA-CenterPoint (NVIDIA driver >= 570)You need an NVIDIA GPU (Ampere or newer, or Jetson Orin), CUDA 11.4–13, TensorRT ≥ 10 and protobuf. Then:
colcon build --packages-select lidar_obstacle_detector --cmake-args -DLOD_WITH_TENSORRT=ONCMake downloads NVIDIA's prebuilt sparse-convolution library and the ONNX models, and checks
their SHA-256. The first run builds a TensorRT engine for your GPU (about a minute) and caches it
in ~/.cache/lidar_obstacle_detector. Set detector_method: fused, and set sensor_height to
your lidar's height above the ground: the network expects nuScenes' mounting height, and the
input is shifted to match. Multi-sweep input needs tracking_frame (e.g. odom). Without a
TensorRT build, the GPU modes are rejected with an error and the node keeps running.
ros2 launch lidar_obstacle_detector obstacle_detector.launch.py points:=/velodyne_points
# options: preset:=fast|accurate|legacy tracking_frame:=odom target_frame:=base_link rviz:=trueEvery parameter can be changed while the node runs, with rqt_reconfigure or
ros2 param set /obstacle_detector cluster_threshold 0.5. The defaults are in
config/obstacle_detector.yaml.
roslaunch lidar_obstacle_detector mai_city.launchTopics are set with the parameters lidar_points_topic, cloud_ground_topic,
cloud_clusters_topic, jsk_bboxes_topic, autoware_objects_topic, markers_topic,
occupancy_topic, occupancy_voxels_topic and pillars_topic. Boxes are published in
bbox_target_frame. Every algorithm parameter is exposed through dynamic_reconfigure.

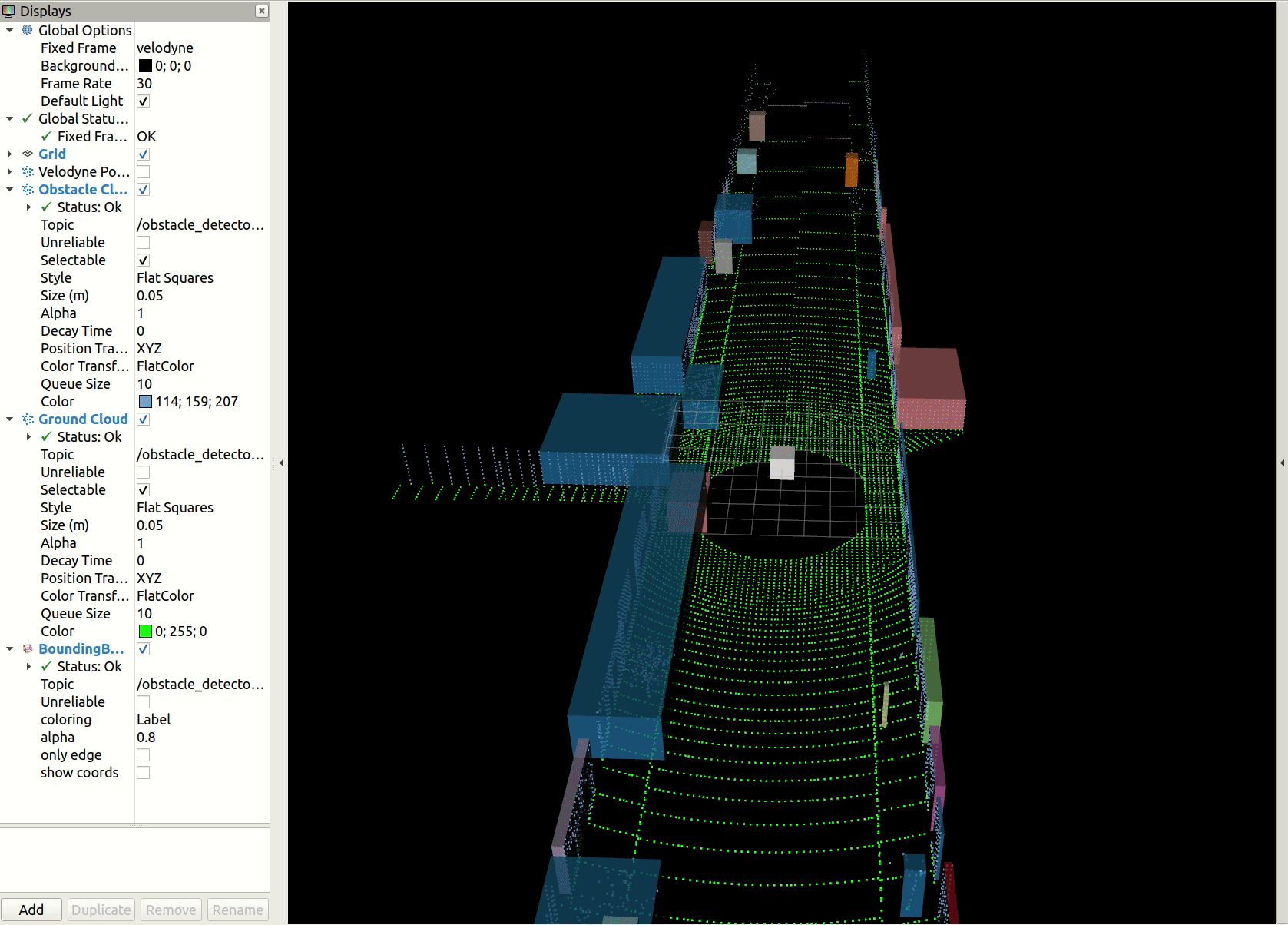

- Download the bags from the MAI City dataset.
- Play them:
- ROS 1:
roslaunch lidar_obstacle_detector mai_city.launch, thenrosbag play 00.bag. - ROS 2: convert the bag first with
pip install rosbags && rosbags-convert --src 00.bag --dst 00, then runros2 launch lidar_obstacle_detector mai_city.launch.pyandros2 bag play 00 --clock.
- ROS 1:
You can also replay Argoverse 2 or nuScenes sequences into ROS 2 with
tools/python/lod_bench/replay_ros2.py (see Reproducing the benchmark).
#include <lidar_obstacle_detector/obstacle_detector.hpp>
using namespace lidar_obstacle_detector;
PipelineConfig cfg = PipelineConfig::preset("fast");
setParameter(&cfg, "detector_method", "fused"); // needs a TensorRT build
ObstacleDetector<pcl::PointXYZI> detector(cfg);
auto result = detector.process(cloud, stamp_seconds, odom_T_lidar);
for (const Box &b : result.boxes) {
// b.id, b.label, b.score, b.center, b.size, b.yaw, b.velocity, b.predicted_path
}
// result.pillars (2.5D), result.occupancy (2D grid), result.occupied_voxelsObstacleDetector::setLearnedDetector() plugs in your own network (any LearnedDetector that
returns labelled boxes). Fusion, tracking, prediction and the ROS outputs then work unchanged.
Every parameter has the same name in ROS 1, ROS 2 and the benchmark CLI. The full list, with ranges, is in core/src/config.cpp. The ones you are most likely to change:
| Parameter | Default | Meaning |
|---|---|---|
detector_method |
clustering |
clustering, learning or fused (see Detector modes) |
tracking_frame |
"" | fixed frame (e.g. odom). Velocities are then absolute, and multi-sweep input and pillar fusion turn on |
sensor_height |
1.73 | lidar height above the ground [m] |
roi_{min,max}_{x,y,z} |
-30/70, ±30, -2.5/1 | region of interest in the lidar frame (x forward, z up) |
ego_{min,max}_{x,y,z} |
box around your vehicle; its points are removed | |
cluster_threshold |
0.6 | max gap between points of one object [m] |
cluster_min_size |
10 | minimum points per obstacle |
pillar_memory |
2.0 | how long pillars are remembered when occluded [s] (0 = this scan only) |
prediction_horizon |
3.0 | length of predicted paths [s] (0 = off) |
occupancy_min_height, occupancy_max_height |
0.2, 2.5 | height band above the local ground that counts as occupied [m] |
Tuning for your lidar. With sparse sensors (32 beams or fewer, e.g. nuScenes), use
cluster_min_size: 5 and cluster_range_gain: 0.04 to keep small and distant objects. On
nuScenes this raises recall@1m from 0.42 to 0.55 (fast) and from 0.41 to 0.57 (accurate).
With dense 64- or 128-beam sensors, keep the
defaults. For many long trucks in clustering mode, try cluster_track_guided: true: it cuts
split trucks by a quarter, at a small cost in recall (see
docs/benchmarks.md).
pixi run -e core build
# Argoverse 2 (no account needed) and nuScenes (free account) -> common format
pixi run -e core python -I tools/python/lod_bench/prepare_av2.py --root ~/datasets/av2/sensor/val --out ~/datasets/lod_bench/av2
pixi run -e core python -I tools/python/lod_bench/prepare_nuscenes.py --root ~/datasets/nuscenes --out ~/datasets/lod_bench/nuscenes
# run + evaluate a preset (--set key=value to change parameters)
pixi run -e core python -I tools/python/lod_bench/run.py --data ~/datasets/lod_bench/av2 --runs ~/datasets/lod_bench/runs --name fast --preset fastThe demo videos are rendered with tools/python/lod_bench/render_showcase.py (map, camera and
models) and render_demo.py (chase camera, bird's-eye comparison).
- ROS 2 support, multi-object tracking with velocities, L-shape boxes, Patchwork++
- Occupancy grid and 2.5D pillars fused over time
- NVIDIA CUDA-CenterPoint with multi-sweep input, and
fusedmode - Trajectory prediction (CTRV) with Autoware
PredictedObjects - Map-aware prediction (lane following)
- NVIDIA CUDA-PointPillars as a second learned backend
- Release on the ROS buildfarm (
apt install ros-<distro>-lidar-obstacle-detector) - Python bindings
- Motion undistortion of rotating lidar scans
The previous ROS 1-only release is still available at the
v1-ros1-legacy tag. See the changelog for
everything in 2.0.
Issues, discussions and pull requests are welcome; see CONTRIBUTING.md. If lidar_obstacle_detector is useful to you, a ⭐ helps others find it.
If you use this package, please cite it (see CITATION.cff). Please also cite Patchwork++ (Lee et al., IROS 2022), L-shape fitting (Zhang et al., IV 2017) and, for the GPU modes, CenterPoint (Yin et al., CVPR 2021).
MIT, see LICENSE. Vendored code: Patchwork++ (third_party/patchworkpp, BSD-2-Clause) and NVIDIA CUDA-CenterPoint (third_party/cuda_centerpoint, MIT).
