An energy-based formulation for soft-bodied virtual creatures
| Date | Stars |
|---|---|
| 2026-07-25 | 342 |
| 2026-07-28 | 342 |
| 2026-07-30 | 342 |
| 2026-08-06 | 342 |
Today
— stars today
This week
— stars this week
This month
— stars this month
Momentum
0.0
growth rate 0.00%/day
# algovivo
<p>
<a href="https://github.com/juniorrojas/algovivo/actions/workflows/test.yml">
<img src="https://github.com/juniorrojas/algovivo/actions/workflows/test.yml/badge.svg" alt="Test">
</a>
<a href="https://deepwiki.com/juniorrojas/algovivo">
<img src="https://deepwiki.com/badge.svg" alt="Ask DeepWiki">
</a>
</p>
An energy-based formulation for soft-bodied [virtual creatures](https://direct.mit.edu/isal/proceedings/isal2024/36/30/123447).

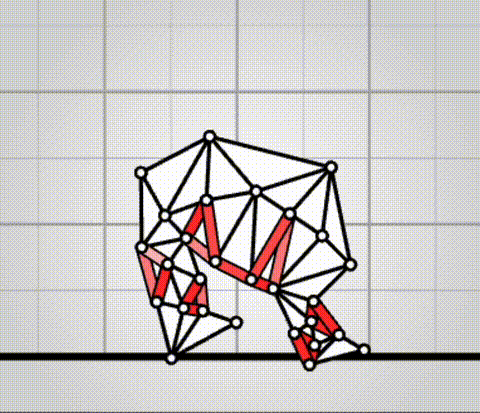

## [interactive demo](https://juniorrojas.com/algovivo)
<a href="https://juniorrojas.com/algovivo">
<img src="media/locomotion.gif" width="250px">
</a>
Instead of implementing simulations using explicit position update rules and manually derived force functions, we can implement simulations using [gradient-based optimization on differentiable energy functions](https://medium.com/@juniorrojas/physics-based-simulation-via-backpropagation-on-energy-functions-6d3b0e93f5fb) and compute forces and other derivatives using automatic differentiation. Automatic differentiation can be used for [potential energy minimization](https://github.com/juniorrojas/hookean-springs-pytorch) and [numerical integration](https://github.com/juniorrojas/springs-integration-pytorch).
This repository implements six energy functions: neo-Hookean triangles, controllable muscles, gravity, terrain collision, friction, and inertia (for backward Euler integration). The energy functions are implemented in C++ (with some parts [automatically generated from Python](codegen)) and differentiated with [Enzyme](https://github.com/EnzymeAD/Enzyme). Additional functionality, including the optimization loop, is implemented in C++, compiled to WebAssembly, and wrapped as a JavaScript library.
## quick start

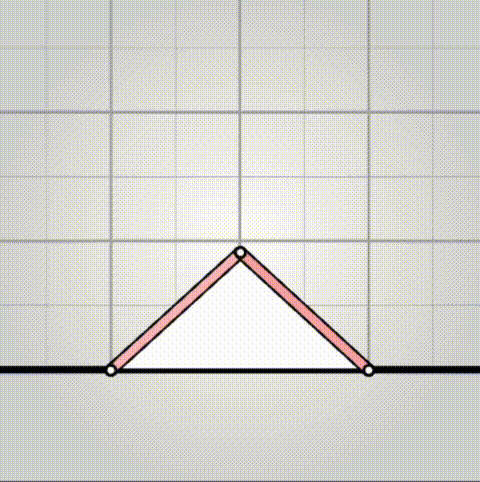

You can create a simple simulation with one triangle and two muscles, where one muscle is controlled by a periodic signal, with the following HTML code.
<img src="media/periodic.gif" width="250px">
```html
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
</head>
<body>
<script type="module">
import * as algovivo from "https://cdn.jsdelivr.net/gh/juniorrojas/algovivo@d457bbc/build/algovivo.min.js";
async function loadWasm() {
const response = await fetch("https://cdn.jsdelivr.net/gh/juniorrojas/algovivo@d457bbc/build/algovivo.wasm");
const wasm = await WebAssembly.instantiateStreaming(response);
return wasm.instance;
}
async function main() {
const system = new algovivo.System({
wasmInstance: await loadWasm()
});
system.set({
pos: [
[0, 0],
[2, 0],
[1, 1]
],
triangles: [
[0, 1, 2]
],
muscles: [
[0, 2],
[1, 2]
]
});
const viewport = new algovivo.SystemViewport({ system });
document.body.appendChild(viewport.domElement);
viewport.render();
let t = 0;
setInterval(() => {
system.a.set([
1,
0.2 + 0.8 * (Math.cos(t * 0.1) * 0.5 + 0.5)
]);
t++;
system.step();
viewport.render();
}, 1000 / 30);
}
main();
</script>
</body>
</html>
```
The code above imports the ES6 module `algovivo.min.js` and loads the compiled WASM `algovivo.wasm` from [jsDelivr](https://www.jsdelivr.com/). To serve these files from your own server, you can download them from the [build](https://github.com/juniorrojas/algovivo/tree/build/build) branch.
### muscle commands
Muscle commands can be specified with `system.a.set([...])`. The array length must match the number of muscles. A value of 1 means that the muscle is relaxed and wants to keep its original rest length. Values less than 1 indicate that the muscle wants to contract to some fraction of its original rest length.

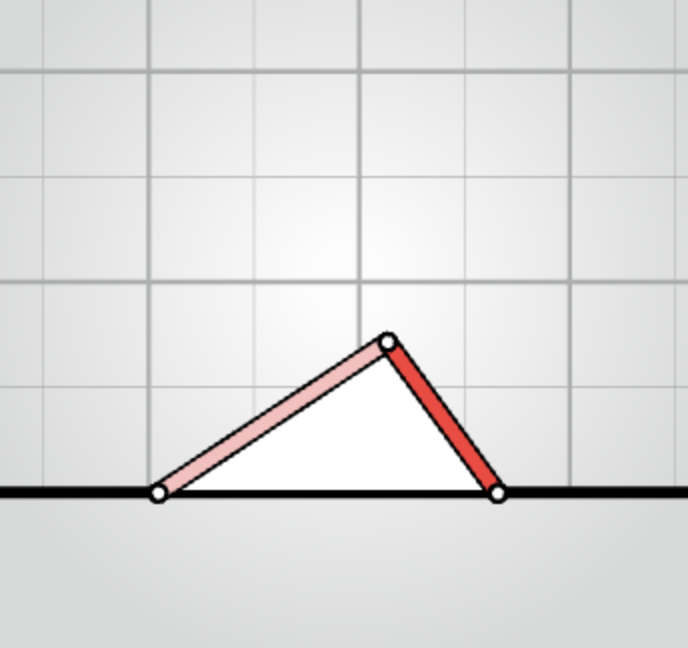

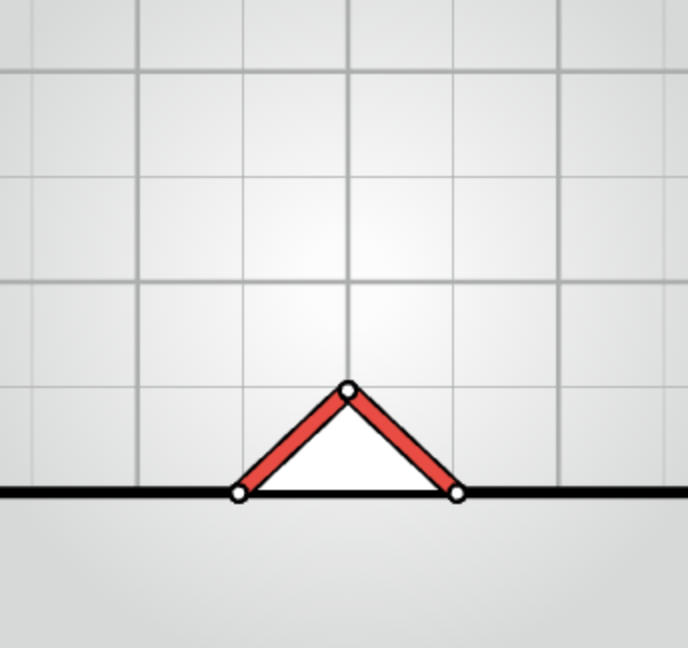

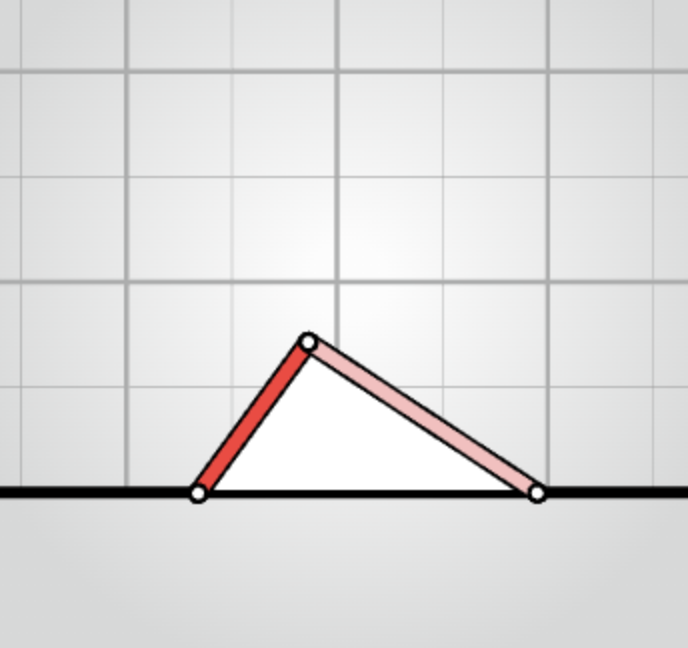

| `system.a.set([0.3, 1])` | `system.a.set([1, 0.3])` | `system.a.set([0.3, 0.3])` |
| ------------- |-------------| -----|
| <div align="center"><img src="media/muscle-contraExcerpt of 6,745 characters
